AC Compressor Assy 38800-PH3-013, 38800PH3013 for Honda Accord
OE 38800-PH3-013, 38800PH3013
FIVER AUTOPARTS CO.,LTD
Products A/C compressor
BMW E60 A/C Compressor 64526917859 64509174802 — aftermarket A/C compressor supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03


Characters of products from fivercompressor.com
Precision machined ports for OE hose fitment.
Internal pistons are PTFE surface treated for longlife durability;
Robotic weldding for precise and consistent quality;
Internal valves are engineered with light weight aluminum alloy for optimize cooling;
OE connectors are available for most applications, no need reposition or splice wiring during installations;
Beering structured to withstand tension and stree for maximum durability.

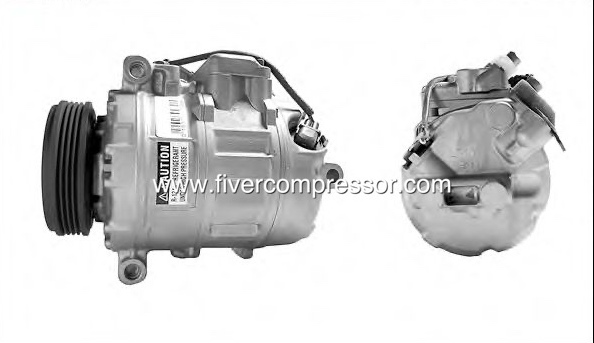

Part Name: Auto air conditioning compressor
OE : 447190-3776/64526956715 / 447190-3770/447150-0150/64526956716/9174803/64529174803/64526933174-04/64526932176/64526918753/6918753/64509174803
Compressor type: 7SEU17C
Clutch info:110mm 6PK ELECTRONIC CONTROL VALVE
Oil type : PAG 46
Oil Quantity : 180ml
Applications:
| 5 (E60) 520 i | 07.2003 - 03.2010 | Saloon |
| 5 (E60) 530 i | 07.2003 - 03.2010 | Saloon |
| 5 (E60) 530 d | 07.2003 - 03.2010 | Saloon |
| 5 (E60) 525 i | 09.2003 - 03.2010 | Saloon |
| 5 Touring (E61) 525 i | 06.2004 - 12.2010 | Estate |
| 5 (E60) 525 d | 06.2004 - 03.2010 | Saloon |
| 7 (E65, E66, E67) 730 i,Li | 03.2003 - 07.2008 | Saloon |
| 5 (E60) 535 d | 09.2004 - 03.2010 | Saloon |
| 5 (E60) 530 d | 07.2003 - 03.2010 | Saloon |
| 5 (E60) 530 xd | 07.2005 - 03.2010 | Saloon |
| 3 Coupe (E92) 335 d | 09.2006 - 12.2013 | Coupe |
| 3 Touring (E91) 335 d | 09.2006 - 06.2012 | Estate |
| 5 (E60) 525 d | 12.2004 - 03.2010 | Saloon |
| 5 (E60) 535 d | 01.2007 - 03.2010 | Saloon |
| 5 (E60) 530 xd | 01.2007 - 03.2010 | Saloon |
| 5 (E60) 525 xd | 01.2007 - 03.2010 | Saloon |
§ 04
OE 38800-PH3-013, 38800PH3013
OE 38800P00K01, 38810-P07-014, 38810-P07-024
OE 38800-PH3-003, 38800PH3003
OE 38800-PH1-003, 38800PH1003
