AC Compressor Assy 38800-PH3-013, 38800PH3013 for Honda Accord
OE 38800-PH3-013, 38800PH3013
FIVER AUTOPARTS CO.,LTD
Products A/C compressor
Automotive A/C Compressor 1131880/1134328/1134302 for CHEVROLET Pick Up — aftermarket A/C compressor OE GMT400 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03

Characters of products from fivercompressor.com
Precision machined ports for OE hose fitment.
Internal pistons are PTFE surface treated for longlife durability;
Robotic weldding for precise and consistent quality;
Internal valves are engineered with light weight aluminum alloy for optimize cooling;
OE connectors are available for most applications, no need reposition or splice wiring during installations;
Bearings structured to withstand tension and stress for maximum durability.

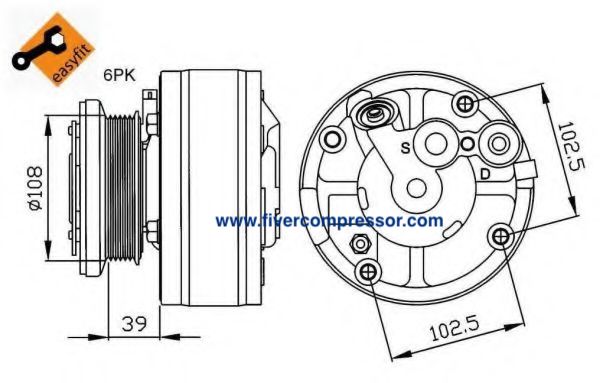

Part Name: A/C Compressor
Compressor Type: R4
Clutch info: 109mm 1A
Applications:
| C1500 Pickup 4.3 | 10.1991 - 09.1996 | Pickup |
| S10 Pick Up 4.3 AWD | 10.1987 - 09.1991 | Pickup |
| S10 Pickup 4.3 AWD | 10.1994 - 09.1995 | Pickup |
| TAHOE (GMT400) 5.7 AWD | 10.1994 - 09.1995 | Closed Off-Road Vehicle |
| BLAZER S10 4.3 AWD | 10.1994 - 09.1995 | Closed Off-Road Vehicle |
| SUBURBAN 5.7 | 10.1991 - 09.1996 | Closed Off-Road Vehicle |
| SUBURBAN 5.7 AWD | 10.1991 - 09.1996 | Closed Off-Road Vehicle |
| ROADMASTER Estate 5.0 | 10.1990 - 09.1992 | Estate |
