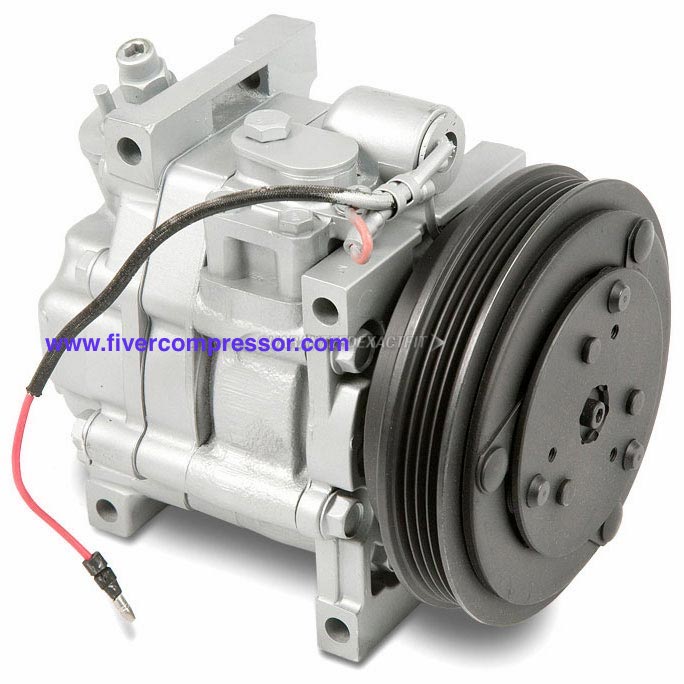

Honda A/C compressor

Type MATSUSHITA Air Conditioner Compressor 38810PM3013,38810-PM3-013 for Honda Civic 1988-1991 for Honda CRX 1988-1991 4PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Honda MATSUSHITA A/C compressor

Air Conditioner Compressor 38810PM3013,38810-PM3-013 for Honda Civic 1988-1991 for Honda CRX 1988-1991

OE / Part number
38800PM3J04, 38800PM9A01, 38810PM3013, 38810-PM3-013, 38810PM3016, 38810-PM3-016

Air Condition Compressor for Honda Civic; Honda CRX A/C Compressor ; Auto Air Conditioning Compressor

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeMATSUSHITA
Pulley Groove4PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeMATSUSHITA
Pulley Groove4PK
Coil Voltage12V
OE / Part number38800PM3J04, 38800PM9A01, 38810PM3013, 38810-PM3-013, 38810PM3016, 38810-PM3-016
ApplicationApplications: HONDA

§ 04

Product details

Air Conditioner Compressor 38810PM3013,38810-PM3-013 for Honda Civic 1988-1991 for Honda CRX 1988-1991

Specifications
Clutch IncludedIncluded
Clutch Maximum Diameter5.250 in
Coil Clock Position1 Wire Lead
Coil Voltage12 2H
Compatible Refrigerant Oil TypePAG 46
Compressor TypeNL1302AD4
Discharge Port TypeO-Ring
Distance From Clutch To Mounting Flange1.000 in
Mounting Hardware?Not Included
Mounting TypeEar Mount
New or RemanRemanufactured
O-Ring A Number/Desc[24608] / Green O-Ring
O-Ring A Quantity1
O-Ring B Number/Desc[24610] / Green O-Ring
O-Ring B Quantity1
Oil FilledYes
Pulley Belt TypeSerpentine
Pulley Diameter MM133.350 MM
Pulley Groove Quantity4
Pulley Lip Diameter5.250 in
Pulley Ridge Diameter5.250 in
Refrigerant TypeR134a
Suction Port TypeO-Ring
Terminal TypeSpade
TypeMatsushita/Panasonic


Applications:
HONDACIVIC1988-1991
HONDACIVIC DEL SOL1993
HONDACRX1988-1991

Year

Make

Model

Engine

1991

HONDA

CIVIC

All Engines

1990

HONDA

CIVIC

All Engines

1989

HONDA

CIVIC

All Engines

1988

HONDA

CIVIC

All Engines

1991

HONDA

CRX

All Engines

1990

HONDA

CRX

All Engines

1989

HONDA

CRX

All Engines

1988

HONDA

CRX

All Engines


OE: 38800PM3J04,38800PM9A01,38810-PM3-013,38810-PM3-016,38810PM3013,38810PM3016
