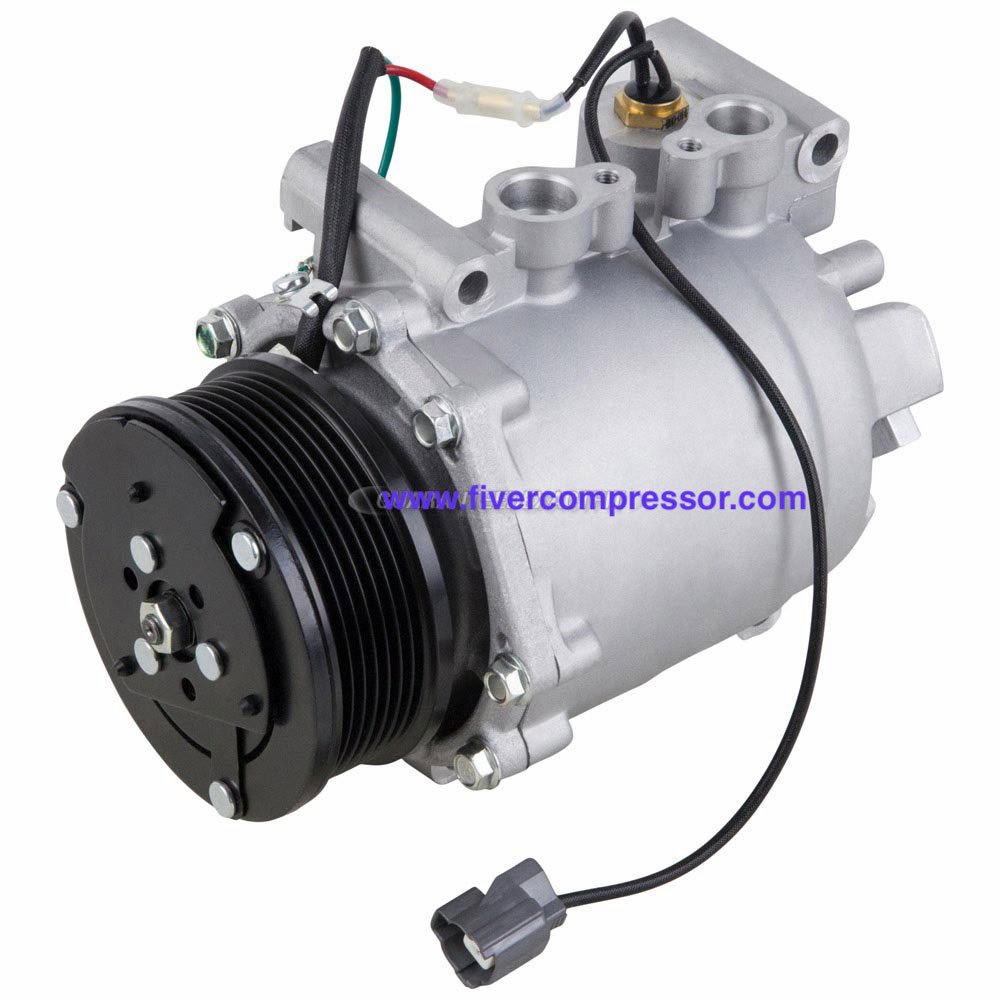

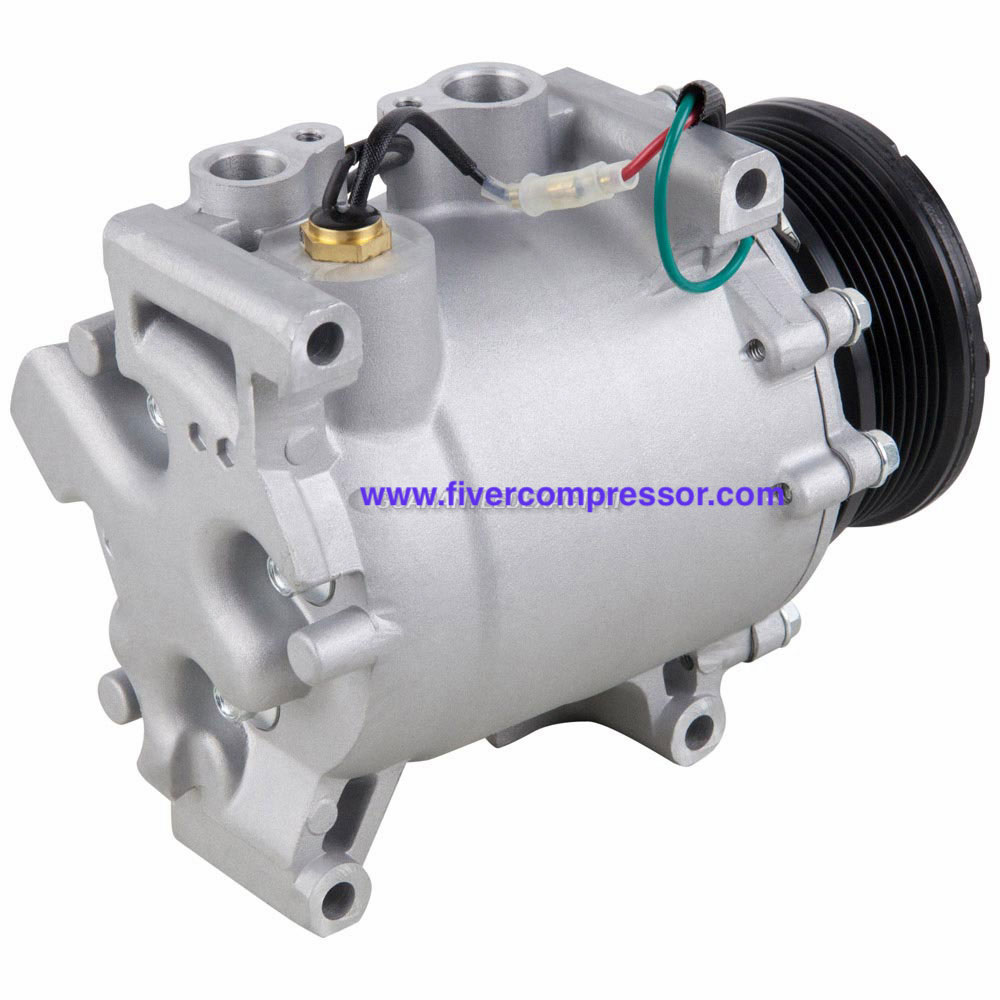

AC Compressor Assy 38800-PH3-013, 38800PH3013 for Honda Accord
OE 38800-PH3-013, 38800PH3013
FIVER AUTOPARTS CO.,LTD
Honda A/C compressor
7PK · 12V
Acura RSX Type-S A/C Compressor; air condition compressor for Honda Civic Si 2002-2005; A/C Compressor manufacturer China
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04
Acura RSX Type-S 2.0L 2002-2006 A/C Compressor Replacement Denso HS090R Honda Civic SI 2002-2005 2.0L Air Conditioning Compressor 38810PND006, 38810PRA006

| Specifications | |
|---|---|
| Clutch Included | Included |
| Clutch Maximum Diameter | 3.875 in |

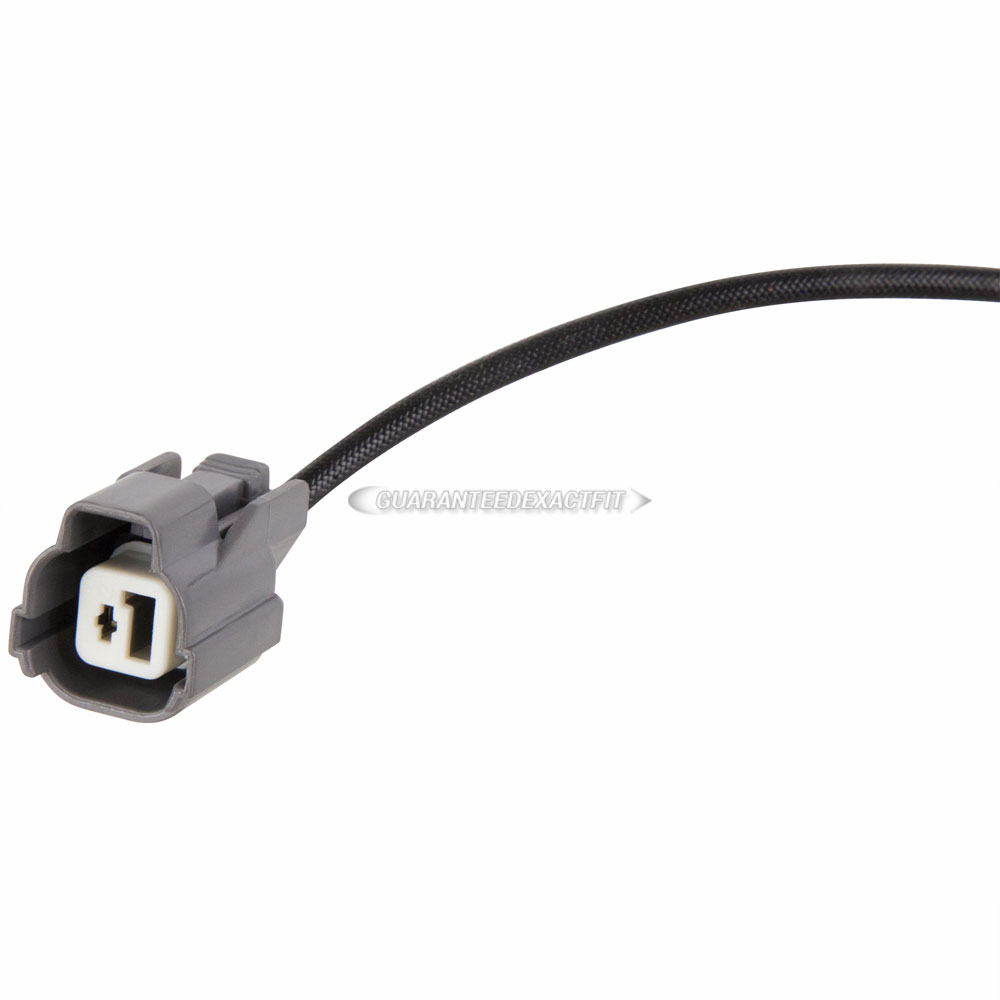

| Coil Clock Position | 1 Wire Lead |
| Coil Voltage | 12 2H |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | HS090 |
| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 1.300 in |
| Mount Distance MM | 33.020 mm |
| Mounting Hardware? | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | New |
| O-Ring A Number/Desc | [24681] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24661] / Green O-Ring |
| O-Ring B Quantity | 1 |
| Oil Filled | Yes |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 98.425 MM |
| Pulley Groove Quantity | 7 |
| Pulley Lip Diameter | 3.875 in |
| Pulley Ridge Diameter | 3.875 in |
| Refrigerant Type | R134a |
VEHICLE FITMENT
| 2006 | Acura | RSX | Base, Type-S | 2.0L L4 - Gas |
| 2005 | Acura | RSX | Base, Type-S | 2.0L L4 - Gas |
| 2004 | Acura | RSX | Base, Type-S | 2.0L L4 - Gas |
| 2003 | Acura | RSX | Base, Type-S | 2.0L L4 - Gas |
| 2002 | Acura | RSX | Base, Type-S | 2.0L L4 - Gas |
| 2005 | Honda | Civic | Si | 2.0L L4 - Gas |
| 2004 | Honda | Civic | Si | 2.0L L4 - Gas |
| 2003 | Honda | Civic | Si | 2.0L L4 - Gas |
| 2002 | Honda | Civic | Si | 2.0L L4 - Gas |
Alternate/OEM Part Number(s): 38810PND006, 38810PRA006,38810-PND-006, 38810-PRA-006
§ 05
OE 38800-PH3-013, 38800PH3013
OE 38800P00K01, 38810-P07-014, 38810-P07-024
OE 38800-PH3-003, 38800PH3003
OE 38800-PH1-003, 38800PH1003
