FIVER FIVER AUTOPARTS CO.,LTD — Chongqing

FIVER AUTOPARTS CO.,LTD

Honda A/C compressor

Type DKV14G AC Compressor Replacement For Isuzu Rodeo Trooper Amigo Vehicross Axiom 1999-2004 & Honda Passport 2001-2002 DKV14G 6 Grooves 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

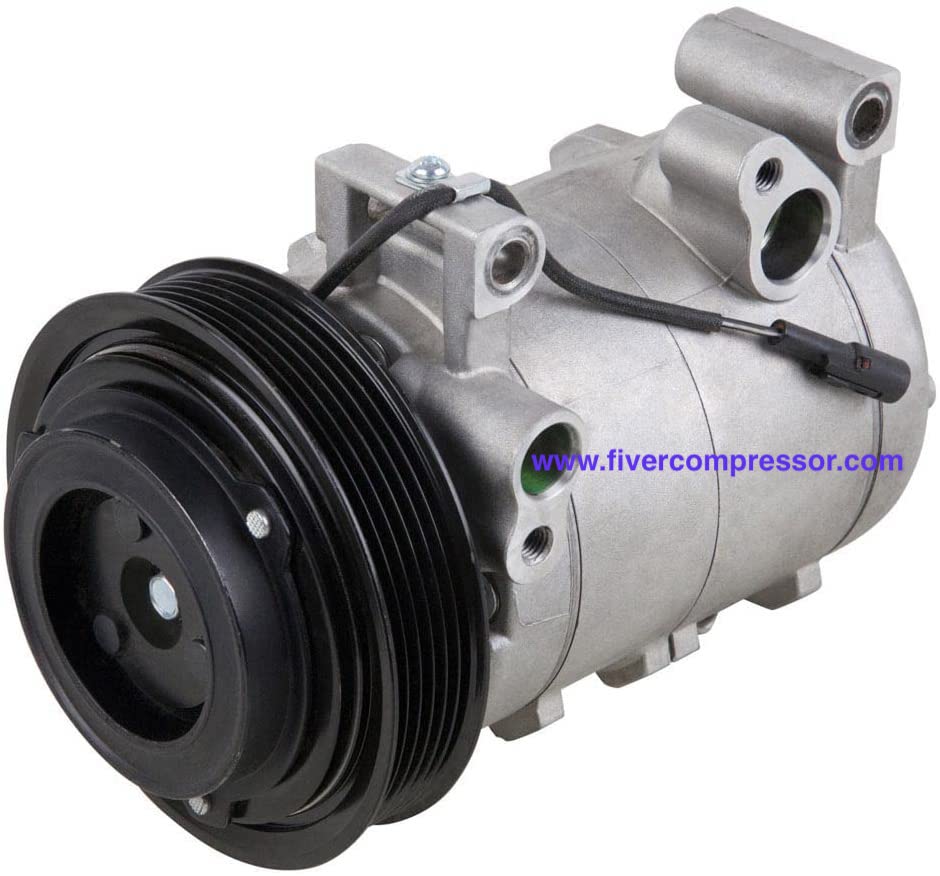

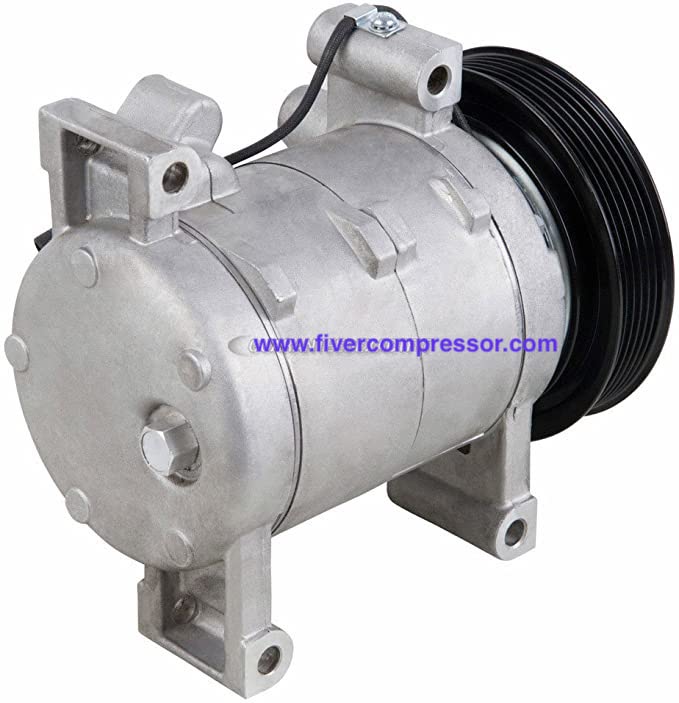

Honda DKV14G A/C compressor

AC Compressor Replacement For Isuzu Rodeo Trooper Amigo Vehicross Axiom 1999-2004 & Honda Passport 2001-2002 DKV14G 6 Grooves

OE / Part number
897287641-2, 897302176-0, DKV14G, 8972876412, 8973021760

AC Compressor for Honda Passport 2001-2002; AC Compressor for Isuzu Rodeo; AC Compressor for Isuzu Trooper

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeDKV14G
Pulley Groove6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeDKV14G
Pulley Groove6PK
Coil Voltage12V
OE / Part number897287641-2, 897302176-0, DKV14G, 8972876412, 8973021760

§ 04

Product details

AC Compressor Replacement For Isuzu Rodeo Trooper Amigo Vehicross Axiom 1999-2004 & Honda Passport 2001-2002 DKV14G 6 Grooves

Specifications
Compressor MountDirect
Discharge Port (MM)15.5
Gauge Line (MM)41
Grooves6
Pulley Diameter (MM)125
Suction Port (MM)21
Voltage12


VEHICLE FITMENT

HONDAPASSPORT1998-2002
ISUZUAMIGO1999-2000
ISUZUAXIOM2002-2004
ISUZURODEO1999-2004
ISUZURODEO SPORT2001-2003
ISUZUTROOPER2002


Alternate/OEM Part Number(s): 8972876412, 8973021760
