AC Compressor 8831006570, 883100E140, 883100E141 for Lexus NX200T, NX300 and Toyota RAV4 — aftermarket A/C compressor OE 8831006570 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03

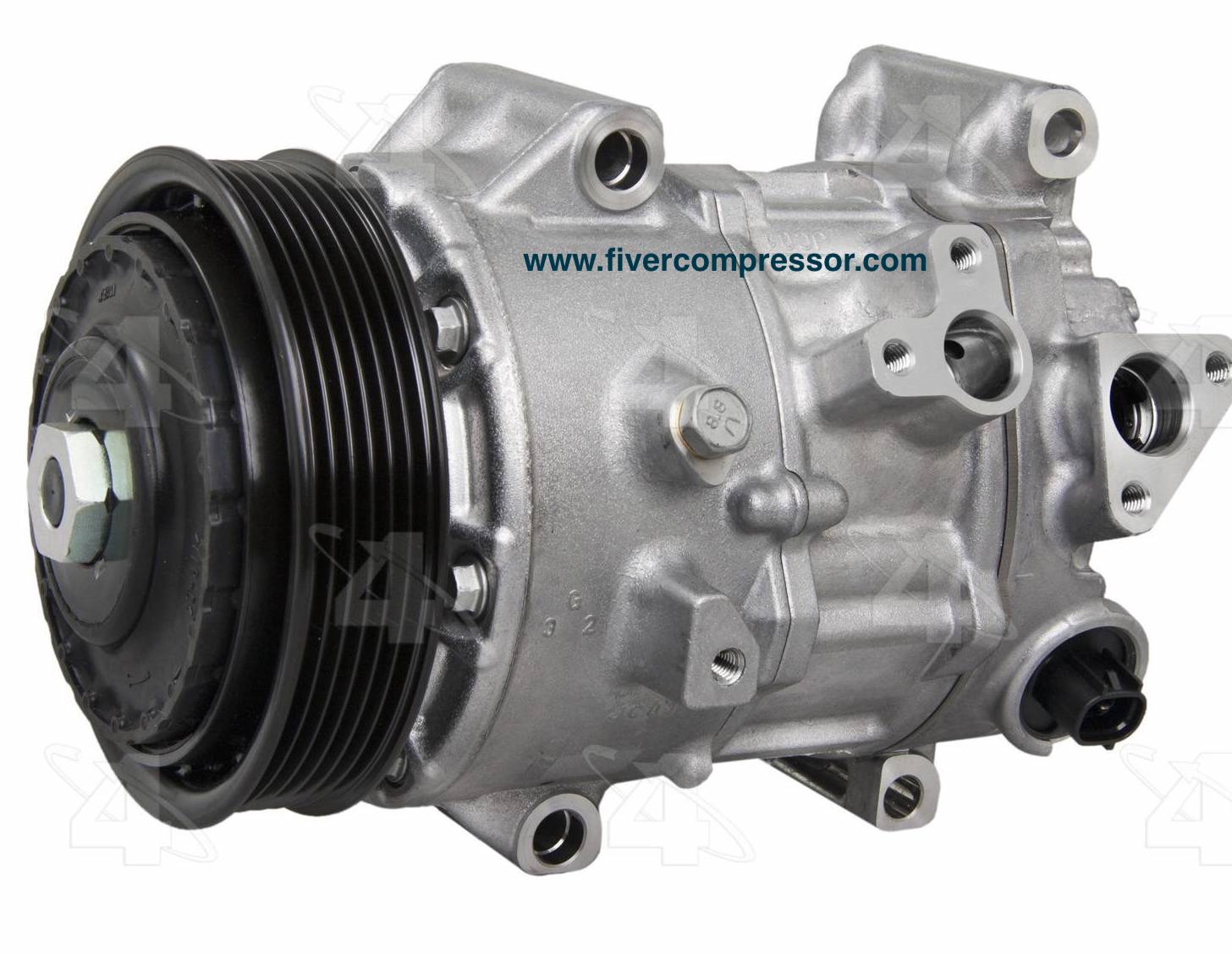

AC Compressor 8831006570, 883100E140, 883100E141 for Lexus NX200T, NX300 and Toyota RAV4

Applications:
| LEXUS | NX200T. AGZ10/AGZ15 | 2015-2017 |
| LEXUS | NX300 | 2018-2020 |
| LEXUS | NX300H | 2018-2020 |
| TOYOTA | CAMRY | 2018-2020 |
| TOYOTA | HIGHLANDER ASU50 | 2014-2019 |
| TOYOTA | RAV4. ASA42/ ASA44/AXVA70 | 2013-2020 |
Specifications:
| Clutch Included | Yes |
| Clutch Maximum Diameter (IN) | 4.734375 |
| Coil Clock Position | Wire Lead |
| Coil Type | 7 MM Pin |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | 7SES17C |
| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange (IN) | 1.625 |
| ECV Harness Connector | SE10F, 26984 Female / / SE10M, 26878 Male |
| Mount Distance (MM) | 41.402 |
| Mounting Hardware? | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | New |
| O-Ring A Number/Desc | [24681] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24661] / Green O-Ring |
| O-Ring B Quantity | 1 |
| Printed Foot Note | May Require use of OE Manifold |
| Pulley Belt Type | Serpentine |
| Pulley Diameter (MM) | 120.142 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter (IN) | 4.734375 |
| Pulley Outside Diameter (IN) | 4.734375 |
| Pulley Ridge Diameter (IN) | 4.734375 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |
| Terminal Type | Pin |
| Type | Nippondenso |
| Alternate/OEM Part Number(s): 8831006570, 883100E140, 883100E141, 883100R040, 883100R041, 8831033330, 8831042380, 8831042530, 8831042531, 8831078010, 8831078011, 8832042150 |
§ 04
OE 38800-PH3-013, 38800PH3013
OE 38800P00K01, 38810-P07-014, 38810-P07-024
OE 38800-PH3-003, 38800PH3003
OE 38800-PH1-003, 38800PH1003
