Honda A/C compressor

Type TRS090 Brand New TRS090 4PK Car A/C Compressor 38800P28A02 38800-P06-A02 38800-P28-A02 for Acura EL 1997-2002 for Honda CR-V 1997-2001 for Honda… 4PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

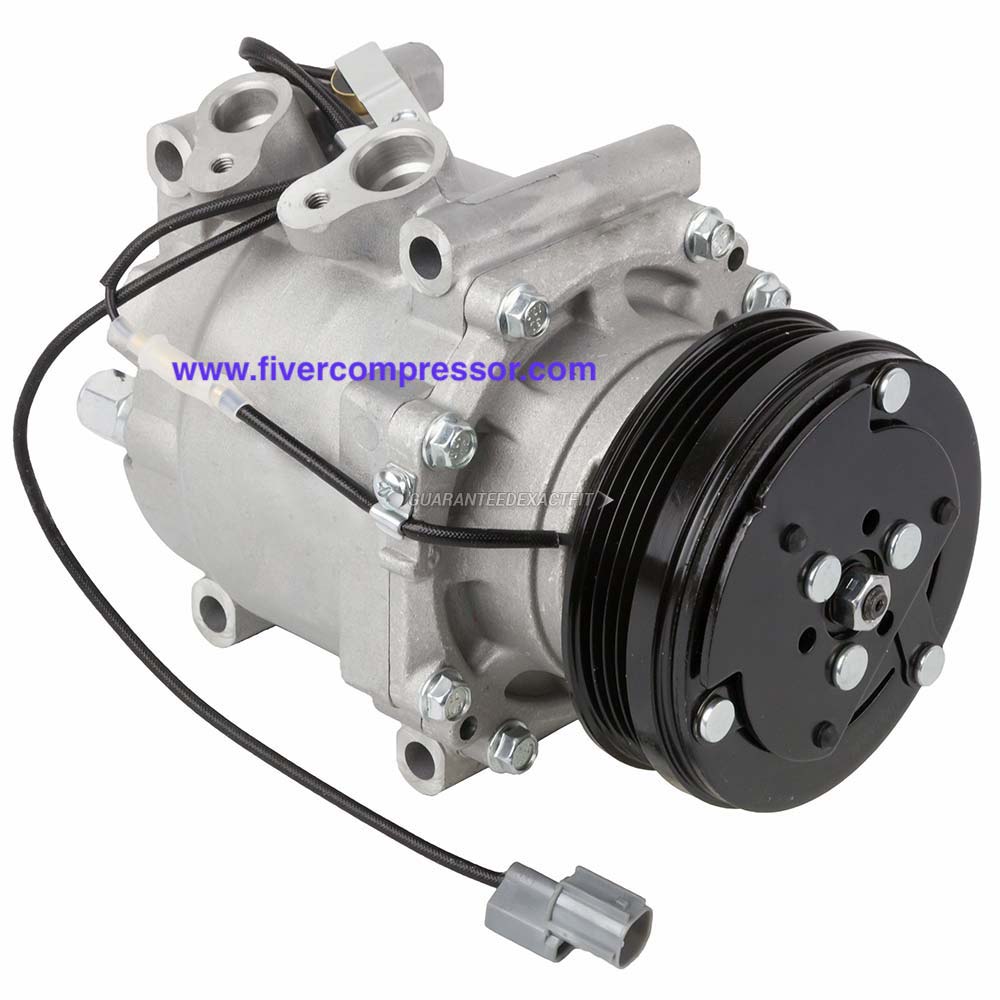

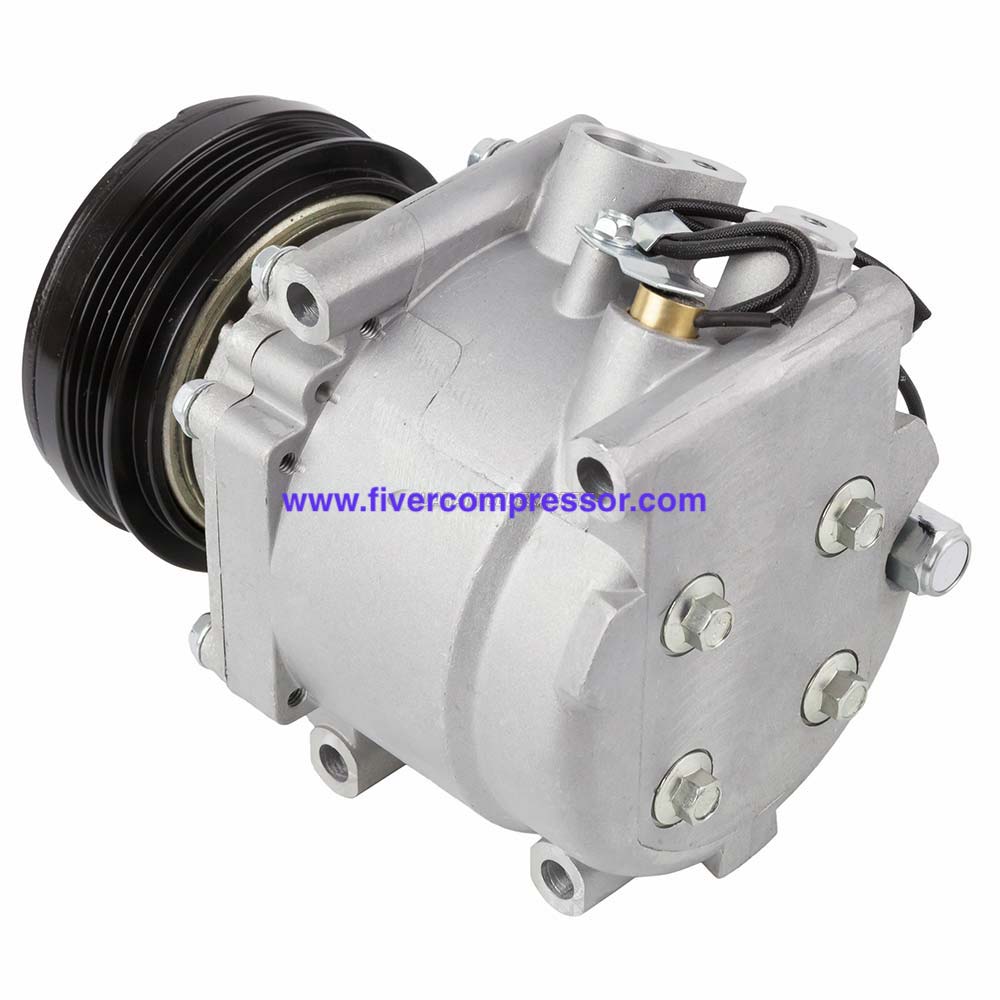

Honda TRS090 A/C compressor

Brand New TRS090 4PK Car A/C Compressor 38800P28A02 38800-P06-A02 38800-P28-A02 for Acura EL 1997-2002 for Honda CR-V 1997-2001 for Honda Civic 1994-2000 for Honda Civic Del Sol 1994-1995

OE / Part number
254416, 275516, 38810P06A04, 38810P06A05, 38810P06A06, 38810P2FA01, 38810P3F006, 38810P3F016, 38810P76006, 38810P76016, 4717050

Auto Air Conditioning Compressor for Honda CR-V; A/C Compressor Acura EL;AC Compressor With AC Clutch;Auto Air Conditioning Parts

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeTRS090
Pulley Groove4PK

Clutch and fitment

Coil Voltage12V
model38800P28A02 38800-P06-A02 38800-P28-A02

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeTRS090
Pulley Groove4PK
Coil Voltage12V
model38800P28A02 38800-P06-A02 38800-P28-A02
OE / Part number254416, 275516, 38810P06A04, 38810P06A05, 38810P06A06, 38810P2FA01, 38810P3F006, 38810P3F016, 38810P76006, 38810P76016, 4717050
ApplicationApplications: 1994 Honda Civic All Models

§ 04

Product details

Brand New TRS090 4PK Car A/C Compressor 38800P28A02 38800-P06-A02 38800-P28-A02 for Acura EL 1997-2002 for Honda CR-V 1997-2001 for Honda Civic 1994-2000 for Honda Civic Del Sol 1994-1997

Specifications
Refrigerant Type R134a
Clutch Maximum Diameter 106.0 MM
Compressor Mount Hole Quantity 4
Pulley Belt Type Serpentine 4PK
Mounting Type Bolt Tangent
Applications:

1994 Honda Civic All Models
1995 Honda Civic All Models
1996 Honda Civic All Models
1997 Honda Civic All Models
1998 Honda Civic All Models

1999 Honda Civic All Non Si Models

2000 Honda Civic All Non Si Models

1994 Honda Civic Del Sol All Models

1995 Honda Civic Del Sol All Models

1996 Honda Civic Del Sol All Models

1997 Honda Civic Del Sol All Models

1997 Honda CR-V All Models

1998 Honda CR-V All Models

1999 Honda CR-V All Models

2000 Honda CR-V All Models

2001 Honda CR-V All Models


Alternate/OEM Part Number(s): 254416, 275516, 38810P06A04, 38810P06A05, 38810P06A06, 38810P2FA01, 38810P3F006, 38810P3F016, 38810P76006, 38810P76016,DENSO 4717050
