Products A/C compressor

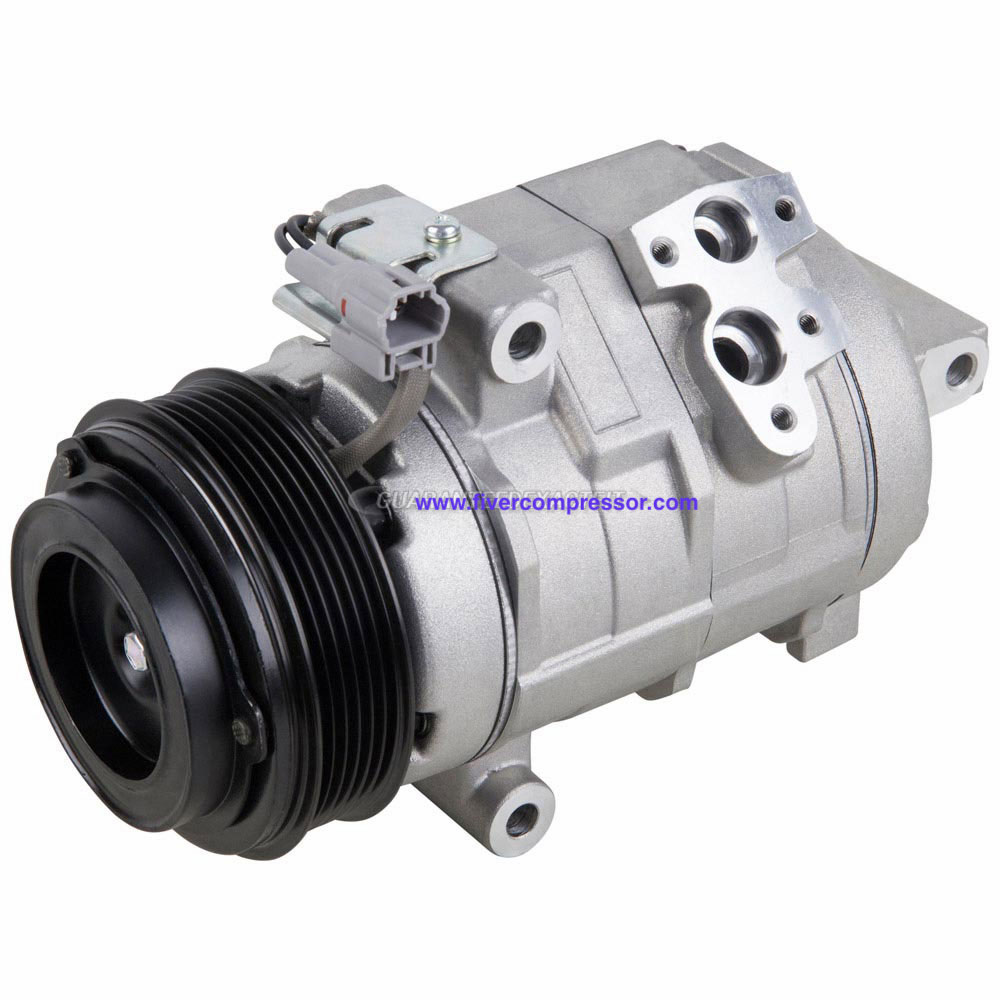

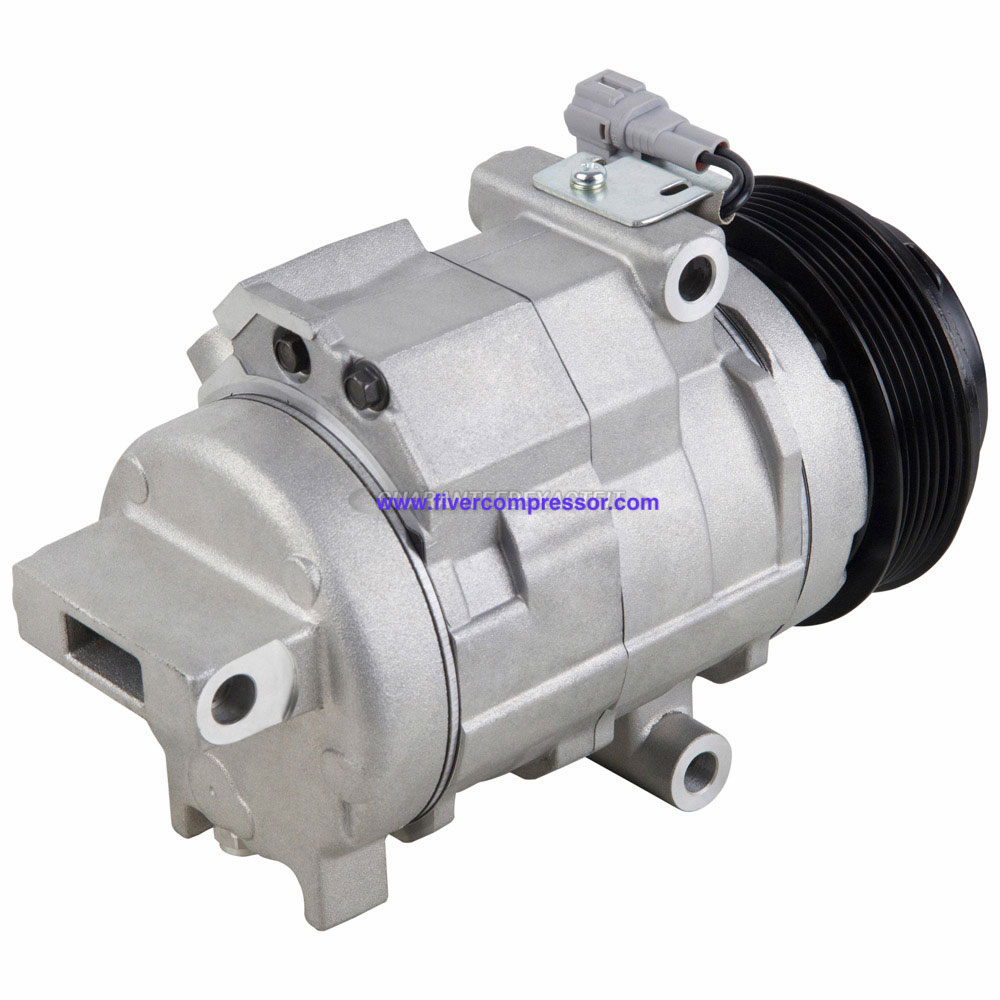

Type 10S20C 2007-2015 Mazda CX-9 Auto A/C Compressor TD1561450A, TD1561K00 Model 10S20C 6 Grooves 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Products 10S20C A/C compressor

2007-2015 Mazda CX-9 Auto A/C Compressor TD1561450A, TD1561K00 Model 10S20C 6 Grooves

OE / Part number
TD1561450A, TD1561K00, 158320, 7T4Z19703A, 8T4Z19703A, BT4Z19703A

Auto AC Compressor for Mazda CX-9; Mazda CX-9 A/C Compressor; Auto A/C compressor supplier

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type10S20C
Pulley Groove6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type10S20C
Pulley Groove6PK
Coil Voltage12V
OE / Part numberTD1561450A, TD1561K00, 158320, 7T4Z19703A, 8T4Z19703A, BT4Z19703A

§ 04

Product details

2007-2015 Mazda CX-9 Auto A/C Compressor TD1561450A, TD1561K00 Model 10S20C 6 Grooves

Specifications
Clutch IncludedIncluded
Clutch Maximum Diameter4.500 in

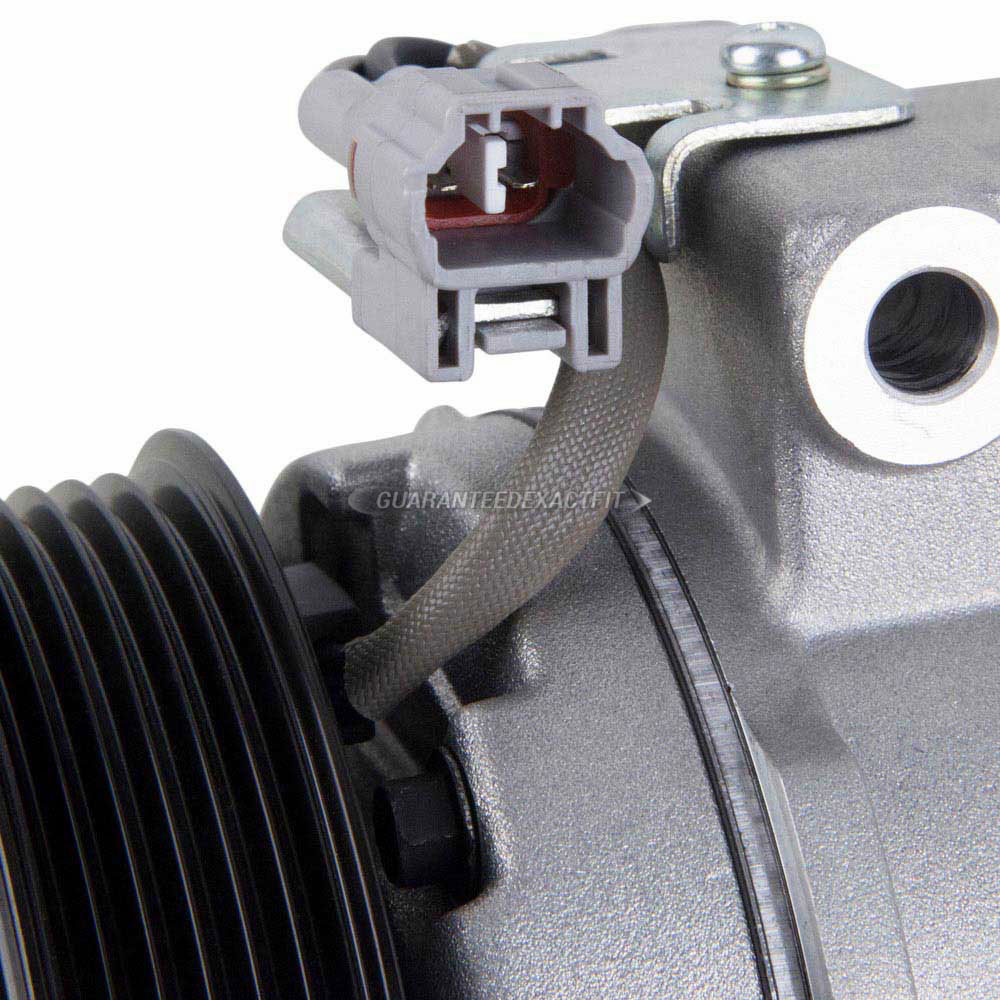

Coil Clock Position1 Wire Lead
Coil Voltage12 2H
Compatible Refrigerant Oil TypePAG 46
Compressor Type10s20c
Discharge Port TypeO-Ring
Distance From Clutch To Mounting Flange1.625 in
Mount Distance MM41.148 mm
Mounting Hardware?Not Included
Mounting TypeTangent Mount
New or RemanRemanufactured
NoteMay Require use of OE Manifold
O-Ring A Number/Desc[24681] / Green O-Ring
O-Ring A Quantity1
O-Ring B Number/Desc[24661] / Green O-Ring
O-Ring B Quantity1
Oil FilledYes
Pulley Belt TypeSerpentine
Pulley Diameter MM114.300 MM
Pulley Groove Quantity6
Pulley Lip Diameter4.500 in
Pulley Ridge Diameter4.500 in
Refrigerant TypeR134a

VEHICLE FITMENT

2007 Mazda CX-9 All Models
2008 Mazda CX-9 All Models
2009 Mazda CX-9 All Models
2010 Mazda CX-9 All Models

2011 Mazda CX-9 All Models

2012 Mazda CX-9 All Models

2013 Mazda CX-9 All Models

2014 Mazda CX-9 All Models

2015 Mazda CX-9 All Models


Alternate/OEM Part Number(s): 158320, 7T4Z19703A, 8T4Z19703A, BT4Z19703A, TD1561450A, TD1561K00
