Honda A/C compressor

Type TR70 1988-1991 1.5L/1.6L Honda Civic A/C Compressor Sanden TR70 Air Conditioning Compressor 38800PM3J04 38800PM3J04 38800PM9A01 for Honda CRX… 4PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

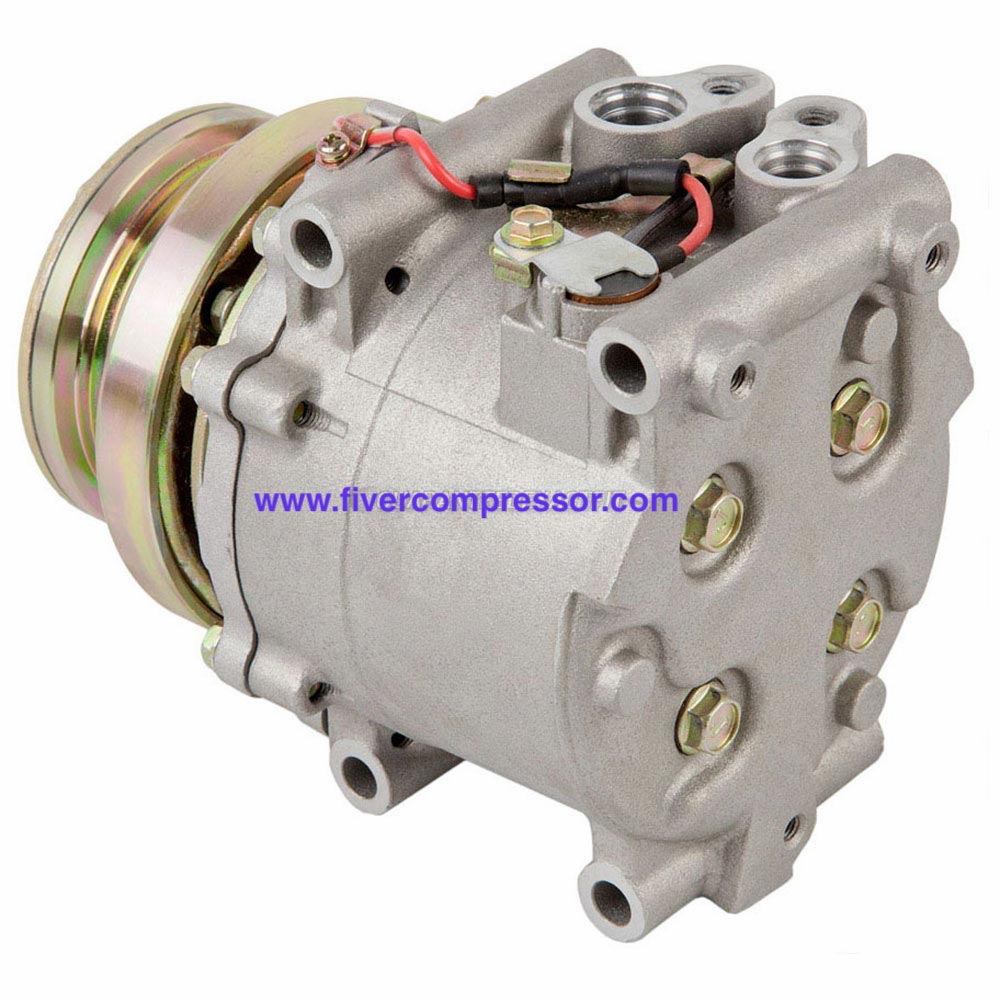

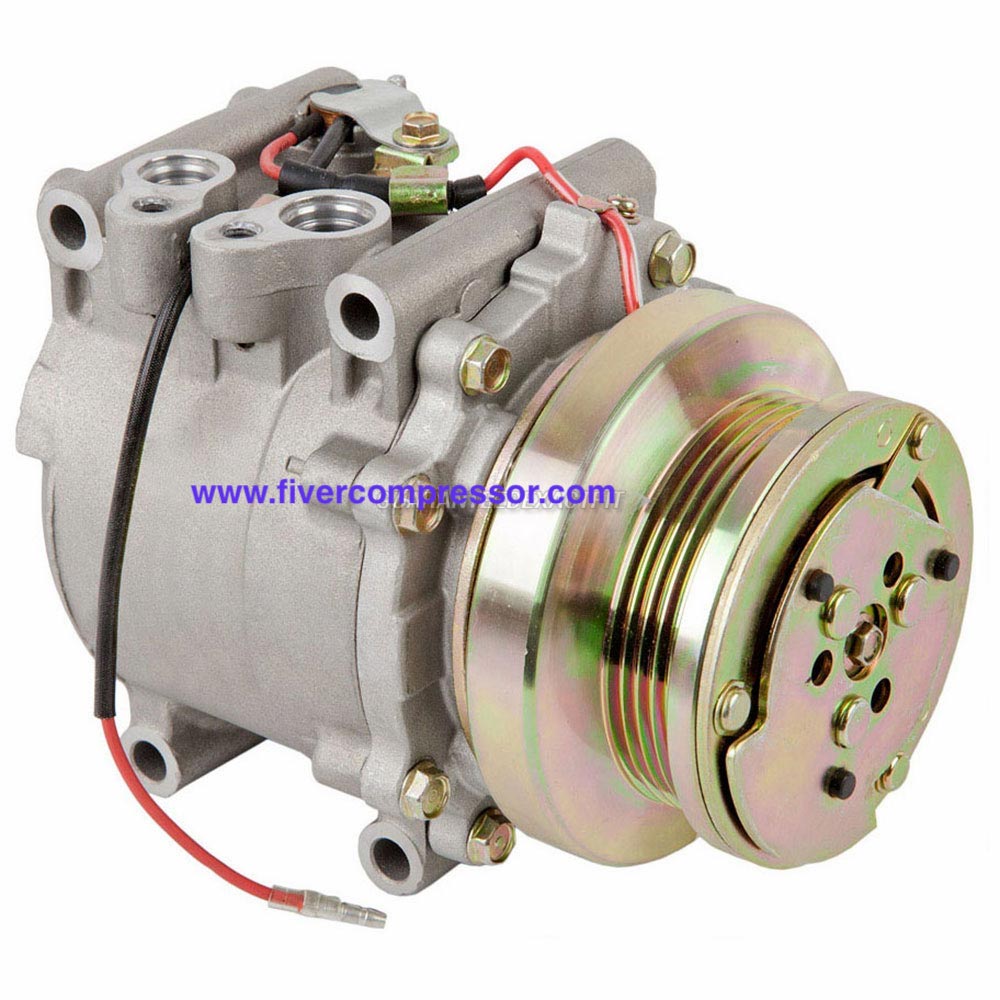

Honda TR70 A/C compressor

1988-1991 1.5L/1.6L Honda Civic A/C Compressor Sanden TR70 Air Conditioning Compressor 38800PM3J04 38800PM3J04 38800PM9A01 for Honda CRX Si 1988-1991

OE / Part number
38800PM3J04, 38800PM9A01, 38800PM9A11, 38810PM5A01, 38810PM5S01

AC Compressor for Honda Civic 1988-2001; Honda CRX Si 1988-2001 A/C Compressor; Auto Air Conditioning Parts

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeTR70
Pulley Groove4PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeTR70
Pulley Groove4PK
Coil Voltage12V
OE / Part number38800PM3J04, 38800PM9A01, 38800PM9A11, 38810PM5A01, 38810PM5S01

§ 04

Product details

1988-1991 1.5L/1.6L Honda Civic A/C Compressor Sanden TR70 Air Conditioning Compressor 38800PM3J04, 38800PM3J04 ,38800PM9A01 for Honda CRX Si 1988-1991

Specifications
Clutch Included Included
Clutch Maximum Diameter 3.500 in
Coil Clock Position 1 Wire Lead
Coil Voltage 12 2H
Compatible Refrigerant Oil Type PAG 46
Compressor Type TR70
Discharge Port Type O-Ring
Distance From Clutch To Mounting Flange 2.046875 in
Mount Distance MM 52.000 mm
Mounting Hardware? Not Included
Mounting Type Tangent Mount
New or Reman New
O-Ring A Number/Desc [24659] / Green O-Ring
O-Ring A Quantity 1
O-Ring B Number/Desc [24642] / Green O-Ring
O-Ring B Quantity 1
Oil Filled Yes
Pulley Belt Type Serpentine
Pulley Diameter MM 88.900 MM
Pulley Groove Quantity 4
Pulley Lip Diameter 3.500 in
Pulley Ridge Diameter 3.500 in
Refrigerant Type R134a


VEHICLE FITMENT

1988 Honda Civic Comp type- Sanden TR70[9774.9784]. 4 grooves
1989 Honda Civic Comp type- Sanden TR70[9774.9784]. 4 grooves
1990 Honda Civic Comp type- Sanden TR70[9774.9784]. 4 grooves
1991 Honda Civic Comp type- Sanden TR70[9774.9784]. 4 grooves

1988 Honda CRX Comp type- TR70[9774.9784]. 4 grooves

1989 Honda CRX Comp type- TR70[9774.9784]. 4 grooves

1990 Honda CRX Comp type- TR70[9774.9784]. 4 grooves

1991 Honda CRX Comp type- TR70[9774.9784]. 4 grooves


Alternate/OEM Part Number(s): 38800PM9A11, 38810PM5A01, 38810PM5S01,  38800PM3J04, 38800PM9A01
