Products DV13 A/C compressor

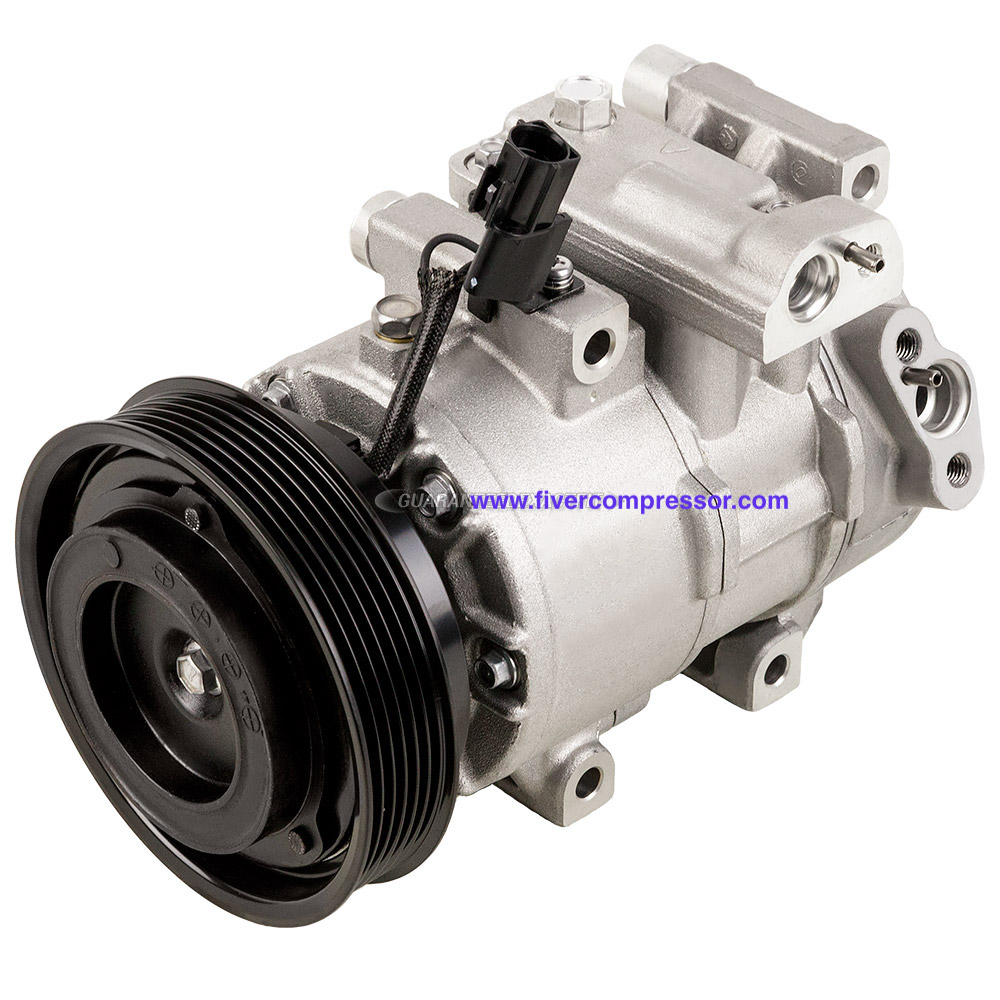

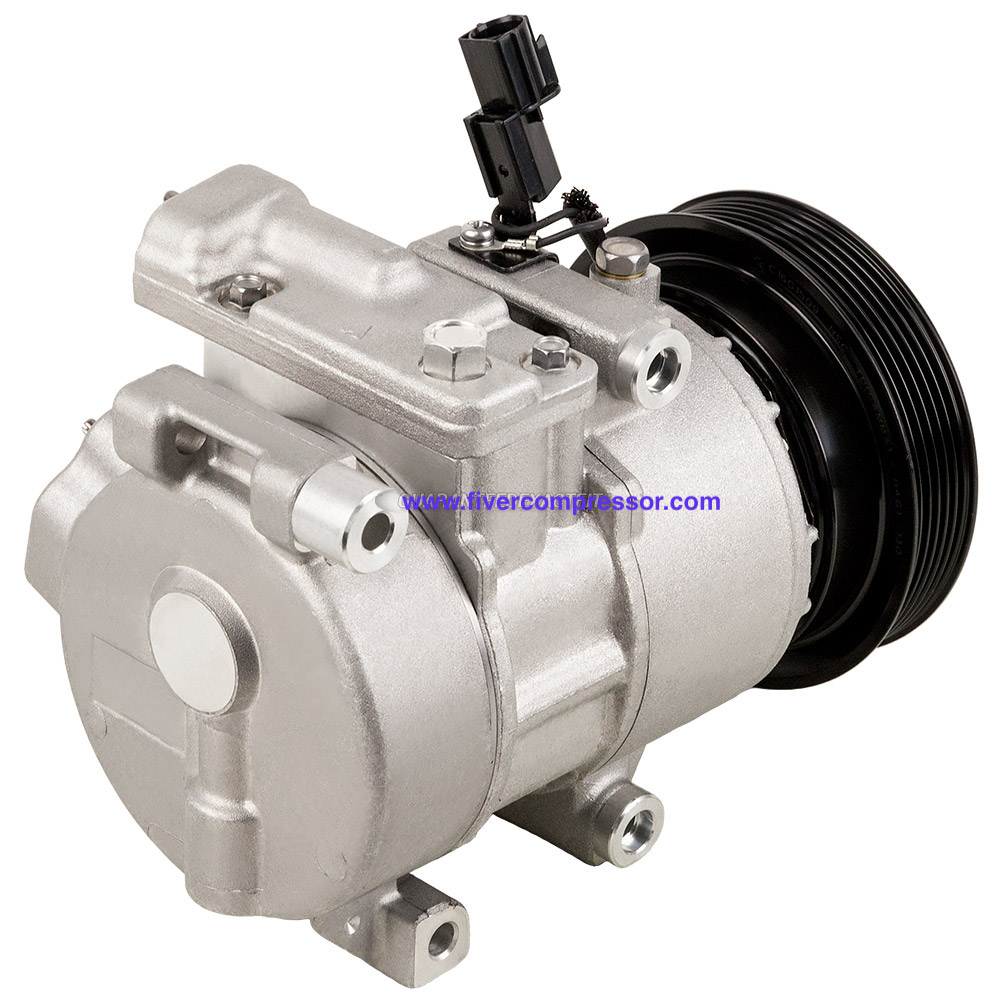

12V DV13 Type Auto A/C Compressor 977012V001 TSR5239 for HYUNDAI VELOSTER 2014-2017

OE / Part number
977012V001, TSR5239

Each unit passes universal testing which includes vacuum, pressure, noise and performance; Charged with a lubricant to reduce internal friction promoting enhanced system performance and longevity;

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeDV13
Pulley Groove6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeDV13
Pulley Groove6PK
Coil Voltage12V
OE / Part number977012V001, TSR5239

§ 04

Product details

12V DV13 Type Auto A/C Compressor 977012V001 TSR5239 for HYUNDAI VELOSTER 2014-2017

Specifications
[A/C Compressor] - Grooves6
[A/C Compressor] - StyleDV13
[A/C Compressor] - Suction Port Diameter (MM)16
[A/C Compressor] - [A/C Compressor] MountDirect
[A/C Expansion Valve] - Liquid Inlet (MM)12
[A/C Expansion Valve] - Suction Inlet (MM)16
[A/C Receiver Drier Desiccant Element] - Bag Length (MM)200
[A/C Receiver Drier Desiccant Element] - Bag Weight (g)43
[A/C Receiver Drier Desiccant Element] - Diameter (MM)25
Vehicle Fitment

2013 Hyundai Veloster Base
2012 Hyundai Veloster Base
2014 Hyundai Veloster Naturally Aspirated - To 02/18/2014
2013 Hyundai Veloster Turbo

2014 Hyundai Veloster Turbocharged - To 02/18/2014


OE: 977012V001, TSR5239
