Honda A/C compressor

Type 10SRE11C 10SRE11C 5PK 12V Automotive A/C Compressor 3881058RG01, 388105R7A01 for Honda Fit EX/LX 1.5L 2015-2017 5PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

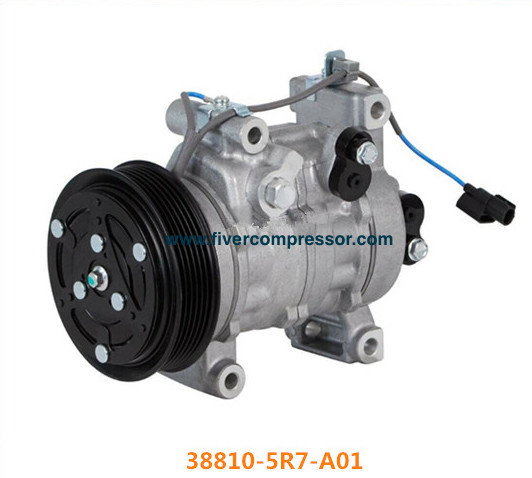

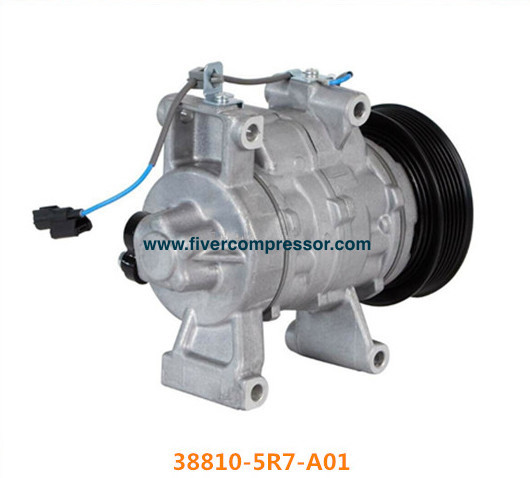

Honda 10SRE11C A/C compressor

10SRE11C 5PK 12V Automotive A/C Compressor 3881058RG01, 388105R7A01 for Honda Fit EX/LX 1.5L 2015-2017

OE / Part number
3881058RG01, 388105R7A01, 38810-5R7-A01, 38810-58R-G01

A/C Compressor for Honda Fit 1.5L 2015-2017; Honda Fit AC Compressor; Cheap auto A/C Compressor

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type10SRE11C
Groove5PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type10SRE11C
Groove5PK
Coil Voltage12V
OE / Part number3881058RG01, 388105R7A01, 38810-5R7-A01, 38810-58R-G01

§ 04

Product details

10SRE11C 5PK 12V Automotive A/C Compressor 3881058RG01, 388105R7A01 for Honda Fit EX/LX 1.5L 2015-2017

Specifications
Clutch IncludedYes
Clutch Maximum Diameter (IN)4.72
Coil Clock PositionLead Wire
Coil Voltage12
Compatible Refrigerant Oil TypePAG 46
Compressor Type10SRE11C
Distance From Clutch To Mounting Flange (IN)1.453125
Mounting Hardware?Not Included
Mounting TypeTangent Mount
New or RemanNew
O-Ring A Number/Desc24661
O-Ring A Quantity1
O-Ring B Number/Desc24681
O-Ring B Quantity1
Pulley Belt TypeSerpentine
Pulley Groove Quantity6
Pulley Lip Diameter (IN)4.72
Pulley Outside Diameter (IN)4.72
Pulley Ridge Diameter (IN)4.72
Refrigerant TypeR134a
Terminal TypePin

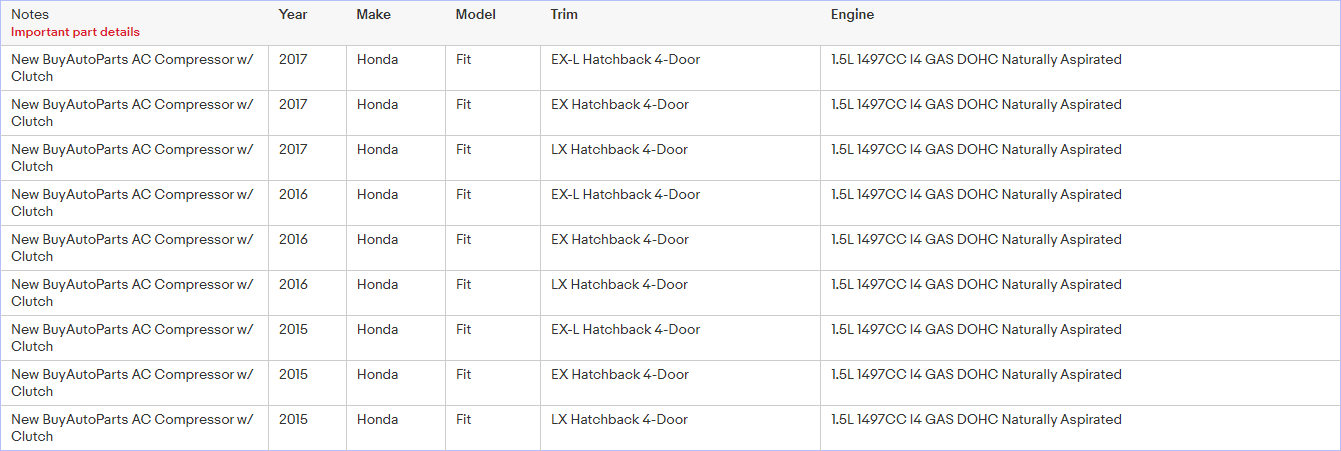

Applications:

OE: 38810-5R7-A01, 388105R7A01, 3881058RG01, 38810-58R-G01
