Honda A/C compressor

Type 10SR17C 10SR17C-6PK Auto A/C Compressor 38810RGLA02, 38810RN0A01 for Honda ODYSSEY/PILOT/RIDGELINE V6 3.5L 2008-2017 for Acura ZDX/MDX 3.7L V6… 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

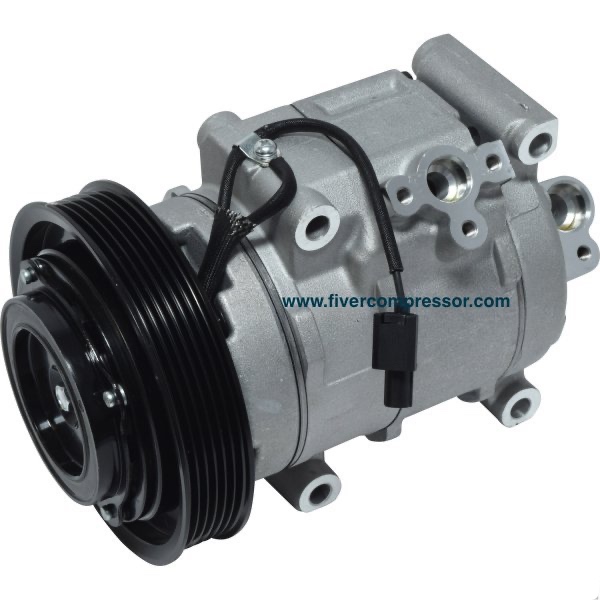

Honda 10SR17C A/C compressor

10SR17C-6PK Auto A/C Compressor 38810RGLA02, 38810RN0A01 for Honda ODYSSEY/PILOT/RIDGELINE V6 3.5L 2008-2017 for Acura ZDX/MDX 3.7L V6 2007-2013

OE / Part number
38810RGLA02, 38810RN0A01, 38810-RGL-A02, 38810-RN0-A01, 255315, 275802, 38800RGLA03, 4471600392

A/C Compressor for Honda Odyssey 3.5L V6; Automotive A/C Compressor for Honda Pilot; Acura ZDX/MDX 3.7L V6 2007-2013

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type10SR17C
Groove6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type10SR17C
Groove6PK
Coil Voltage12V
OE / Part number38810RGLA02, 38810RN0A01, 38810-RGL-A02, 38810-RN0-A01, 255315, 275802, 38800RGLA03, 4471600392
ApplicationApplications: ACURA

§ 04

Product details

10SR17C-6PK Auto A/C Compressor 38810RGLA02, 38810RN0A01 for Honda ODYSSEY/PILOT/RIDGELINE V6 3.5L 2008-2017 for Acura ZDX/MDX 3.7L V6 2007-2013

Specifications
Refrigerant TypeR134a
Clutch Maximum Diameter135.0 MM
Compressor Mount Hole Quantity4
Pulley Belt TypeSerpentine 6PK
Mounting TypeBolt Tangent

Applications:

ACURAMDX 3.7L V62007-2013
ACURAZDX 3.7L V62010-2013
HONDAODYSSEY 3.5LV62008-2017
HONDAPILOT 3.5LV62008-2015
HONDARIDGELINE 3.5LV62009-2014

Alternate/OEM Part Number(s): 255315, 275802, 38800RGLA03, 38810RGLA02, 4471600392

§ 05

Similar compressors

No.CompressorClutchPulley
