Honda A/C compressor

Type 10S20C 10S20C Type 6PK A/C Compressor 38800P8FA01, 38810P8FA01, 38810RN0A01, 38900P8FA01 for Acura MDX V6 3.5L 2001-2002 for Honda Odyssey 3.5L… 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

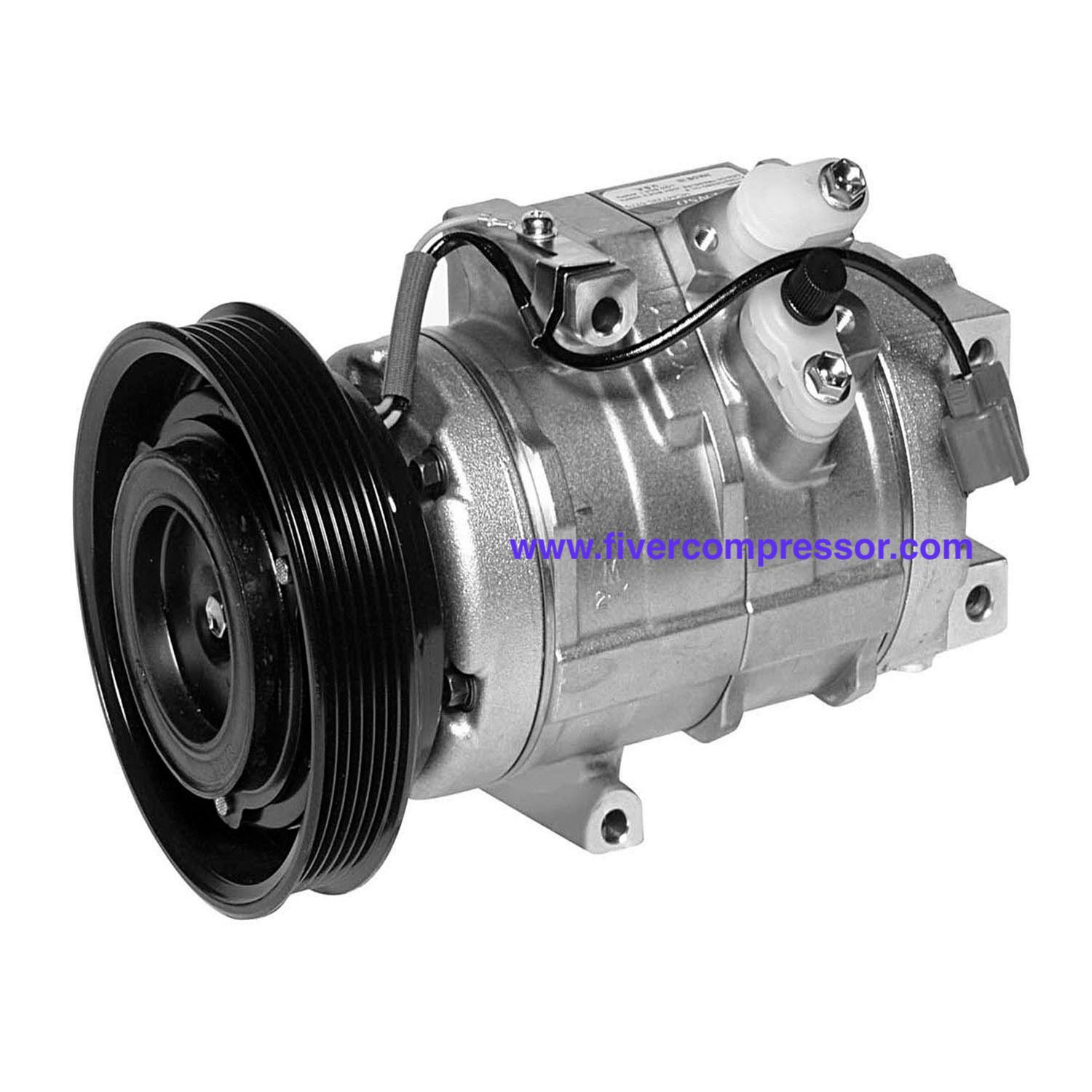

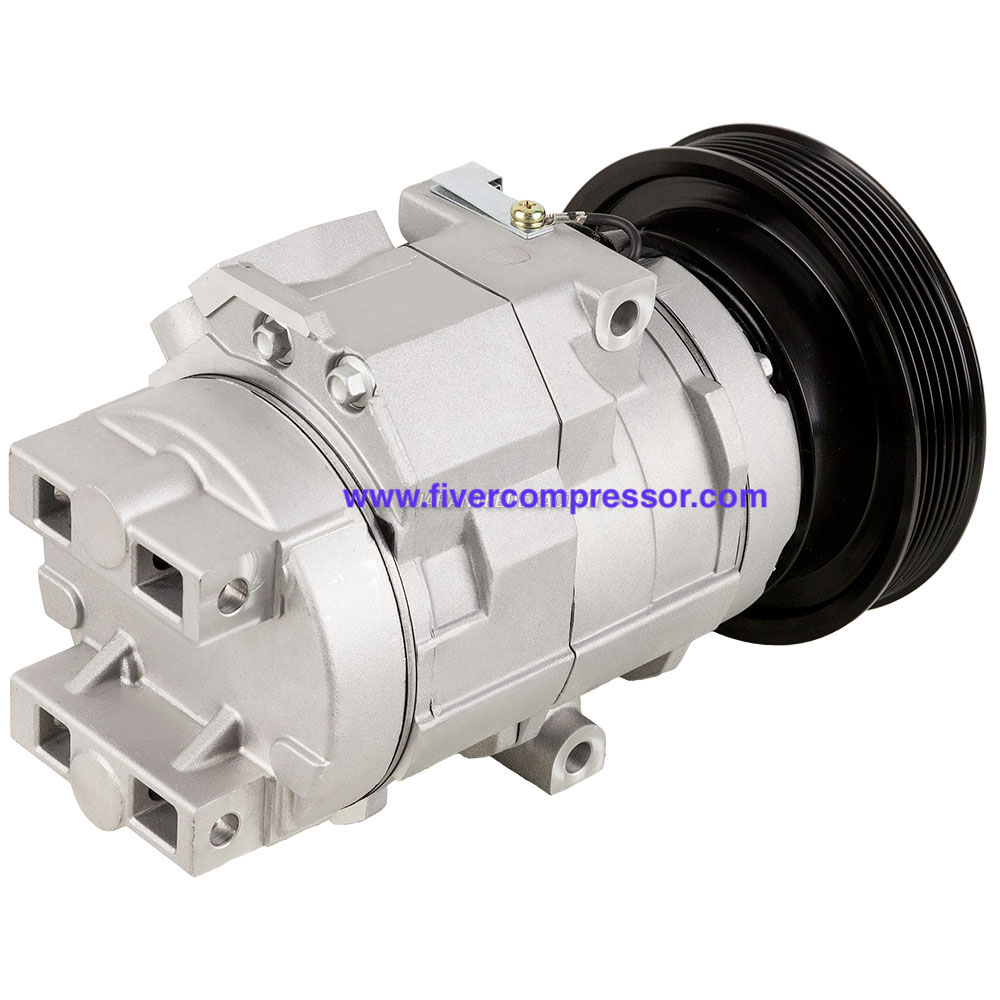

Honda 10S20C A/C compressor

10S20C Type 6PK A/C Compressor 38800P8FA01, 38810P8FA01, 38810RN0A01, 38900P8FA01 for Acura MDX V6 3.5L 2001-2002 for Honda Odyssey 3.5L V6 1999-2004 for Honda Pilot 3.5L V6 2003-2004

OE / Part number
38800P8FA01, 38810P8FA01, 38810RN0A01, 38900P8FA01, 38810-P8F-A01, 38810-RN0-A01, 38900-P8F-A01, 06388P8F505RM, 254415, 274520, 4471708486, 4710276

A/C Compressor for Acura MDX 3.5L V6; Honda Odyssey 3.5L V6 AC Compressor; AC Compressor Replacement for Honda Pilot 3.5L V6 2003-2004

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type10S20C
Pulley Groove6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type10S20C
Pulley Groove6PK
Coil Voltage12V
OE / Part number38800P8FA01, 38810P8FA01, 38810RN0A01, 38900P8FA01, 38810-P8F-A01, 38810-RN0-A01, 38900-P8F-A01, 06388P8F505RM, 254415, 274520, 4471708486, 4710276

§ 04

Product details

10S20C Type 6PK A/C Compressor 38800P8FA01, 38810P8FA01, 38810RN0A01, 38900P8FA01 for Acura MDX V6 3.5L 2001-2002 for Honda Odyssey 3.5L V6 1999-2004 for Honda Pilot 3.5L V6 2003-2004

Specifications
Refrigerant Type R134a
Clutch Maximum Diameter 135.0 MM
Compressor Mount Hole Quantity 4
Pulley Belt Type Serpentine 6PK
Mounting Type Bolt Tangent
VEHICLE FITMENT
YearMakeModelBody & TrimEngine & Transmission
2004HondaOdysseyEX, EX-L, LX3.5L V6 - Gas
2004HondaPilotEX, EX-L, LX3.5L V6 - Gas
2003HondaOdysseyEX, EX-L, LX3.5L V6 - Gas
2003HondaPilotEX, LX3.5L V6 - Gas
2002HondaOdysseyCargo, EX, EX-L, LX3.5L V6 - Gas
2001HondaOdysseyCargo, EX, LX3.5L V6 - Gas
2000HondaOdysseyCargo, EX, LX3.5L V6 - Gas
1999HondaOdysseyCargo, EX, LX3.5L V6 - Gas

Alternate/OEM Part Number(s): 06388P8F505RM, 254415, 274520,4471708486, 4710276,38800P8FA01, 38810P8FA01, 38810RN0A01, 38900P8FA01 ,38800P8FA01, 38810-P8F-A01, 38810-RN0-A01, 38900-P8F-A01
