Honda A/C compressor

Type 10S17C 10S17C A/C Compressor 447220-4863 38800RAAA01 38810RBA006 for Honda Accord EX 2.4L 2003-2007 7PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

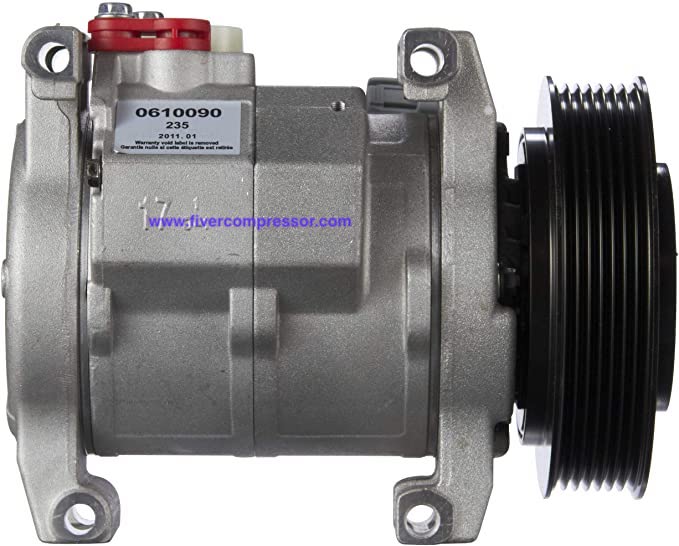

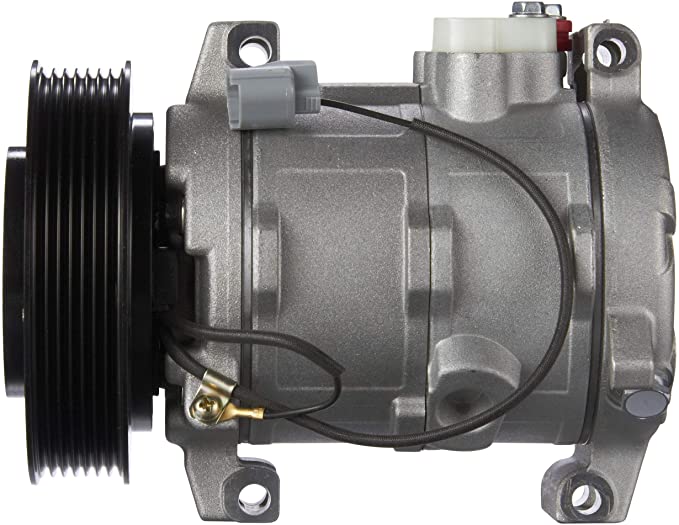

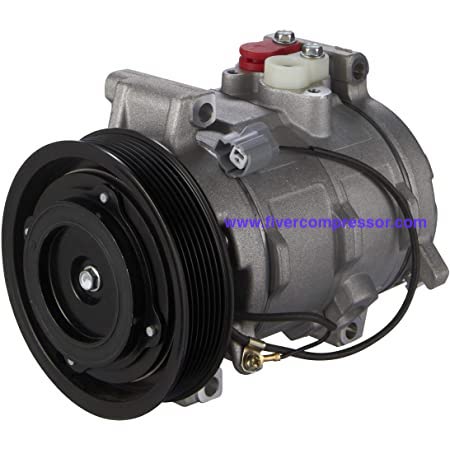

Honda 10S17C A/C compressor

10S17C A/C Compressor 447220-4863 38800RAAA01 38810RBA006 for Honda Accord EX 2.4L 2003-2007

OE / Part number
447220-4863, 38800RAAA01, 38810RBA006, 38800-RAA-A01, 38810-RBA-006

Air Condition Compressor for Honda Accord 2003-2007; Honda Accord AC Compressor; AC Compressor With AC Clutch

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type10S17C
Pulley Groove7PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type10S17C
Pulley Groove7PK
Coil Voltage12V
OE / Part number447220-4863, 38800RAAA01, 38810RBA006, 38800-RAA-A01, 38810-RBA-006

§ 04

Product details

10S17C A/C Compressor 447220-4863 38800RAAA01 38810RBA006 for Honda Accord EX 2.4L 2003-2007

Specifications

Refrigerant TypeR134a
Clutch Maximum Diameter130.0 MM
Compressor Mount Hole Quantity4
Pulley Belt TypeSerpentine 7PK
Mounting TypeBolt Tangent


VEHICLE FITMENT

2003 Honda Accord 2.4L Engine - Sedan Models
2003 Honda Accord 2.4L Engine - Coupe Models
2004 Honda Accord 2.4L Engine - Coupe Models
2005 Honda Accord 2.4L Engine - Coupe Models

2006 Honda Accord 2.4L Engine - Coupe Model

2007 Honda Accord 2.4L Engine - Coupe Models

2004 Honda Accord 2.4L Engine - Sedan Models

2005 Honda Accord 2.4L Engine - Sedan Models

2006 Honda Accord 2.4L Engine - Sedan Models

2007 Honda Accord 2.4L Engine - Sedan Models

OE: 447220-4863 38800RAAA01 38810RBA006 38800-RAA-A01 38810-RBA-006

§ 05

Similar compressors

No.CompressorClutchPulley
