Land Rover Range Rover V8 A/C Compressor JPB500210/JPB500211

**PRODUCTION PLATE**Compressor assembly line, Chongqing

Land-Rover A/C compressor

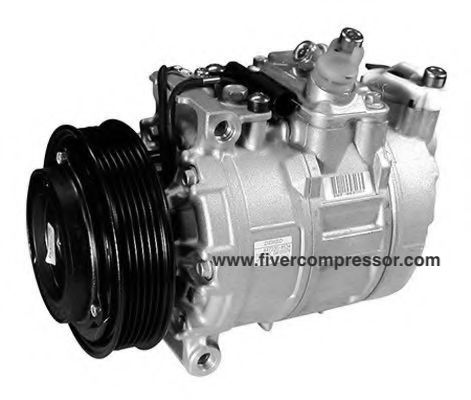

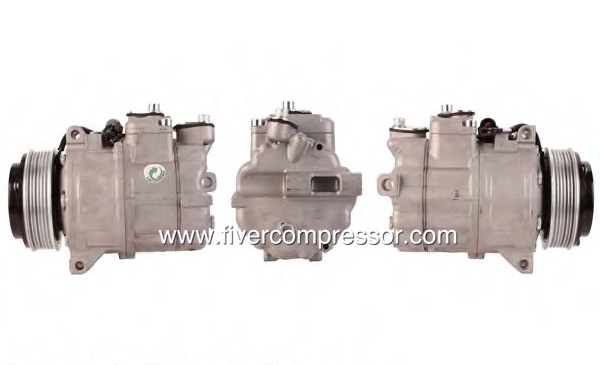

Land Rover Range Rover V8 A/C Compressor JPB500210/JPB500211

Land Rover Range Rover V8 A/C Compressor JPB500210/JPB500211 — aftermarket A/C compressor supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

Request a quotation Ask an engineer

What arrives with every unit

TRACEProduction record filed against the order line.
TESTVacuum, pressure, noise and performance checked before packing.
SHIPExport packing with the packing list in the box.
SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelA/C Compressor manufacturer Chinautomotive A/C Compressor Supplier / Auto A/C compressor manufacturer / A/C Compressor for Landrover / A/C Compressor for Range Rover

ApplicationApplications: Range Rover- 4.2/4.4 V8 2002-2005

§ 03

Product details

Characters of products from fivercompressor.com
Precision machined ports for OE hose fitment.
Internal pistons are PTFE surface treated for longlife durability;
Robotic weldding for precise and consistent quality;
Internal valves are engineered with light weight aluminum alloy for optimize cooling;
OE connectors are available for most applications, no need reposition or splice wiring during installations;
Bearings structured to withstand tension and stree for maximum durability.

Part Name: A/C Compressor

OE: JPB500210/JPB500211/Pxv16-8636/Pxv16-8648

Compressor Type: PXV16

Clutch info: 110mm 6PK 12V

Oil type : PAG 46
Oil Quantity : 160ml

Applications:

Range Rover- 4.2/4.4 V8 2002-2005
