FIVER FIVER AUTOPARTS CO.,LTD — Chongqing

FIVER AUTOPARTS CO.,LTD

Land-Rover A/C compressor

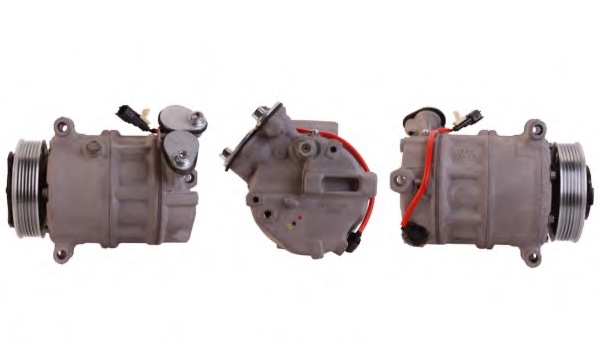

A/C Compressor 8W83-19D629-AC for Range Rover 5.0 and Jaguar XF 5.0
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Land-Rover A/C compressor

A/C Compressor 8W83-19D629-AC for Range Rover 5.0 and Jaguar XF 5.0

OE / Part number
8W83-19D629-AC

A/C Compressor 8W83-19D629-AC for Range Rover 5.0 and Jaguar XF 5.0 — aftermarket A/C compressor OE 8W83-19D629-AC supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelA/C Compressor manufacturer China / A/C Compressor supplier / A/C Compressor for Land Rover / A/C Compressor for Jaguar XF
OE / Part number8W83-19D629-AC
ApplicationApplications: LAND ROVER

§ 03

Product details

Characters of products from fivercompressor.com
Precision machined ports for OE hose fitment.
Internal pistons are PTFE surface treated for longlife durability;
Robotic weldding for precise and consistent quality;
Internal valves are engineered with light weight aluminum alloy for optimize cooling;
OE connectors are available for most applications, no need reposition or splice wiring during installations;
Bearings structured to withstand tension and stree for maximum durability.

Part Name: A/C Compressor

OE/Cross: 8W83-19D629-AC

Compressor Type: PXE16

Clutch info: 110mm 6PK ELECTRONIC CONTROL VALVE

Applications:

LAND ROVER

RANGE ROVER III (LM) 5.0 4x4 09.2009 - 08.2012 Closed Off-Road Vehicle
RANGE ROVER III (LM) 5.0 4x4 09.2009 - 08.2012 Closed Off-Road Vehicle
DISCOVERY IV (LA) 5.0 V8 4x4 09.2009 - .0 Closed Off-Road Vehicle
RANGE ROVER SPORT (LS) 5.0 4x4 07.2009 - 03.2013 Closed Off-Road Vehicle
RANGE ROVER SPORT (LS) 5.0 4x4 04.2009 - 03.2013 Closed Off-Road Vehicle
RANGE ROVER SPORT (LS) 5.0 4x4 09.2009 - 03.2013 Closed Off-Road Vehicle

JAGUAR

XF (_J05_, CC9) 5.0 Kompressor 01.2009 - 04.2015 Saloon
XF (_J05_, CC9) 5.0 Kompressor 03.2009 - 04.2015 Saloon
XF (_J05_, CC9) 5.0 XFR-S 10.2012 - 04.2015 Saloon
XF (_J05_, CC9) 5.0 03.2009 - 04.2015 Saloon
