AUDI A/C compressor
Buy AUDI Auto Ac Compressor 4B0260805M/8E0260805M/4B0260805K/447170-9090 for Audi A6 and Audi A8 — aftermarket A/C compressor OE 4B0260805M supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03

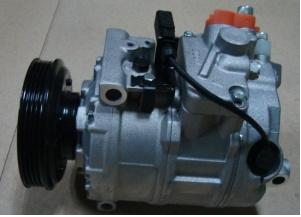

Part name: AC Compressors for Audi A6 and Audi A8
OE/Cross reference: 4B0260805M 8E0260805M 4B0260805K 447170-9090
Compressor type: 7SEU16C
Clutch info:110mm 4PK
ELECTRONIC CONTROL VALVE
Oil type : PAG 46
Oil Quantity : 245ml
Applications:
| A8 (4D2, 4D8) 6.0 W12 quattro | 01.2001 - 09.2002 | Saloon |
| A6 Avant (4B5, C5) 1.9 TDI | 08.2001 - 01.2005 | Estate |
| A6 (4B2, C5) 1.9 TDI | 08.2001 - 01.2005 | Saloon |
