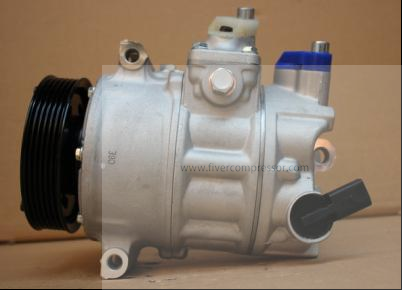

AUDI A/C compressor

Automotive A/C Compressor Supplier of 1K0820803F/1K0820859M, 1K0820803J 1K0820803E 1K0820859C for Audi A3; VW Golf, Touran and SKODA Octavia
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
AUDI A/C compressor

Automotive A/C Compressor Supplier of 1K0820803F/1K0820859M, 1K0820803J 1K0820803E 1K0820859C for Audi A3; VW Golf, Touran and SKODA Octavia

OE / Part number
1K0820803J, 1K0820803E, 1K0820859C

Automotive A/C Compressor Supplier of 1K0820803F/1K0820859M, 1K0820803J 1K0820803E 1K0820859C for Audi A3; VW Golf, Touran and SKODA Octavia — aftermarket A/C compressor OE 1K0820803J supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelAutomotive A/C Compressor Supplier / Automotive A/C Compressor Manufacturer / ac compressor for Audi A3 / AC Compressor for Skoda Octavia
OE / Part number1K0820803J, 1K0820803E, 1K0820859C
ApplicationApplications: AUDI

§ 03

Product details

Part Name: ac compressor for Audi A3

OE: 1K0820803F/1K0820859M, 1K0820803J 1K0820803E 1K0820859C

Compressor type: 7SEU16C

Clutch info:110mm 6PK
ELECTRONIC CONTROL VALVE

Oil type : PAG 46
Oil Quantity : 180ml

Applications:

AUDI

A3 (8L1) 1.9 TDI08.2000 - 05.2003Hatchback

A3 (8L1) 1.9 TDI quattro08.2000 - 05.2003Hatchback

A3 (8L1) 1.9 TDI10.2000 - 05.2003Hatchback

A3 (8P1) 2.0 FSI05.2003 - 06.2008Hatchback

A3 (8P1) 1.605.2003 - 08.2012Hatchback

A3 (8P1) 3.2 V6 quattro07.2003 - 05.2009Hatchback

A3 (8P1) 1.6 FSI08.2003 - 09.2007Hatchback

A3 Sportback (8PA) 1.609.2004 - 03.2013Hatchback

A3 Sportback (8PA) 1.6 FSI09.2004 - 09.2007 Hatchback

A3 Sportback (8PA) 2.0 FSI09.2004 - 06.2008 Hatchback

A3 Sportback (8PA) 2.0 TFSI09.2004 - 03.2013 Hatchback

A3 Sportback (8PA) 2.0 TFSI quattro 09.2004 - 03.2013Hatchback

A3 (8P1) 2.0 TFSI09.2004 - 08.2012 Hatchback

A3 (8P1) 2.0 TFSI quattro09.2004 - 08.2012 Hatchback

VW

GOLF IV (1J1) 1.9 TDI 4motion09.2000 - 06.2005Hatchback

GOLF IV (1J1) 1.9 TDI 4motion02.2000 - 06.2005Hatchback

GOLF IV Variant (1J5) 1.9 TDI09.2000 - 06.2006Estate

GOLF IV (1J1) 1.9 TDI 4motion11.2000 - 06.2005Hatchback

GOLF IV Variant (1J5) 1.9 TDI11.2000 - 06.2006Estate

GOLF IV (1J1) 1.9 TDI09.2000 - 06.2005Hatchback

GOLF IV (1J1) 1.9 TDI05.2000 - 06.2005Hatchback

GOLF IV (1J1) 1.9 TDI11.2000 - 06.2005Hatchback

GOLF IV Variant (1J5) 1.9 TDI 4motion09.2000 - 06.2006Estate

GOLF IV Variant (1J5) 1.9 TDI 4motion11.2000 - 06.2006Estate

TOURAN (1T1, 1T2) 1.9 TDI02.2003 - 05.2004MPV

TOURAN (1T1, 1T2) 2.0 TDI02.2003 - 05.2010MPV

TOURAN (1T1, 1T2) 2.0 TDI 16V08.2003 - 05.2010MPV

TOURAN (1T1, 1T2) 1.9 TDI11.2004 - 05.2010MPV

GOLF PLUS (5M1, 521) 1.4 16V01.2005 - 11.2006Hatchback

GOLF PLUS (5M1, 521) 1.4 FSI07.2005 - 11.2006Hatchback

GOLF PLUS (5M1, 521) 1.6 FSI01.2005 - 05.2008Hatchback

SKODA

OCTAVIA (1U2) 1.9 TDI09.2002 - 09.2004Hatchback
OCTAVIA Combi (1U5) 1.9 TDI09.2002 - 09.2004Estate
OCTAVIA Combi (1Z5) 1.9 TDI09.2004 - 12.2010Estate
OCTAVIA Combi (1Z5) 1.9 TDI 4x411.2004 - 12.2010Estate
