447100-9270/447160-0260 447170-6350 auto a/c compressor for Audi A4, A6
OE 447170-6350, 8D0260805B, 8D0260805P
FIVER AUTOPARTS CO.,LTD
AUDI A/C compressor
AUDI A/C Compressor 8K0260805J/8K0260805F/8K0260805P/8K0260805C for Audi A4 — aftermarket A/C compressor OE 8K0260805J-8K0260805F-8K02608 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03

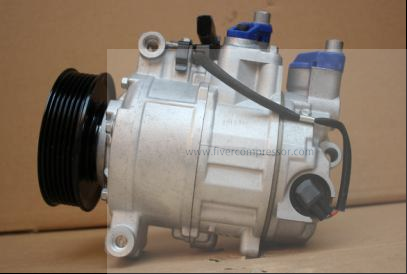

Part Name: A/C Compressor for Audi A4
OE/Cross reference: 8K0260805J-8K0260805F-8K0260805P-8K0260805C
Compressor info:
TYPE : 6SEU14C
Clutch info: 100mm 6PK
ELECTRONIC CONTROL VALVE
Oil type : PAG 46
Oil Quantity : 135ml
Applications:
| A4 (8K2, B8) 3.0 TDI quattro | 11.2007 - 03.2012 | Saloon |
| A4 Avant (8K5, B8) 3.0 TDI quattro | 04.2008 - 03.2012 | Estate |

§ 04
OE 447170-6350, 8D0260805B, 8D0260805P
OE 447100, 447170, 447190
OE 4F0260805H, 8K0260805
OE 1K0820803J, 1K0820803E, 1K0820859C
