Nissan A/C compressor

Type VCS14EC VCS14EC-6PK-12V Auto A/C Compressors 92600-3TA0A, 92600-3TA0B Compressor Assy-Cooler for Nissan Altima SL/SV 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

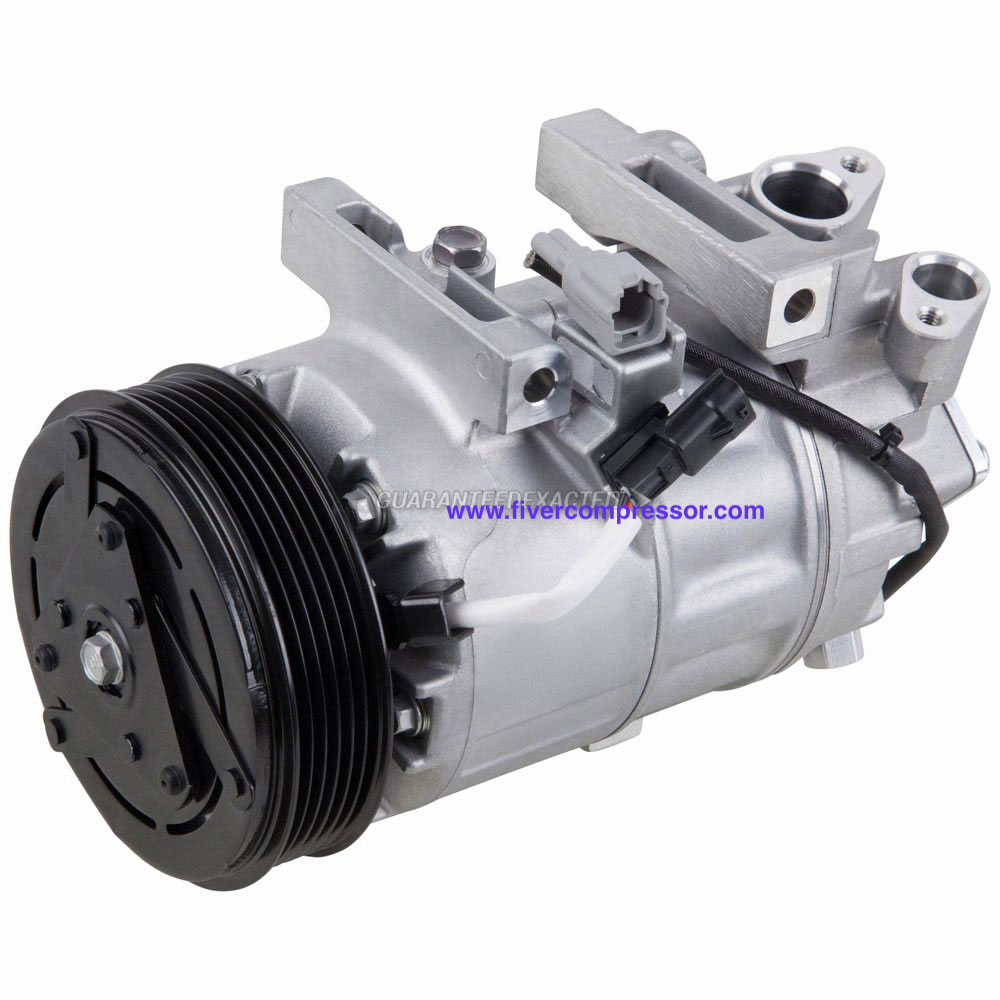

Nissan VCS14EC A/C compressor

VCS14EC-6PK-12V Auto A/C Compressors 92600-3TA0A, 92600-3TA0B Compressor Assy-Cooler for Nissan Altima SL/SV

OE / Part number
92600-3TA0A, 92600-3TA0B, 926003JV0A, 926003TA0A, 926003TA0B, 926003TA0C, 926003TA0D, 926003TA0E, 926003TA5E, 926003TA6A, 926003TA6B, 926004BB0A, 926004BB2A

The A/C Compressor is located in the engine of your Nissan Altima and is a vital component of the air conditioning system inside your vehicle. Its job? Put chilled, low-pressure refrigerant under extreme pressure. After that, the refrigerant continues down the A/C system in your vehicle, cooling from a gas into a liquid, then into a gas again. The system pulls in outside air across coils that have

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeVCS14EC
Pulley Grooves6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeVCS14EC
Pulley Grooves6PK
Coil Voltage12V
OE / Part number92600-3TA0A, 92600-3TA0B, 926003JV0A, 926003TA0A, 926003TA0B, 926003TA0C, 926003TA0D, 926003TA0E, 926003TA5E, 926003TA6A, 926003TA6B, 926004BB0A, 926004BB2A

§ 04

Product details

VCS14EC-6PK-12V Auto A/C Compressors 92600-3TA0A, 92600-3TA0B Compressor Assy-Cooler for Nissan Altima SL/SV L4 2.5L 2013-2018

 Specifications
[A/C Compressor] - Grooves6
[A/C Compressor] - StyleVCS14
[A/C Compressor] - Suction Port Diameter (MM)21
[A/C Expansion Valve] - Liquid Inlet (MM)11
[A/C Expansion Valve] - Suction Inlet (MM)18

[A/C Receiver Drier / Accumulator] - Diameter (MM)

Pulley Diameter

40

115MM

Vehicle Fitment

2013 Nissan Altima SL - 2.5L Eng.
2014 Nissan Altima SL - 2.5L Eng.
2015 Nissan Altima SL - 2.5L Eng.
2016 Nissan Altima SL - 2.5L Eng.

2017 Nissan Altima SL - 2.5L Eng.

2018 Nissan Altima SL - 2.5L Eng.

2013 Nissan Altima SV - 2.5L Eng.

2014 Nissan Altima SV - 2.5L Eng.

2015 Nissan Altima SV - 2.5L Eng.

2016 Nissan Altima SV - 2.5L Eng.

2017 Nissan Altima SV - 2.5L Eng.

2018 Nissan Altima SV - 2.5L Eng.


Alternate/OEM Part Number(s): 926003JV0A, 926003TA0A, 926003TA0B, 926003TA0C, 926003TA0D, 926003TA0E, 926003TA5E, 926003TA6A, 926003TA6B, 926004BB0A, 926004BB2A
