Toyota A/C compressor

Type TV12C TV12C 4PK 12V A/C Compressor 88320-16160,88320-16340,88320-16170 for Toyota Tercel EL42 Grade DLX 1990-1994 4PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

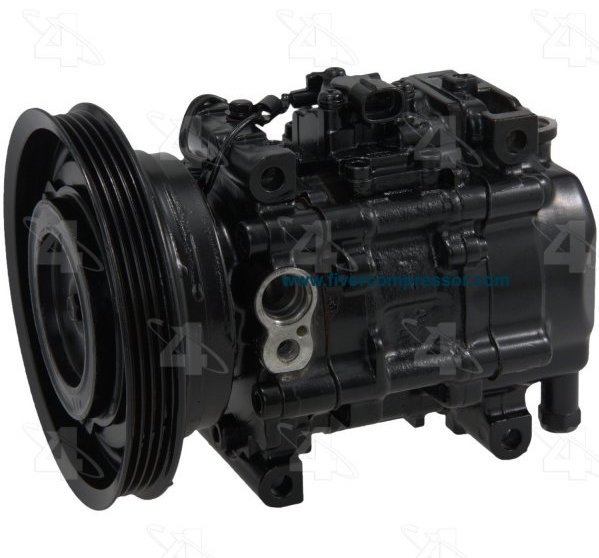

Toyota TV12C A/C compressor

TV12C 4PK 12V A/C Compressor 88320-16160,88320-16340,88320-16170 for Toyota Tercel EL42 Grade DLX 1990-1994

OE / Part number
88320-16160, 88320-16340, 88320-16170, 88320-16330, 88320-16180, 88320-16290, 88320-16190, 88320-16300, 88320-16240, 88320-16241, 88320-16250, 88320-16251, 88320-16270, 88320-16271, 88320-16310, 88320-16311

This Compressor is a perfect replacement for 88320-16160,88320-16340,88320-16170 for Toyota Tercel EL42 Grade DLX 1990-1994 , the products are 100% tested to meet the OE quality standards.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeTV12C
Groove4PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeTV12C
Groove4PK
Coil Voltage12V
OE / Part number88320-16160, 88320-16340, 88320-16170, 88320-16330, 88320-16180, 88320-16290, 88320-16190, 88320-16300, 88320-16240, 88320-16241, 88320-16250, 88320-16251, 88320-16270, 88320-16271, 88320-16310, 88320-16311
ApplicationApplications: TOYOTA

§ 04

Product details

TV12C 4PK 12V A/C Compressor 88320-16160,88320-16340,88320-16170 for Toyota Tercel EL42 Grade DLX 1990-1994

 Specifications
Refrigerant TypeR-134A
Pulley Groove Quantity4
Clutch IncludedYes
Belt TypeSerpentine
Coil Clock PositionWire Lead
Compressor TypeTV12
Clutch Pulley Diameter5.500
Coil Voltage12
Mounting TypeTangent Mount
Distance Between Mounting Holes1.750
Belt Width IN0.625
DescriptionCompressors - Reman
Printed Foot NoteMay Require use of OE Manifold
Belt Width MM15.875
New or RemanRemanufactured
Discharge Port TypeO-Ring
Suction Port TypeO-Ring
O-Ring B Number/Desc[24610] / Green O-Ring
Oil TypePAG 100
StyleVane
Ctch Dia. MM Prmy139.700
Switch / Sensor DescNo Speed Sensor
TypeNippondenso
Mount Distance MM44.450

Applications:

TOYOTA

TERCEL

EL42L-ADHREA |FrameEL42gradeDLXENGINE3EE | 09.1990To09.1994 | 3FC | ATM | USA

EL42L-ADHREK |FrameEL42gradeDLXENGINE3EE | 09.1990To09.1994 | 3FC | ATM | USA

EL42L-ADKBEA|FrameEL42gradeSTDENGINE3EE | 09.1990To09.1994 | 4F | MTM | USA
EL42L-ADKBEK |FrameEL42gradeSTDENGINE3EE | 09.1990To09.1994 | 4F | MTM | USA

EL42L-ADMREA|FrameEL42gradeDLXENGINE3EE | 09.1990To09.1994 | 5F | MTM | USA

EL42L-ADMREK |FrameEL42gradeDLXENGINE3EE | 09.1990To09.1994 | 5F | MTM | USA

EL42L-AEHDEA |FrameEL42gradeLE ENGINE3EE | 09.1990To09.1994 | 3FC | ATM | USA

EL42L-AEHDEK |FrameEL42gradeLE ENGINE3EE | 09.1990To09.1994 | 3FC | ATM | USA | 4 Doors |

EL42L-AEHREA |FrameEL42gradeLE ENGINE3EE | 09.1990To09.1994 | 3FC | ATM | USA | 4 Doors |

EL42L-AEHREK |FrameEL42grade DLXENGINE3EE | 09.1990To09.1994 | 3FC | ATM | USA | 4 Doors |

EL42L-ADKBEA|FrameEL42gradeSTDENGINE3EE | 09.1990To09.1994 | 4F | MTM | Europe | 2 Doors |

EL42L-ADKBEK|FrameEL42gradeSTDENGINE3EE | 09.1990To09.1994 | 4F | MTM | Europe | 2 Doors |

EL42L-ADMREA |FrameEL42gradeDLXENGINE3EE | 09.1990To09.1994 | 5F | MTM | USA | 2 Doors |

EL42L-ADMREK|FrameEL42gradeDLXENGINE3EE | 09.1990To09.1994 | 5F | MTM | USA | 2 Doors |



Alternated OE:88320-16160,88320-16340,88320-16170,88320-16330,88320-16180,88320-16290,88320-16190,88320-16300,88320-16240,88320-16241,88320-16250,88320-16251,88320-16270,88320-16271,88320-16290,88320-16300,88320-16310,88320-16311,88320-16330,88320-16340,.
