AC Compressor Assy 88310-0R014, 883100R014 for Toyota Camry LE, SE, XLE, XSE 2.5L and RAV4RAV4. 2.5L
OE 88310-0R014, 883100R014
FIVER AUTOPARTS CO.,LTD
Toyota A/C compressor
This Compressor is a OE equivalent replacement for 8831008082, 8831008083, 883100R010,8831042330 is applied to Toyota Camry 2012 -2017 and Toyota RAV4 2009-2012
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03

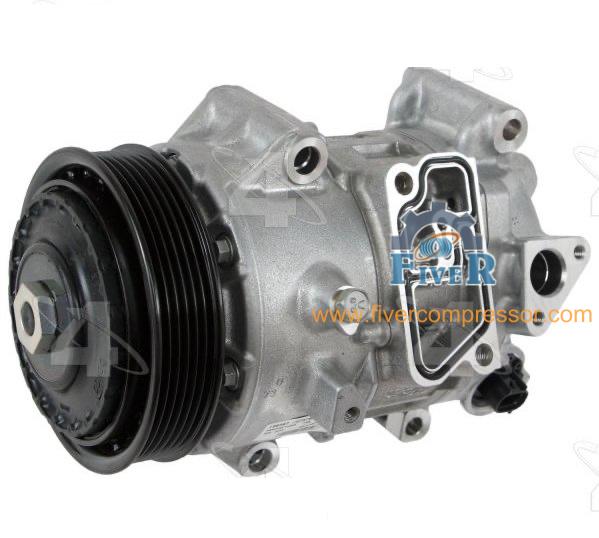

TSE19C - 6PK- 12V AC Compressor 8831008082, 8831008083, 883100R010,8831042330 for Toyota Camry 2012-2017 and Toyota RAV4 2009 -2012

| Specifications | |
|---|---|
| Clutch Included | Yes |
| Clutch Maximum Diameter (IN) | 4.375 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | TSE17C |
| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange (IN) | 1.625 |
| ECV Harness Connector | SE10F, 26984 Female / / SE10M, 26878 Male |
| Mount Distance (MM) | 41.148 |
| Mounting Hardware? | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | New |
| O-Ring A Number/Desc | [24681] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24661] / Green O-Ring |
| O-Ring B Quantity | 1 |
| Printed Foot Note | May Require use of OE Manifold |
| Pulley Belt Type | Serpentine |
| Pulley Diameter (MM) | 111.125 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter (IN) | 4.375 |
| Pulley Outside Diameter (IN) | 4.375 |
| Pulley Ridge Diameter (IN) | 4.375 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |
| Switch Included | Control Valve |
| Terminal Type | Pin |
| Type | Nippondenso |
| TOYOTA | CAMRY | 2012-2017 |
| TOYOTA | RAV4 | 2009-2012 |
§ 04
OE 88310-0R014, 883100R014
OE 88310-52720, 8831052720, 88310-0D400
OE 88310-52750, 8831052750
OE 88310-02850, 8831002850
