Toyota A/C compressor

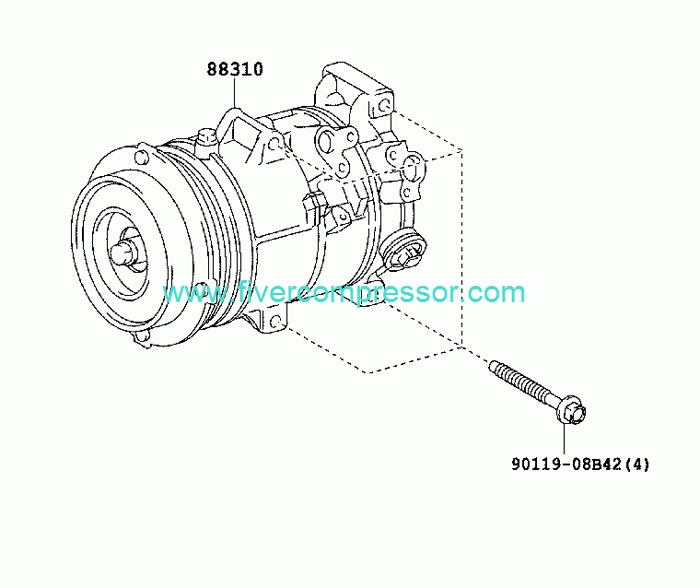

TOYOTA RAV4 ACA33 2005-2012 Compressor Air Conditioning 88310-42270 — aftermarket A/C compressor OE 88310-42270 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03

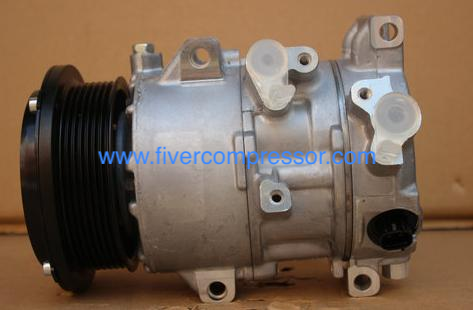

Compressor Info:
tem No : WX-10009
Car Name : Camry/Previa/Rav-4/Estima/Tarago 2.4i
TYPE : 6SEU16C
Year model: 2007- 2009
OEM No : 88310-42270/88310-06330/88310-33250/447260-1203 /447260-1201/447260-1146/ 447260-1207/447190-3230 /447260-1202
Clutch information : 110mm 7PK ELECTRONIC CONTROL VALVE
Oil type : PAG 46
Oil Quantity: 180ML
