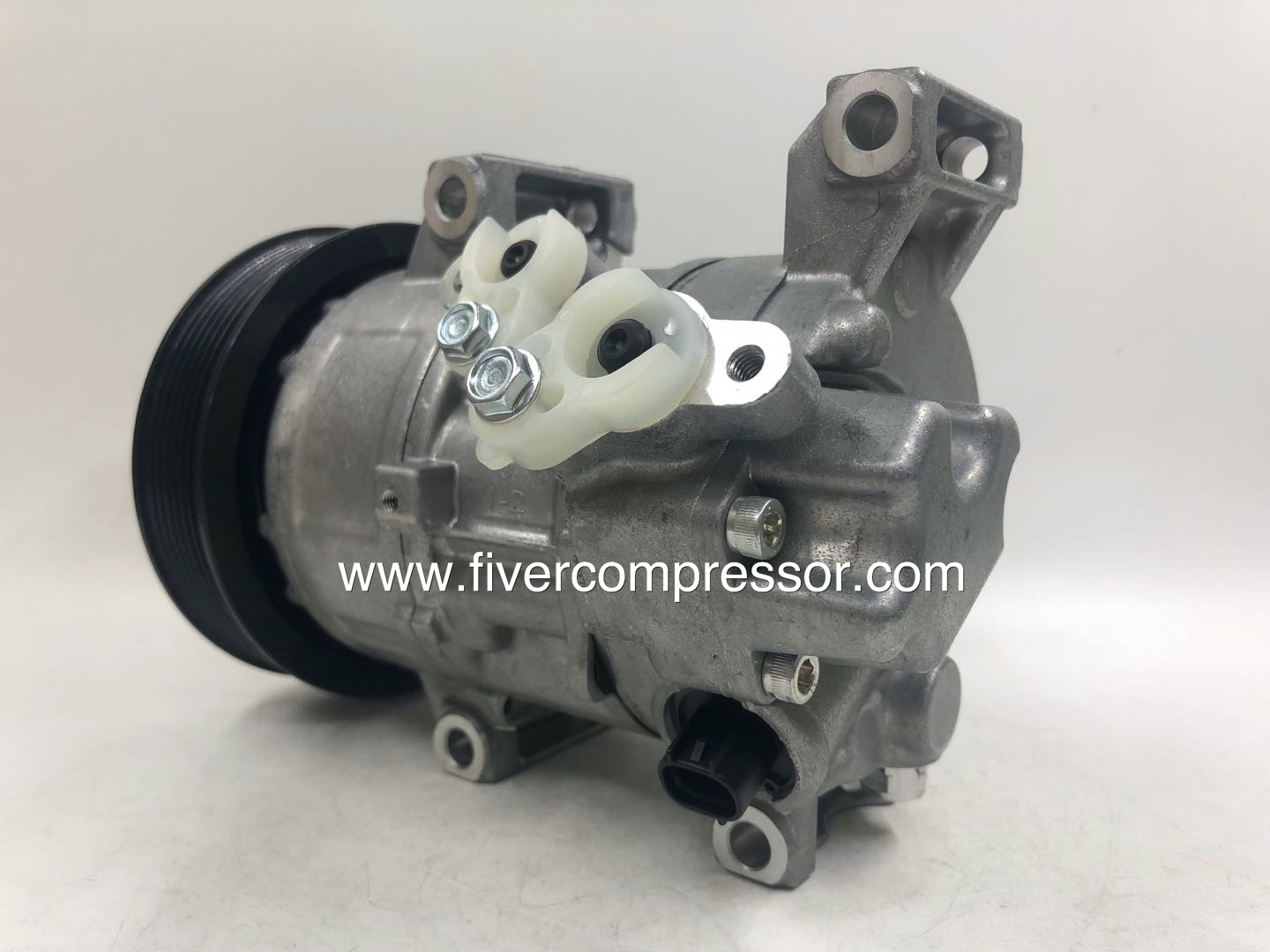

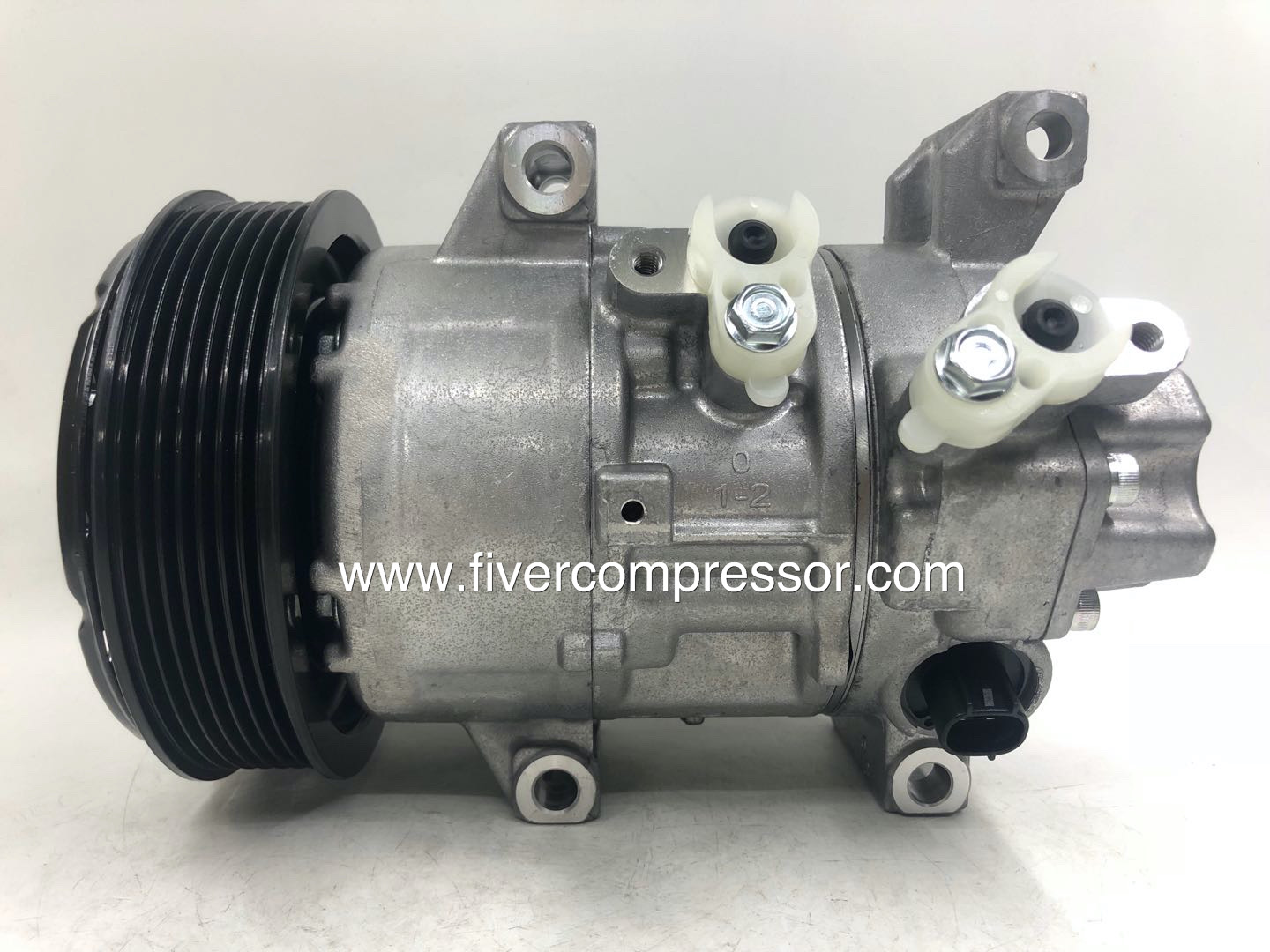

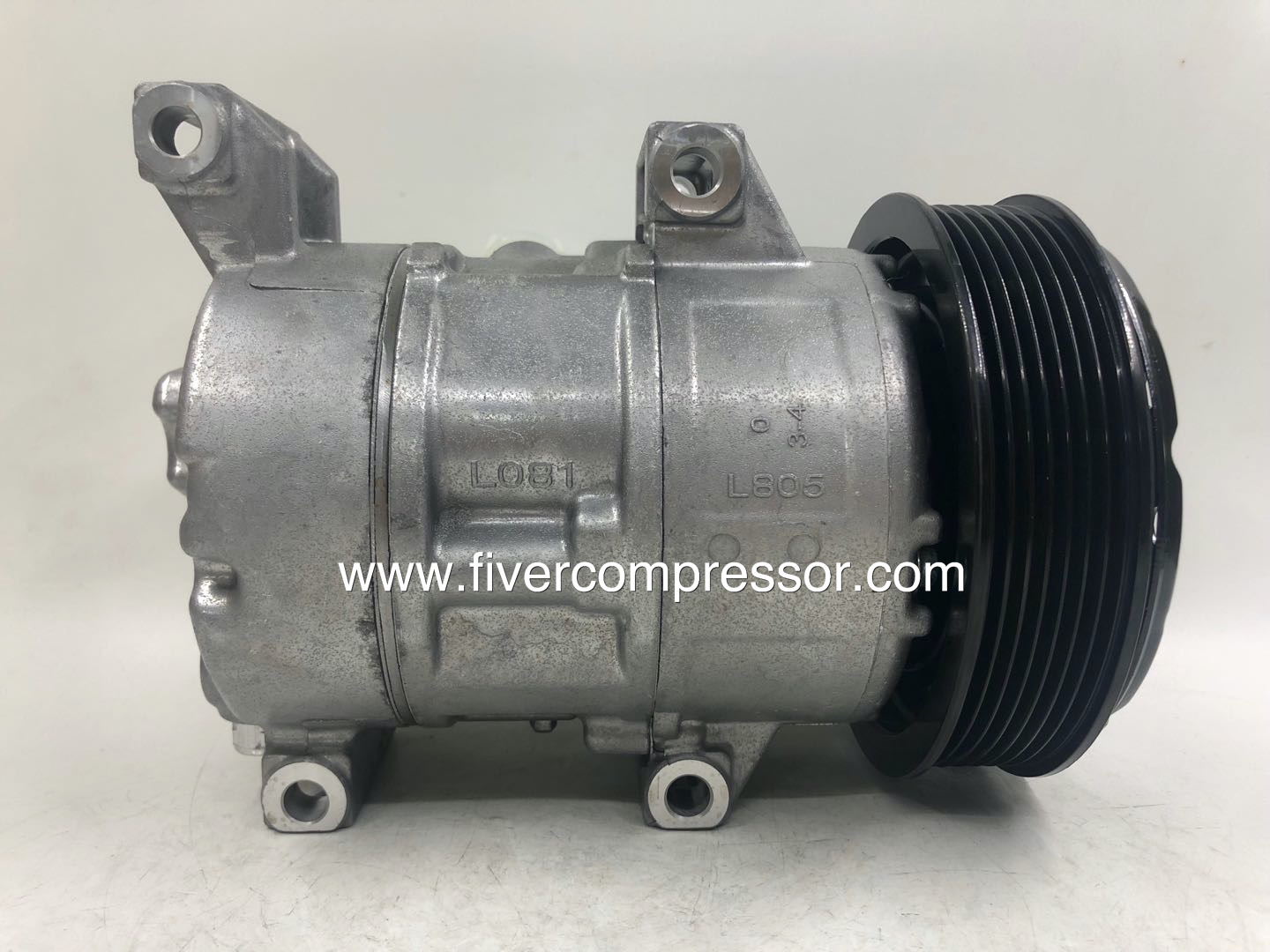

TOYOTA RAV4 ACA30 2005-2012 A/C Compressor 88310-42260 — aftermarket A/C compressor OE 88310-42260 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03

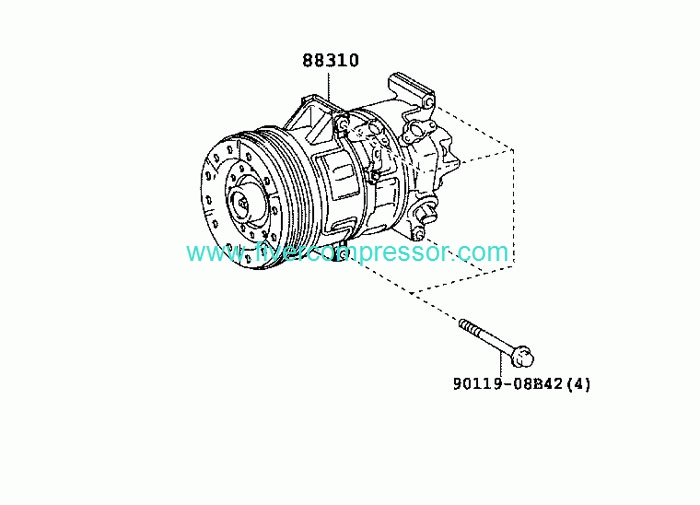

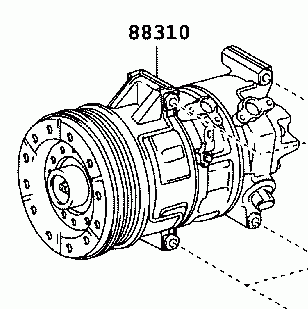

Part Name: A/C Compressor
Part Number: 88310-42260/88310-42250/88310-02400
Applied Model:
TOYOTA
| AVENSIS Saloon (ZRT27, ADT27) 2.0 D-4D | 11.2011 - .0 | Saloon |
| AVENSIS Estate (ZRT27, ADT27) 2.0 D-4D | 11.2011 - .0 | Estate |
| RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2.0 VVT-i 4WD | 03.2006 - .0 | Closed Off-Road Vehicle |
| RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2.2 D-4D 4WD | 03.2006 - .0 | Closed Off-Road Vehicle |
| RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2.2 D-CAT 4WD | 03.2006 - .0 | Closed Off-Road Vehicle |
| AURIS (NRE15_, ZZE15_, ADE15_, ZRE15_, NDE15_) 2.2 D | 03.2007 - 09.2012 | Hatchback |
| AURIS (NRE15_, ZZE15_, ADE15_, ZRE15_, NDE15_) 2.0 D-4D | 03.2007 - 09.2012 | Hatchback |
| AVENSIS Saloon (ZRT27, ADT27) 2.0 D-4D | 11.2008 - .0 | Saloon |
| AVENSIS Saloon (ZRT27, ADT27) 2.2 D-4D | 11.2008 - .0 | Saloon |
| AVENSIS Saloon (ZRT27, ADT27) 2.2 D-4D | 11.2008 - .0 | Saloon |
| AVENSIS Estate (ZRT27, ADT27) 2.0 D-4D | 02.2009 - .0 | Estate |
| AVENSIS Estate (ZRT27, ADT27) 2.2 D-4D | 02.2009 - .0 | Estate |
| AVENSIS Estate (ZRT27, ADT27) 2.2 D-4D | 02.2009 - .0 | Estate |
| RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2.2 D-4D 4WD | 12.2008 - .0 | Closed Off-Road Vehicle |
| VERSO (_AUR2_, _ZGR2_) 2.0 D-4D | 04.2009 - .0 | MPV |
| VERSO (_AUR2_, _ZGR2_) 2.2 D-4D | 04.2009 - .0 | MPV |
| VERSO (_AUR2_, _ZGR2_) 2.2 D-CAT | 04.2009 - .0 | MPV |
| RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2.2 D-4D | 12.2008 - .0 | Closed Off-Road Vehicle |
