Mazda A/C compressor

Type CR08B Supply CR08B Type 6 Grooves Automotive A/C Compressor DR08-61450, DRZ861450 for Mazda 2 2013-2014 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

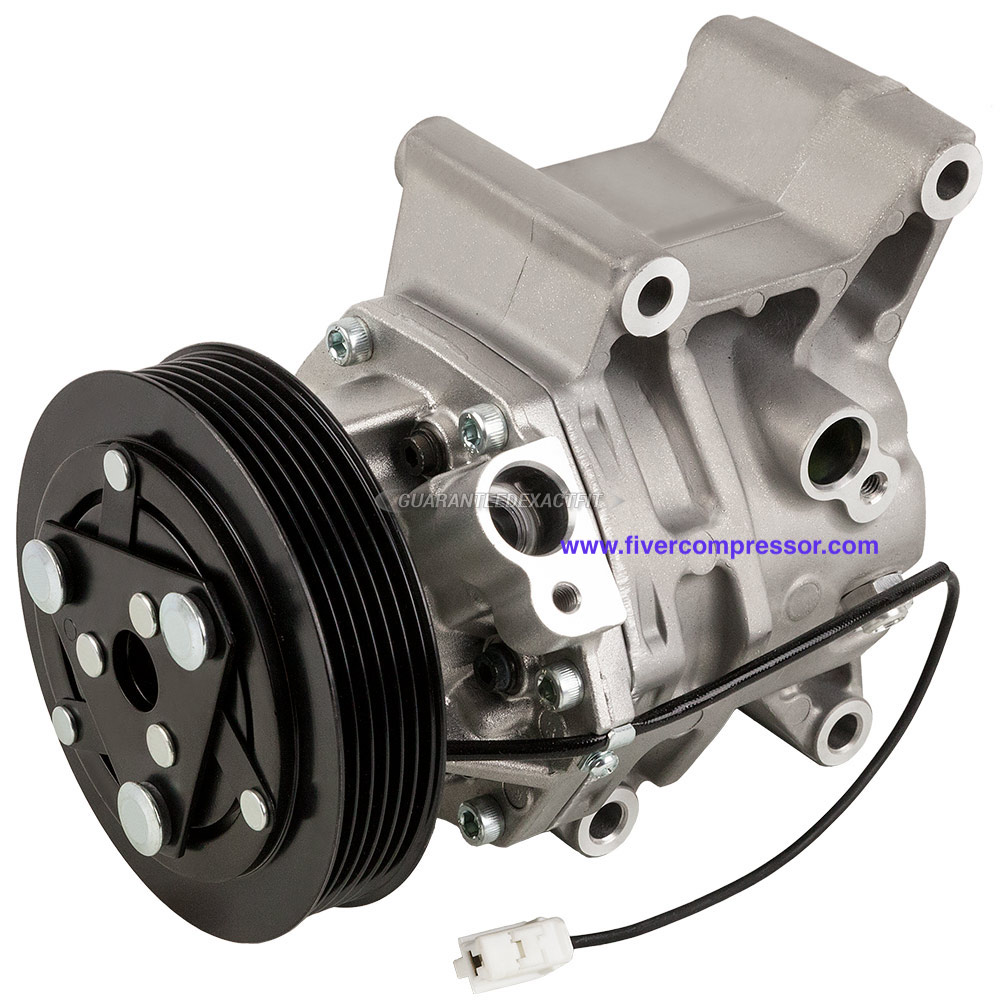

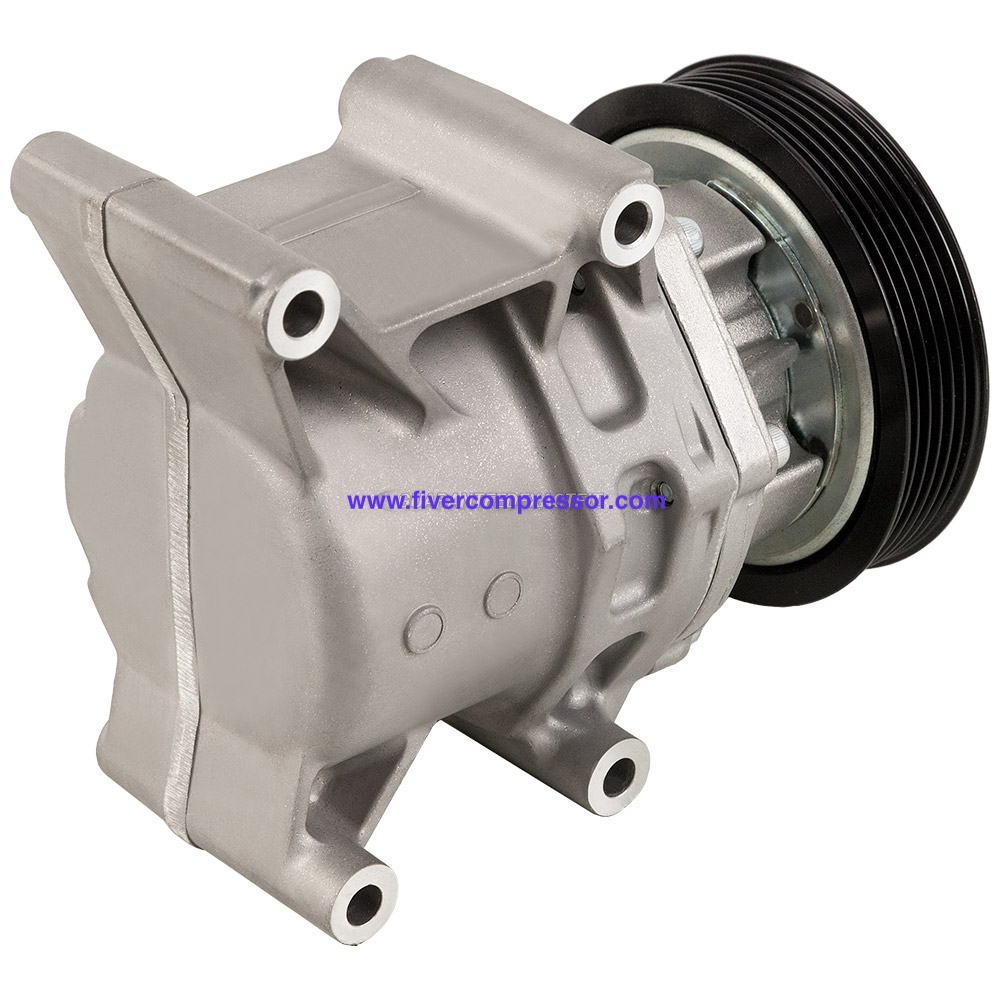

Mazda CR08B A/C compressor

Supply CR08B Type 6 Grooves Automotive A/C Compressor DR08-61450, DRZ861450 for Mazda 2 2013-2014

OE / Part number
BP4K61501A, D65161501, DR08-61450, DRZ861450

Automotive A/C Compressor for Maza 2 2013-2014; Air Conditioner Compressor for Mazda 2; Mazda 2 AC Compressor

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeCR08B
Pulley Groove6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeCR08B
Pulley Groove6PK
Coil Voltage12V
OE / Part numberBP4K61501A, D65161501, DR08-61450, DRZ861450

§ 04

Product details

Supply CR08B Type 6 Grooves Automotive A/C Compressor DR08-61450, DRZ861450 for Mazda 2 2013-2014

 Specifications
Clutch IncludedIncluded
Clutch Maximum Diameter4.63 in

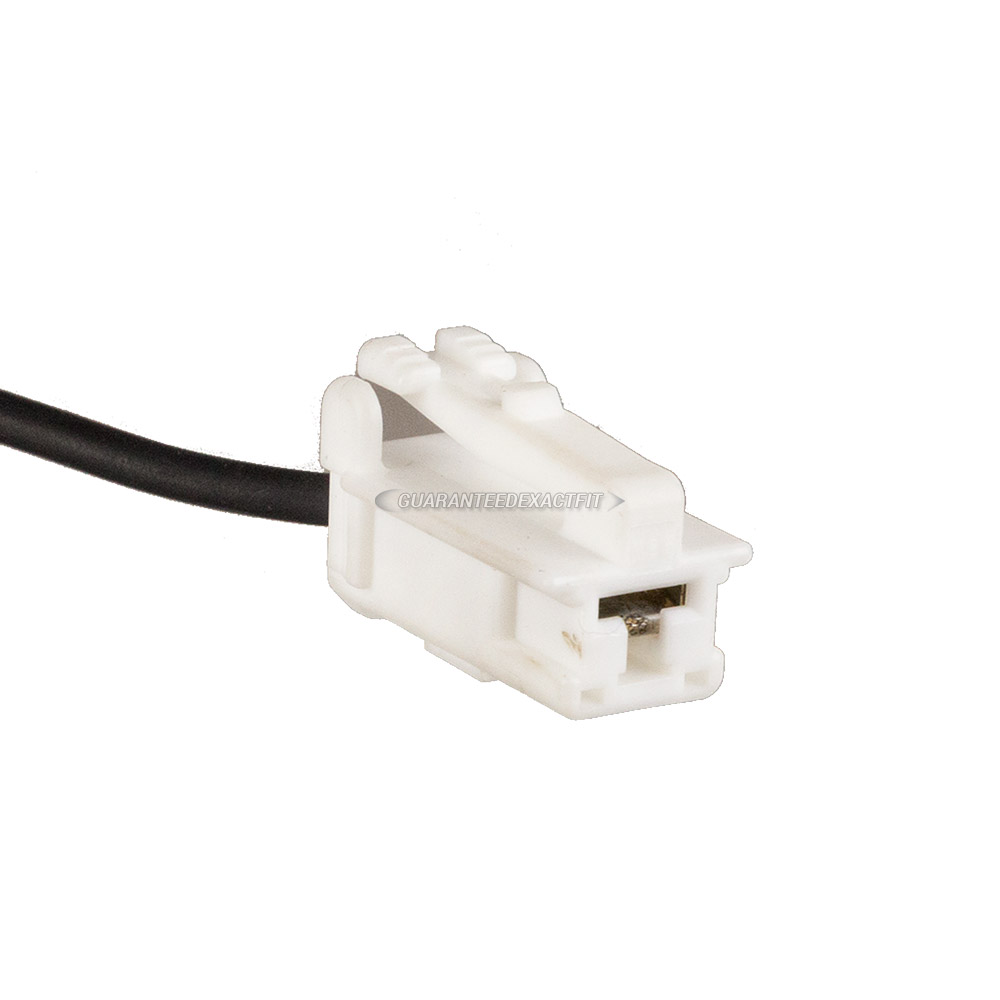

Coil Clock Position1 Wire Lead
Coil Voltage12 2H
Compatible Refrigerant Oil TypePAG 100
Compressor TypeCR08
Distance From Clutch To Mounting Flange2.59375 in
Mounting Hardware?Not Included
Mounting TypeTangent Mount
New or RemanNew

Oil FilledYes
Pulley Belt TypeSerpentine
Pulley Diameter MM117.47 mm
Pulley Groove Quantity6
Pulley Lip Diameter4.63 in
Pulley Ridge Diameter4.63 in
Refrigerant TypeR134a



VEHICLE FITMENT

2013 Mazda 2 All Models
2014 Mazda 2 All Models


OE: BP4K61501A, D65161501,DR08-61450, DRZ861450
