Toyota A/C compressor

Type 10PA17C Supply 10PA17C 4PV A/C Compressor 8832014521,88320-14520,88320-22H91 for Toyota CHASER MX83 for Toyota MARK 2 MX83 for Toyota SUPRA… 4PV · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

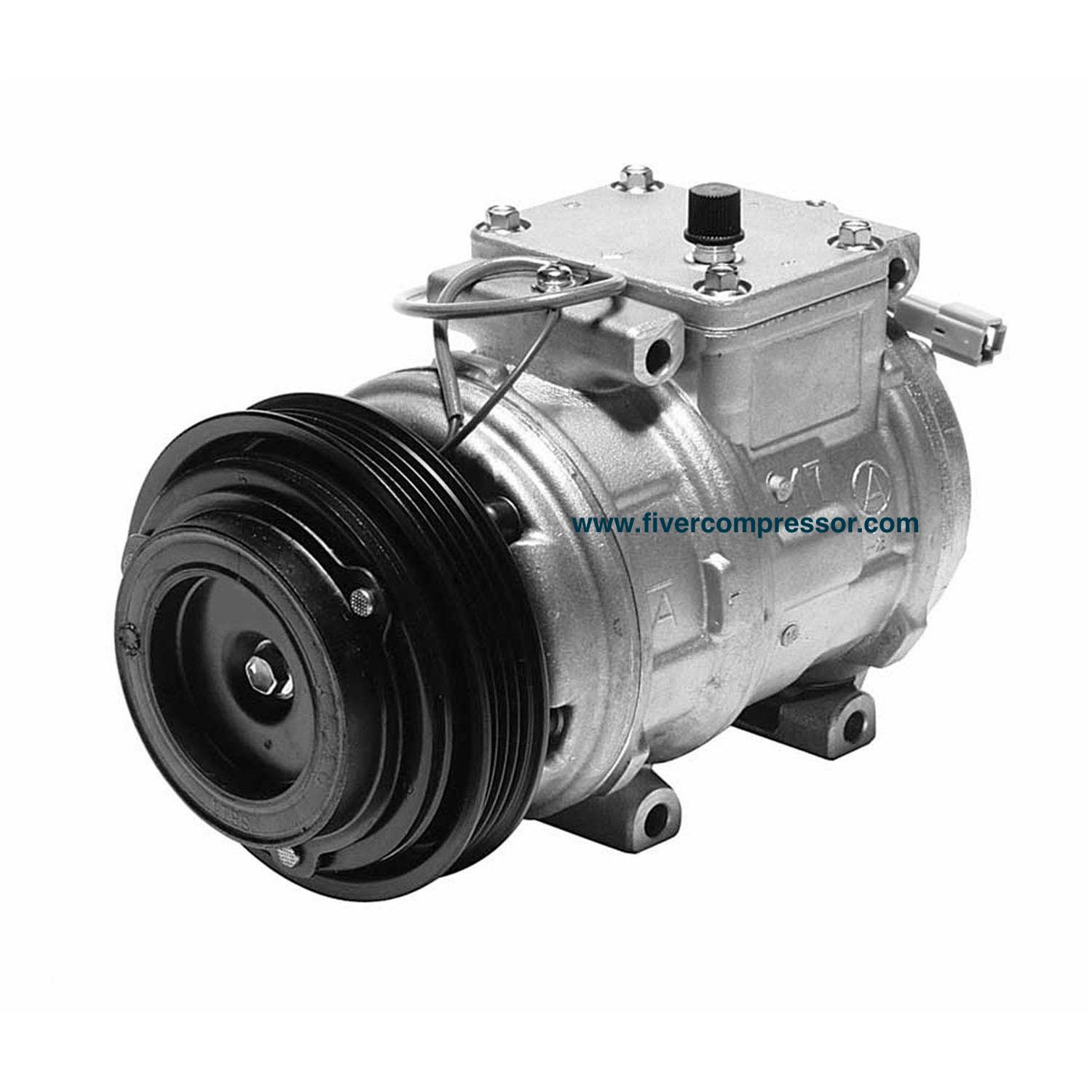

Toyota 10PA17C A/C compressor

Supply 10PA17C 4PV A/C Compressor 8832014521,88320-14520,88320-22H91 for Toyota CHASER MX83 for Toyota MARK 2 MX83 for Toyota SUPRA MA701987-1988

OE / Part number
8832014521, 88320-14520, 88320-22H91, 1471006820, 254283, 274283, 4710250, 8831014800, 8832014561, 8832014600

We are a manufacturer of auto ac compressors, based in China, offer air conditioning compressor for various makes and models, wide coverage, reliable quality,

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type10PA17C
Groove4PV

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type10PA17C
Groove4PV
Coil Voltage12V
OE / Part number8832014521, 88320-14520, 88320-22H91, 1471006820, 254283, 274283, 4710250, 8831014800, 8832014561, 8832014600
ApplicationApplications: TOYOTA

§ 04

Product details

Supply 10PA17C 4PV A/C Compressor 8832014521,88320-14520,88320-22H91 for Toyota CHASER MX83 for Toyota MARK 2 MX83 for Toyota SUPRA MA701987-1990

DENSO 4711250 Specifications
Refrigerant Type R12
Clutch Maximum Diameter 120.0 MM
Compressor Mount Hole Quantity 4
Pulley Belt Type Serpentine 4PK
Mounting Type Bolt Tangent
Applications:

TOYOTA

CHASER

MX83-BTPZF| FrameMX83gradeAVTGbodyHT |ENGINE7MGE; 3.0L Turbocharged Gas | 08.1989To10.1992 | 4FC |

CRESTA

MX83-CEPZF| FrameMX83gradeSLTGbodySED |ENGINE7MGE; 3.0L Turbocharged Gas | 08.1989To10.1992 | 4FC

CRESSIDA/ CRESSIDA WAGON

MX72LG-XWPGFA | FrameMX72bodyWG | ENGINE5MGE 2.8L Gas | 11.1984To08.1987 | USA

MX72LG-XWPGFK |FrameMX72bodyWG | ENGINE5MGE 2.8L Gas | 11.1984To08.1986 | CND


MX73L-XEMGFA | MX73L-XEPGFA | MX73L-XEPGFK | FrameMX73bodySED | ENGINE5MGE 2.8L Gas | 08.1984To08.1988 | USA

MX73L-XEMEEV | MX73L-XEMGEV | MX73L-XEMNEV | FrameMX73bodySED | ENGINE5ME | 11.1984To08.1988 | Europe

MX73L-XTMGEV | MX73L-XTPEEV | MX73L-XTPGEV | MX73L-XTMEEV | MX73L-XTMGEV |MX73L-XTPEEV | MX73L-XTPGEV |FrameMX73bodyHT | ENGINE5ME |04.1985To08.1988 | Europe

MX73L-XEMEEV | MX73L-XEMGEV |MX73L-XEMNEV |MX73L-XEPEEV |MX73L-XEPGEV |ENGINE5ME |04.1985To08.1988 |

MX83R-AEPQFQ |FrameMX83gradeGLXbodySED |ENGINE7MGE |08.1988To02.1993 | 4FC | Europe

MX83R-AEPQFQ |FrameMX83gradeGLXbodySED |ENGINE7MGE |08.1988To02.1993 | 4FC | General

MARK 2

MX83-AEPZF | FrameMX83gradeGDGbodySED| ENGINE7MGE 3.0L Turbocharged | 08.1989To02.1993 | 4FC |

MX83-ATPZF | FrameMX83gradeGDGbodyHT |ENGINE7MGE 3.0L Turbocharged| 08.1989To02.1992 | 4FC |

SOARER

MZ20-HCMVZ | MZ20-HCMZZ | MZ20-HCPVZ | MZ20-HCPZZ | MZ20-HCMVZ | MZ20-HCMZZ | MZ20-HCPVZ | MZ20-HCPZZ | FrameMZ20gradeGTLbodyCP |ENGINE7MGTEU3.0L Turbocharged |01.1986 To04.1991 |

MZ20-HJPVZ | FrameMZ20gradeGTbodyAEC |ENGINE7MGTEU3.0L Turbocharged |04.1989To05.1989 |


MZ21-HCMZZ | MZ21-HCPZZ | MZ21-HCMZZ | MZ21-HCPZZ | FrameMZ21gradeGTLbodyCP |ENGINE7MGTEU3.0L Turbocharged |01.1986 To04.1991 |

SUPRA

MA70-BJMZZ |MA70-BJPVZ | MA70-BJPZZ |MA70-BJMVZ | MA70-BJMZZ | MA70-BJPVZ | MA70-BJPZZ |FrameMA70gradeGTTbodyAET | ENGINE7MGTEU3.0L Turbocharged|06.1986To 08.1990 |

MA70-BLMZZ | MA70-BLPVZ |MA70-BLPZZ | MA70-BLMVZ |MA70-BLMXZ | MA70-BLMZZ | MA70-BLPVZ | MA70-BLPZZ |FrameMA70gradeGTLbodyLB |ENGINE7MGTEU3.0L Turbocharged | 08.1988To08.1990 |

MA70L-BJMVFA |MA70L-BJMVFK | MA70L-BJMVZA | MA70L-BJMVZK | MA70L-BJPVFA | MA70L-BJPVFK | MA70L-BJPVZA | MA70L-BJPVZK |MA70L-BLMVFA | MA70L-BJMVF | MA70L-BJMVFC | MA70L-BJMVFV | MA70L-BJMVFW | MA70L-BJMVZC | MA70L-BJPVF | MA70L-BJPVFC | MA70R-BJMVFW | MA70R-BJPVF | FrameMA70bodySPR |ENGINE7MGTEU3.0L Turbocharged | 04.1986To08.1988 | EUROPE


Alternate/OEM Part Number(s): 1471006820, 254283, 274283, 4710250, 8831014800, 8832014521, 8832014561, 8832014600,88320-14521,88320-14520,88320-22H91
