New OEM HCC-RS13 PV6 HVAC A/C Compressor KD4561450, KD4561450A BFD161450 for Mazda CX-5 2013-2020
OE KD4561450, KD4561450A, HCC-RS13
FIVER AUTOPARTS CO.,LTD
Mazda A/C compressor
A1 · 12V
Auto AC Compressor for Mazda RX-7; Mazda B2200 AC Compressor; China A/C Compressor manufacturer; Compressor Assy Cooler
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04

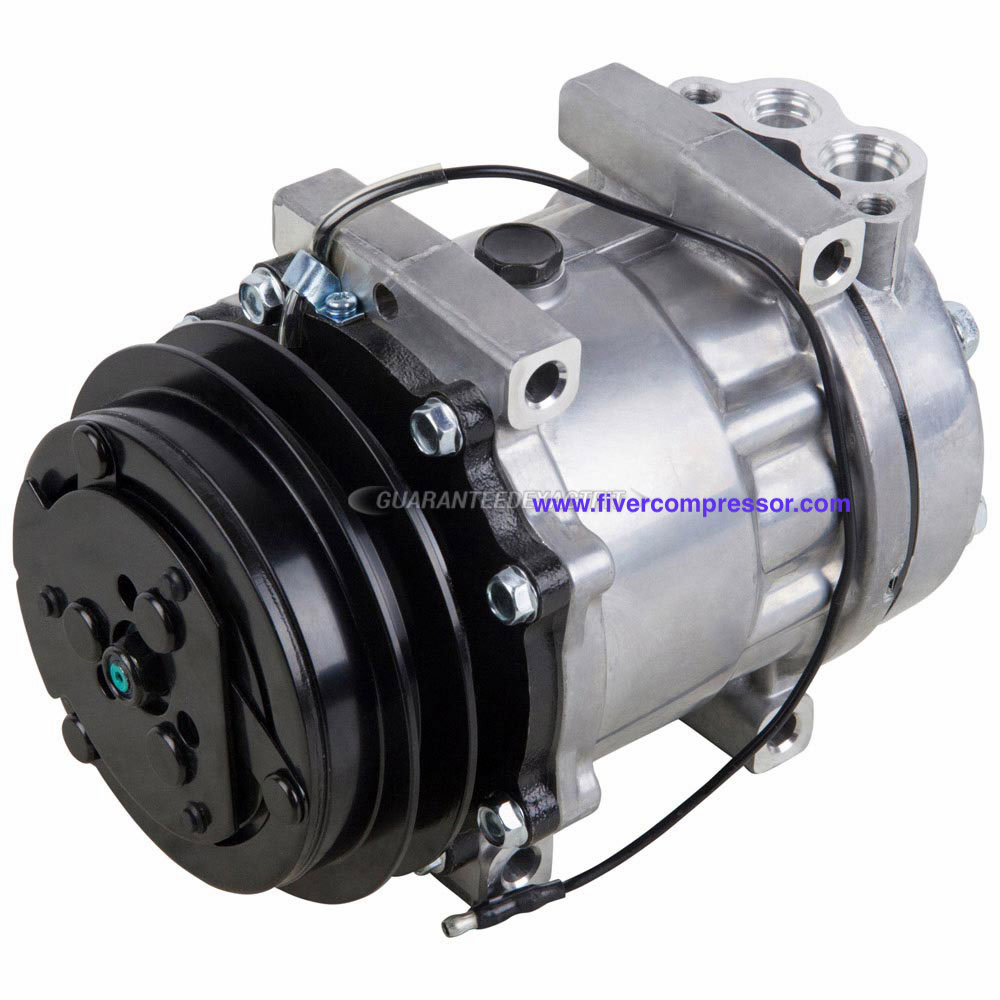

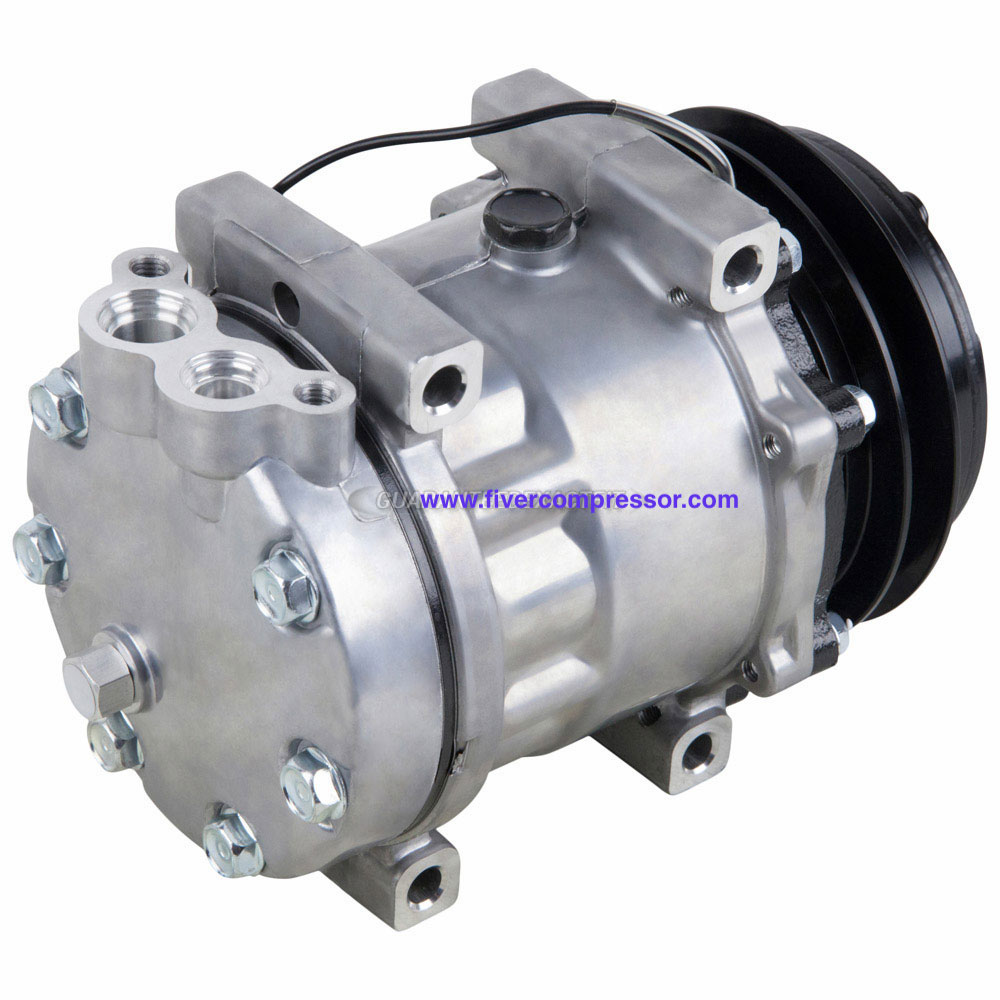

SD708 Type Auto A/C Compressor 67D00A7P 000067D00A7P for Mazda RX-17 Compressor Assy Cooler for Mazda B2200 1989-1993

| Specifications | |
|---|---|
| Belt Width IN | 0.500 in |
| Clutch Included | Included |
| Clutch Maximum Diameter | 5.000 in |
| Coil Clock Position | 1 Wire Lead |
| Coil Voltage | 12 2H |
| Comp Head Prt Config | Rear-Vert-Pad |
| Compatible Refrigerant Oil Type | PAG 100 |
| Compressor Head Type | UW |
| Compressor Type | SD708 |
| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 1.453125 in |
| Mounting Hardware? | Not Included |
| Mounting Type | Ear Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24613] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24622] / Green O-Ring |
| O-Ring B Quantity | 1 |
| Oil Filled | Yes |
| Pulley Belt Type | V-Belt |
| Pulley Diameter MM | 127.000 MM |
| Pulley Groove Quantity | 1 |
| Pulley Lip Diameter | 5.000 in |
| Pulley Ridge Diameter | 5.000 in |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |
| Terminal Type | Butt |
| Type | Sanden/Sankyo |
1990 Mazda RX-7 With Sanden SD708 [7229]
1987 Mazda B-Series Truck With Sanden SD708 [7229]
1988 Mazda B-Series Truck With Sanden SD708 [7229]
1989 Mazda B-Series Truck With Sanden SD708 [7229]
1990 Mazda B-Series Truck With Sanden SD708 [7229]
1989 Mazda RX-7 With Sanden SD708 [7229]
1991 Mazda RX-7 With Sanden SD708 [7229]
Alternate/OEM Part Number(s): 000067D00A7P, 19192321, 67D00A7P, 88918930, 89000150, UD0161450A
§ 05
OE KD4561450, KD4561450A, HCC-RS13
OE D09W61450, 88310WB001
OE TK4861450, KD4561450, KD4561450A
