Toyota A/C compressor

Type SCSA06 SCSA06-4PK-12V A/C Compressor 88310-52220, 88310-52351, 88310-52381,4711341,8832052400 for Toyota Echo L4 1.5 2000-2005 4PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

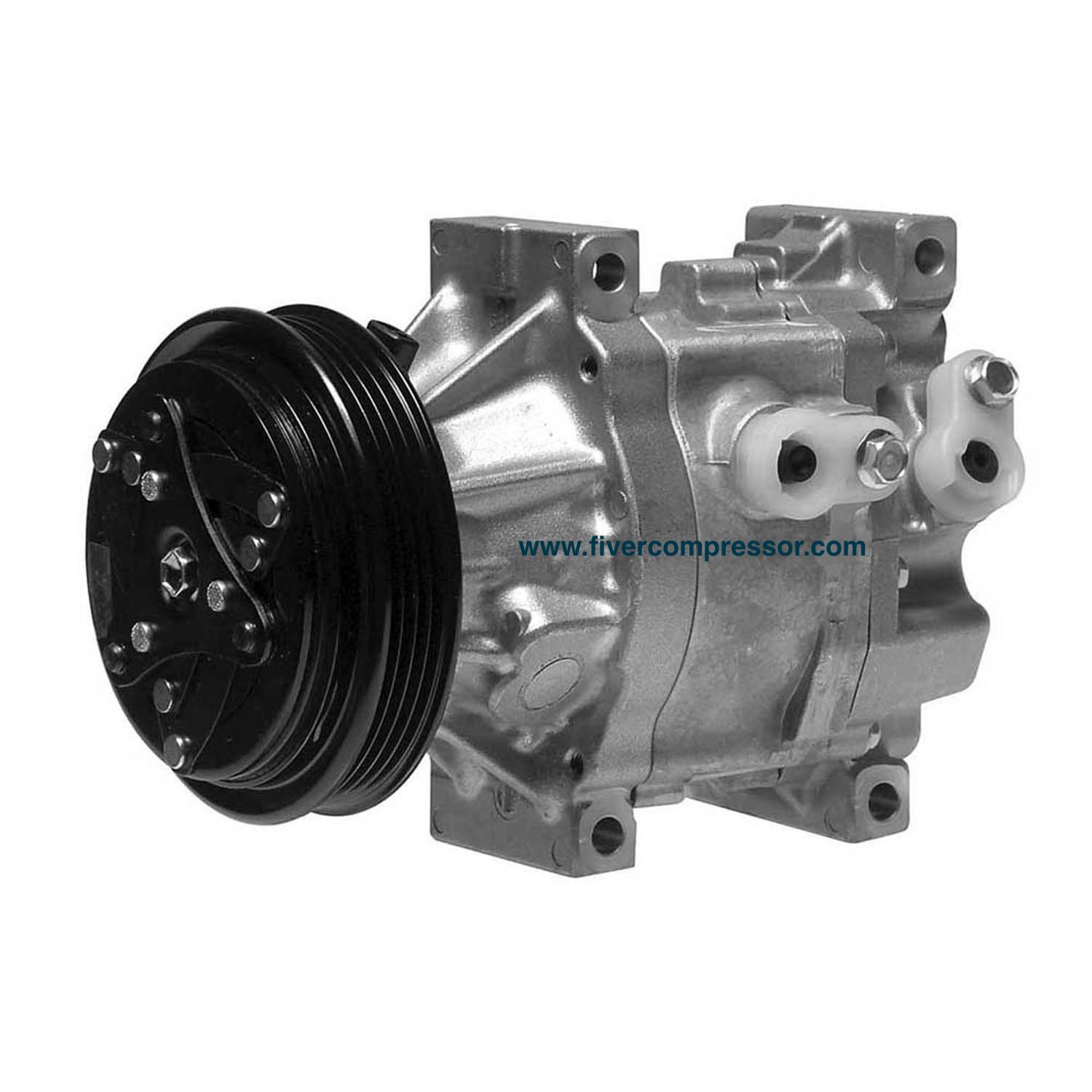

Toyota SCSA06 A/C compressor

SCSA06-4PK-12V A/C Compressor 88310-52220, 88310-52351, 88310-52381,4711341,8832052400 for Toyota Echo L4 1.5 2000-2005

OE / Part number
88310-52220, 88310-52351, 88310-52381, 4711341, 8831052080, 8831052120, 8831052350, 8831052350A, 8832052010, 8832052040, 8832052120, 8832052400, 254520, 275795, 4471001652, 4471709370, 4471806190, 4471808750…

This Compressor is a aftermarket for Toyota Echo L4 1.5L 2000-2005, compatible with following OE 88310-52220, 88310-52351, 88310-52381,4711341, 8831052080, 8831052120, 8831052350, 8831052350A,8832052010, 8832052040, 8832052120, 8832052400

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

TypeSCSA06
Groove4PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

TypeSCSA06
Groove4PK
Coil Voltage12V
OE / Part number88310-52220, 88310-52351, 88310-52381, 4711341, 8831052080, 8831052120, 8831052350, 8831052350A, 8832052010, 8832052040, 8832052120, 8832052400, 254520, 275795, 4471001652, 4471709370, 4471806190, 4471808750, 4472206068, 4472607301, 4472607812, 4710341…
ApplicationApplications: Make Model Engine Year

§ 04

Product details

SCSA06-4PK-12V A/C Compressor 88310-52220, 88310-52351, 88310-52381,4711341, 8831052080, 8831052120, 8831052350, 8831052350A,8832052010, 8832052040, 8832052120, 8832052400 for Toyota Echo L4 1.5 2000-2005


 Specifications
Refrigerant TypeR134a
Clutch Maximum Diameter110.0 mm
Compressor Mount Hole Quantity4
Pulley Belt TypeSerpentine 4PK
Mounting TypeBolt Tangent


Applications:

 Make Model Engine Year

Toyota Echo L4 1.5L 2000-2005


Alternate/OEM Part Number(s): 254520, 275795, 4471001652, 4471709370, 4471806190, 4471808750, 4472206068, 4472607301, 4472607812, 4710341, 4710486, 4710487,4711341, 8831052080, 8831052120, 8831052350, 8831052350A, 8831052351, 8832052010, 8832052040, 8832052120, 8832052400.
