Mercedes-Benz A/C compressor

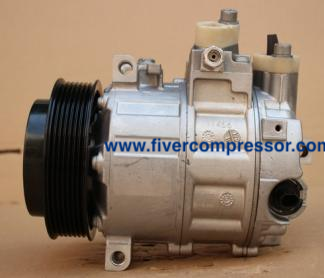

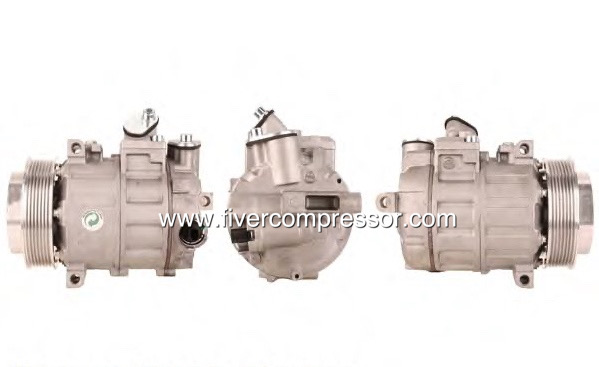

Mercedes Benz Auto Ac Compressor 0022304911 for C-Class W204, S204
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Mercedes-Benz A/C compressor

Mercedes Benz Auto Ac Compressor 0022304911 for C-Class W204, S204

OE / Part number
0022304911

Mercedes Benz Auto Ac Compressor 0022304911 for C-Class W204, S204 — aftermarket A/C compressor OE 0022304911 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelMercedes Benz A/C Compressor / A/C compressor for Mercedes Benz / ac Compressor for Benz C-class / Auto A/C Compressor suppler
OE / Part number0022304911
ApplicationApplications: MERCEDES-BENZ

§ 03

Product details

Characters of products from fivercompressor.com
Precision machined ports for OE hose fitment.
Internal pistons are PTFE surface treated for longlife durability;
Robotic weldding for precise and consistent quality;
Internal valves are engineered with light weight aluminum alloy for optimize cooling;
OE connectors are available for most applications, no need reposition or splice wiring during installations;
Beering structured to withstand tension and stree for maximum durability.


Part Name: AC Compressor for Mercedes Benz C-Class

OE: 0022304911

Compressor Type:DCS-17E

Clutch info: 120mm 7PK

Applications:

MERCEDES-BENZ

C-CLASS (W204) C 180 Kompressor (204.046) 01.2007 - 01.2014 Saloon
C-CLASS (W204) C 200 Kompressor (204.041) 01.2007 - 01.2014 Saloon
C-CLASS T-Model (S204) C 180 Kompressor (204.246) 08.2007 - 08.2014 Estate
C-CLASS T-Model (S204) C 200 Kompressor (204.241) 08.2007 - 08.2014 Estate
C-CLASS (W204) C 180 Kompressor (204.044, 204.045) 01.2008 - 01.2014 Saloon
