New OEM HCC-RS13 PV6 HVAC A/C Compressor KD4561450, KD4561450A BFD161450 for Mazda CX-5 2013-2020
OE KD4561450, KD4561450A, HCC-RS13
FIVER AUTOPARTS CO.,LTD
Mazda A/C compressor
4PK · 12V
Mazda RX-8 A/C Compressor; Auto AC Compressor for Mazda Miata; Automotive A/C Compressor Manufacturer; Compressor Assy Cooler
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04

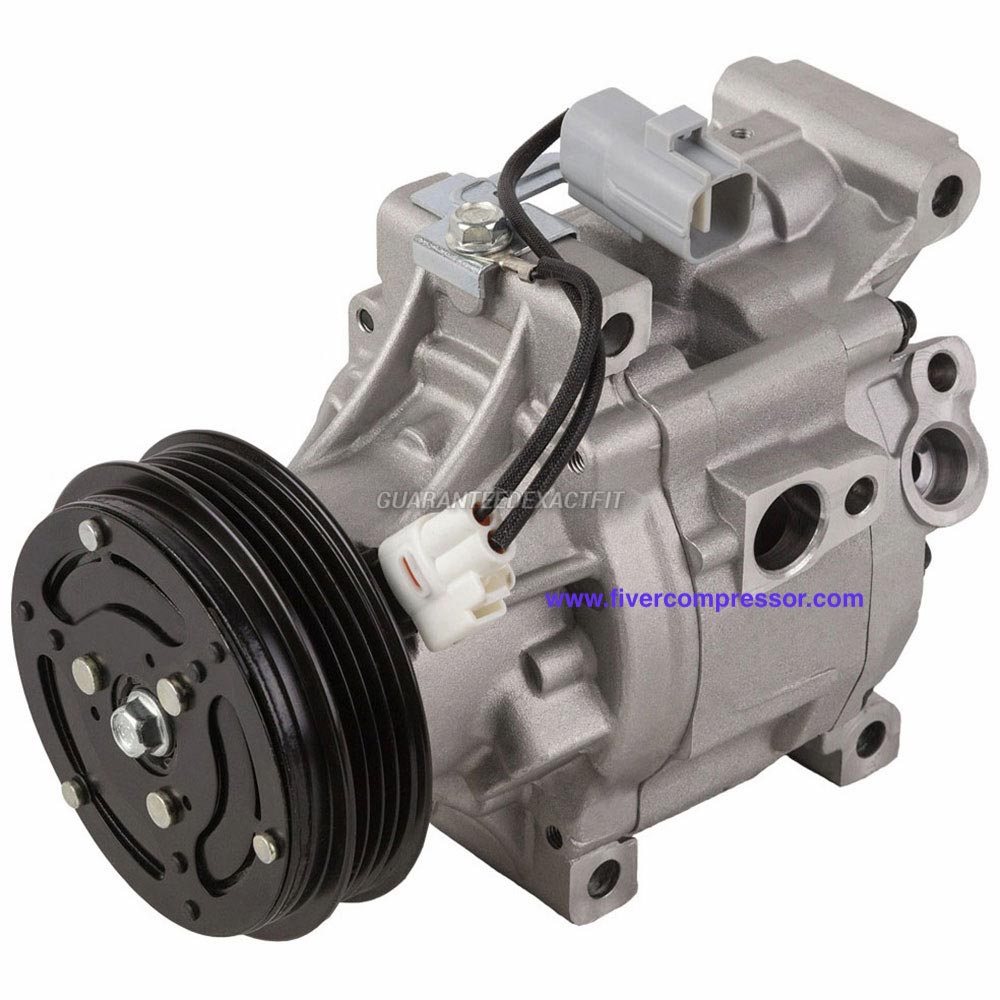

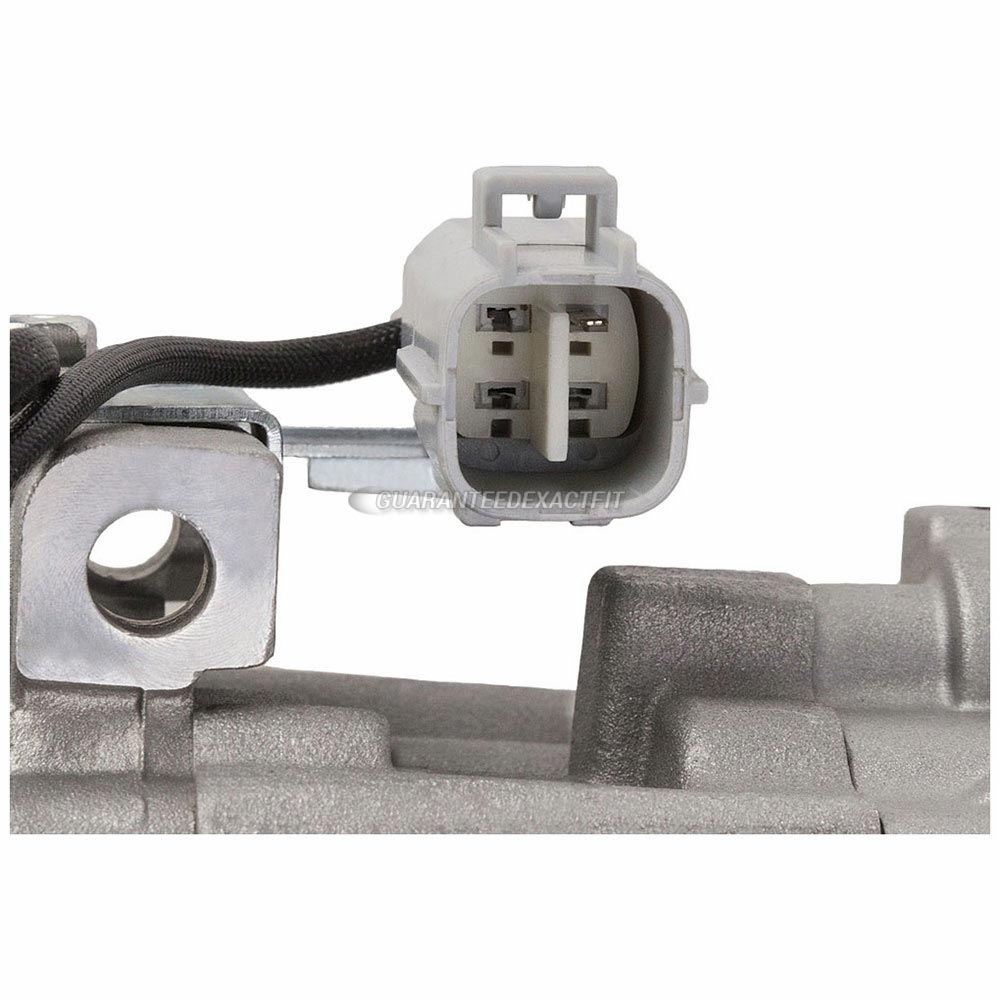

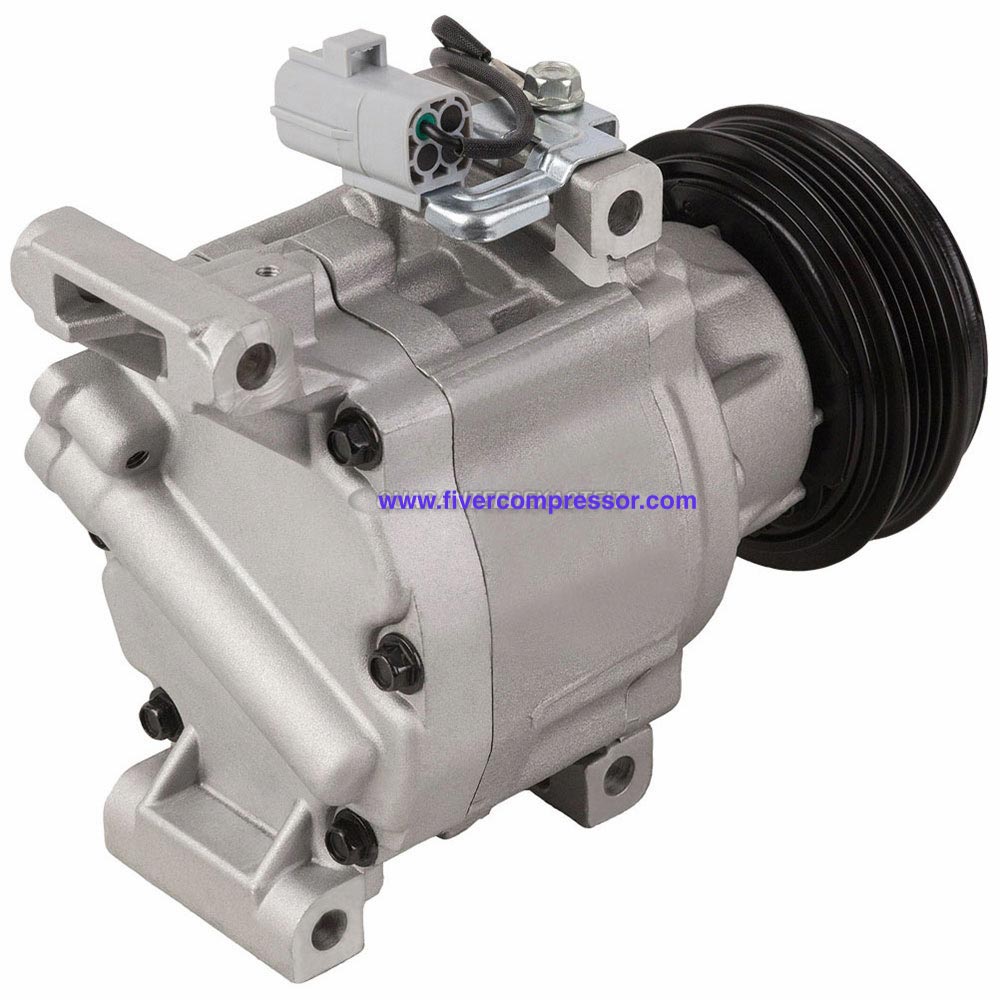

Mazda RX-8 1.3L 2004-2011 SCSA06 Type 4PK A/C Compressor F15161K00, F15161K00A for Mazda Miata 2004-2005

| Specifications | |
|---|---|
| Refrigerant Type | R134a |
| Clutch Maximum Diameter | 93.0 MM |
| Compressor Mount Hole Quantity | 4 |
| Pulley Belt Type | Serpentine |
Mounting Type Pulley Grooves | Bolt Tangent 4 |
VEHICLE FITMENT
2004 Mazda Miata 1.8L From VIN 400141 [8-2-2003 Production Date]
2005 Mazda Miata All Models
2004 Mazda RX-8 All Models
2005 Mazda RX-8 All Models2006 Mazda RX-8 All Models
2007 Mazda RX-8 All Models
2008 Mazda RX-8 All Models
2009 Mazda RX-8 All Models
2010 Mazda RX-8 All Models
2011 Mazda RX-8 All Models
Alternate/OEM Part Number(s): 255651, 275821, 4471809610,15161K00, 4710488, F15161K00, F15161K00A
§ 05
OE KD4561450, KD4561450A, HCC-RS13
OE D09W61450, 88310WB001
OE TK4861450, KD4561450, KD4561450A
