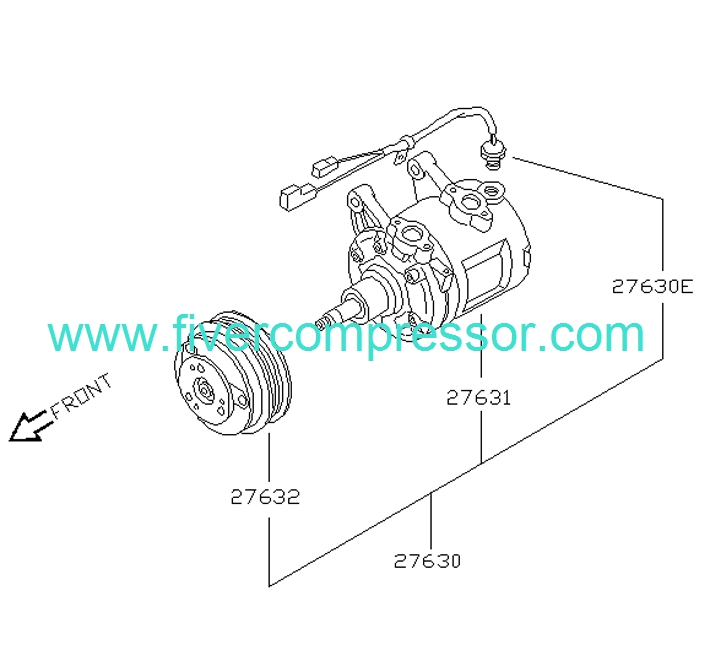

Nissan A/C compressor

KOMPRESSOR 92600-46L80 92600-40F70 92600-46L72 NISSAN 200SX
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Nissan A/C compressor

KOMPRESSOR 92600-46L80 92600-40F70 92600-46L72 NISSAN 200SX

OE / Part number
92600-46L80, 92600-40F70, 92600-46L72, 92600-46L71

KOMPRESSOR 92600-46L80 92600-40F70 92600-46L72 NISSAN 200SX — aftermarket A/C compressor OE 92600-46L80 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

OE / Part number92600-46L80, 92600-40F70, 92600-46L72, 92600-46L71
ApplicationNISSAN 200SX [S13] 09.1988-12.1993

§ 03

Product details

Part Name: KOMPRESSOR
Part Number: 92600-46L80 92600-40F70 92600-46L72 92600-46L71
Application: NISSAN 200SX [S13] 09.1988-12.1993
Remarks: COMPRESSOR ASSY-COOLER. Applied Model: *FB; Specification: F/AIR CON-STD TYPE; (09.92 - 08.93)
