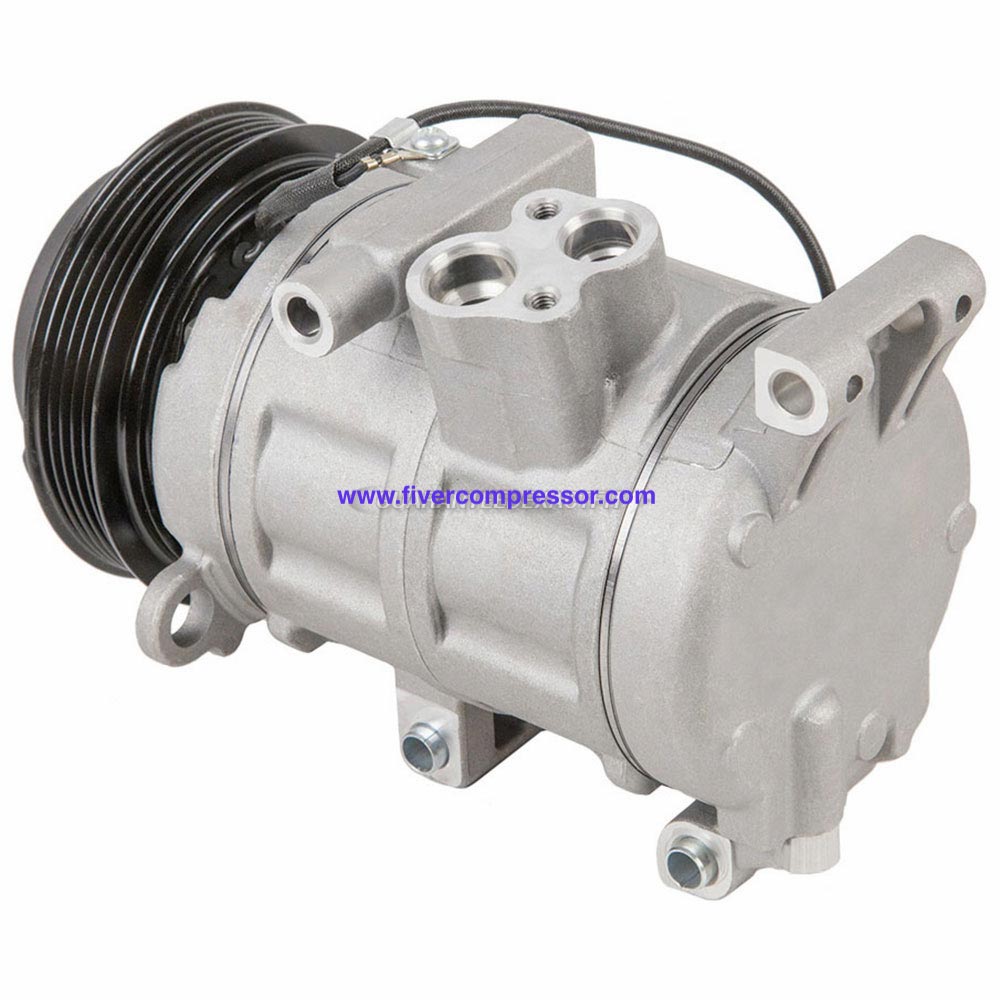

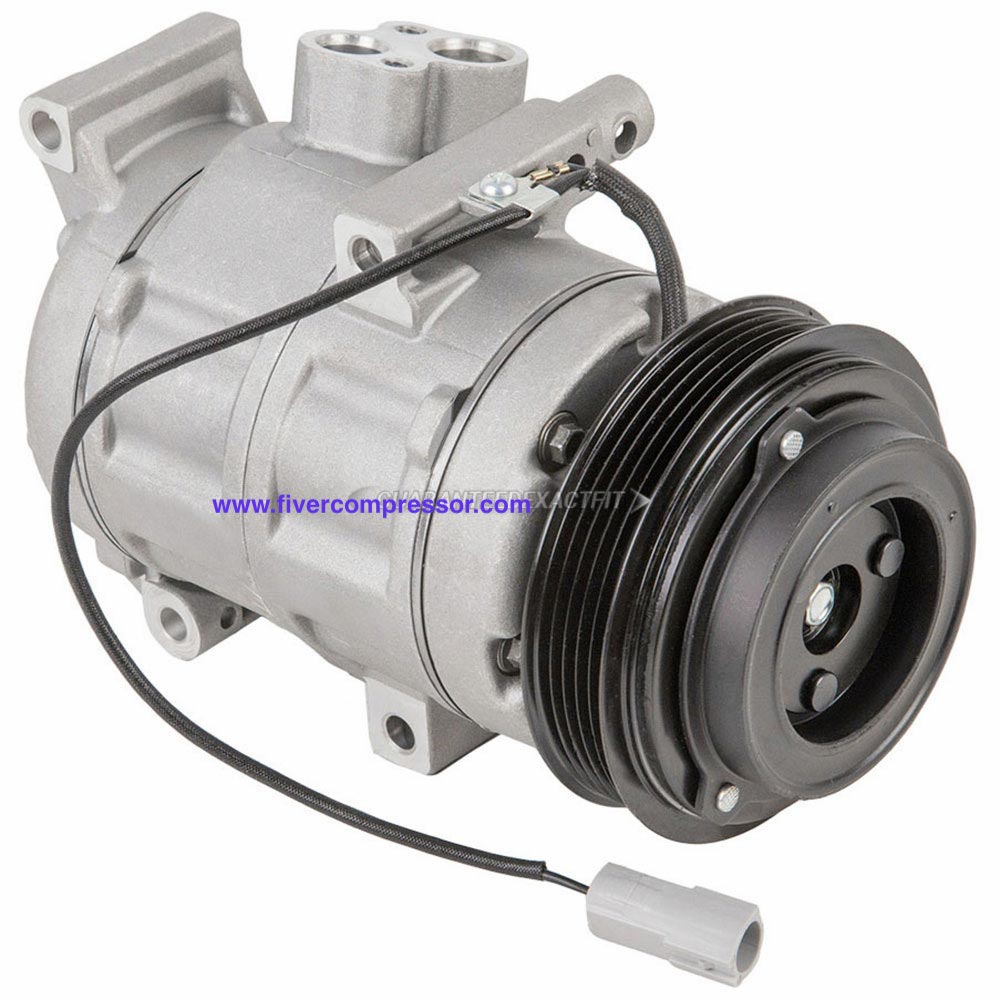

New OEM HCC-RS13 PV6 HVAC A/C Compressor KD4561450, KD4561450A BFD161450 for Mazda CX-5 2013-2020
OE KD4561450, KD4561450A, HCC-RS13
FIVER AUTOPARTS CO.,LTD
Mazda A/C compressor
5PK · 12V
MAZDA A/C Compressor; A/C Compressor for Mazda 3 2010-2013; Mazda 3 Air Conditioning Compressor; China A/C Compressor manufacturer
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04
HS18 Type 5 Grooves A/C Compressor BBM461450A, BBM461450B, BBM461450C for Mazda 3 2.0L 2010-2013

| Specifications | |
|---|---|
| Clutch Included | Included |
| Clutch Maximum Diameter | 4.453125 in |
| Coil Clock Position | 1 Wire Lead |
| Coil Voltage | 12 2H |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | HCC-HS18N |
| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 2.984375 in |
| Mount Distance MM | 75.692 mm |
| Mounting Hardware? | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | New |
| Oil Filled | Yes |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 113.030 MM |
| Pulley Groove Quantity | 5 |
| Pulley Lip Diameter | 4.453125 in |
| Pulley Ridge Diameter | 4.453125 in |
| Refrigerant Type | R134a |
VEHICLE FITMENT
2010 Mazda 3 2.0L Engine
2011 Mazda 3 2.0L Engine
2012 Mazda 3 2.0L Engine - with 5 Speed Automatic Transmission
2013 Mazda 3 2.0L Engine - with 5 Speed Automatic Transmission
2012 Mazda 3 2.0L Engine - with 5 Speed Manual Transmission
2013 Mazda 3 2.0L Engine - with 5 Speed Manual Transmission
Alternate/OEM Part Number(s): BBM461450A, BBM461450B, BBM461450C
§ 05
OE KD4561450, KD4561450A, HCC-RS13
OE D09W61450, 88310WB001
OE TK4861450, KD4561450, KD4561450A
