COMPRESSOR-COOL 92600-02N70 92610-02N61 92600-02N60 NISSAN URVAN and NISSAN HOMY
OE 92600-02N70, 92610-02N61, 92600-02N60
FIVER AUTOPARTS CO.,LTD
Nissan A/C compressor
7PK · 12V
Nissan AC Compressor; A/C Compressor for Nissan Titan; Nissan Titan Air Conditioning Compressor; 926009FU3A 92600EZ30B
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04

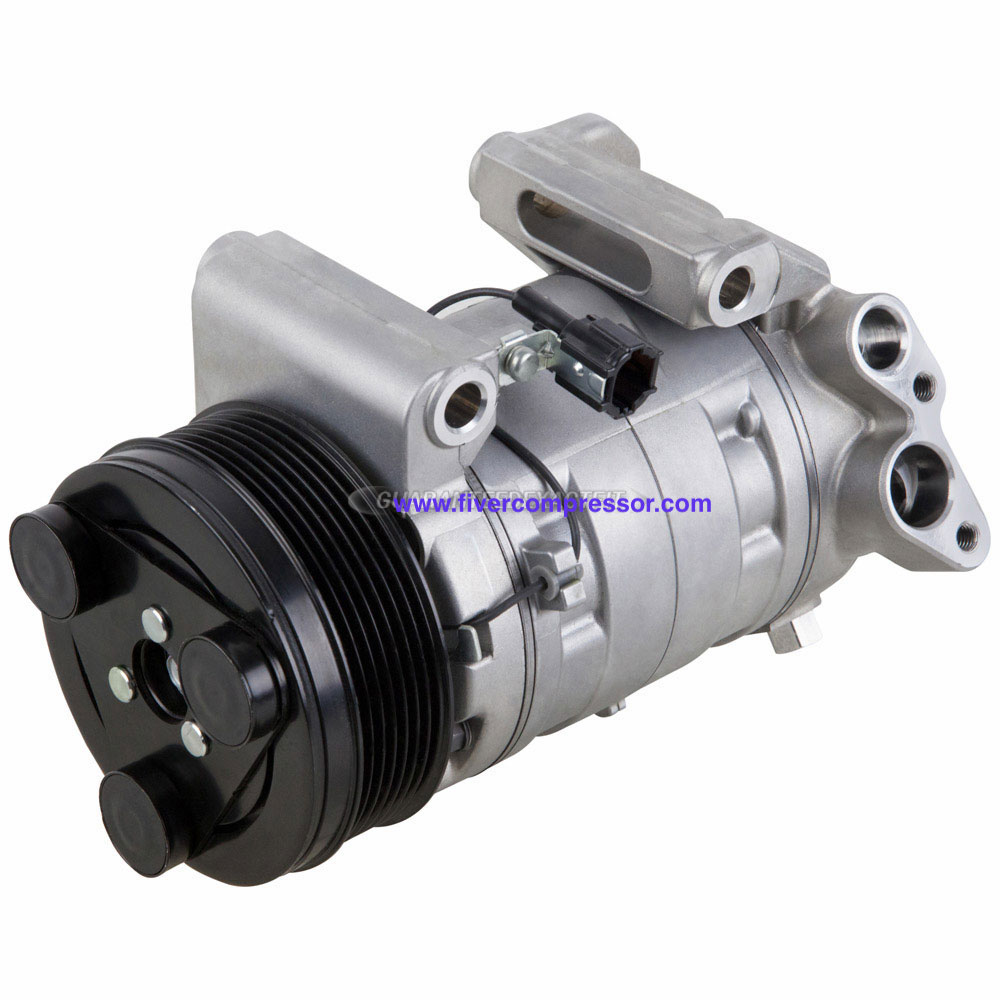

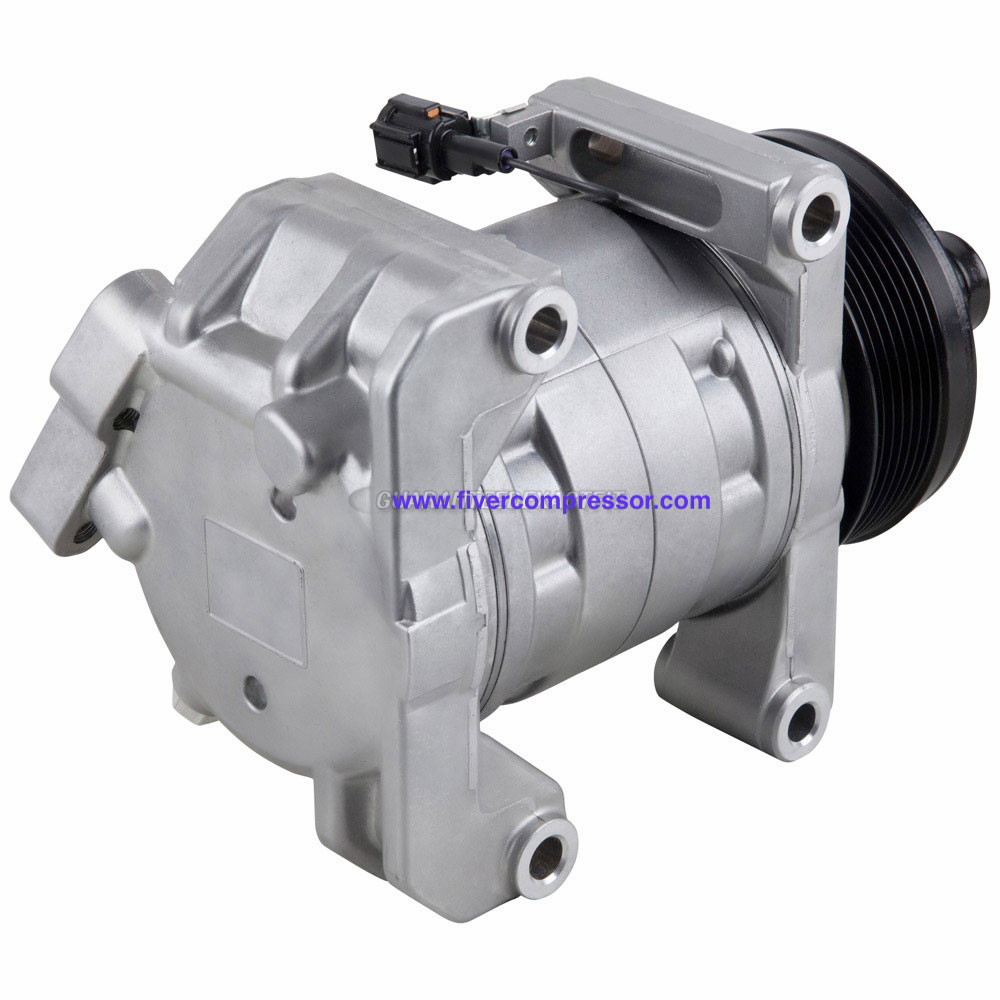

DKS17DT-7PK-12V COMPRESSOR ASSY-COOLER 926009FU3A 92600EZ30B for Nissan Titan/ Titan XD 5.6L V8 2016-2019

| Specifications | |
|---|---|
| [A/C Compressor] - Clutch Included | Included |

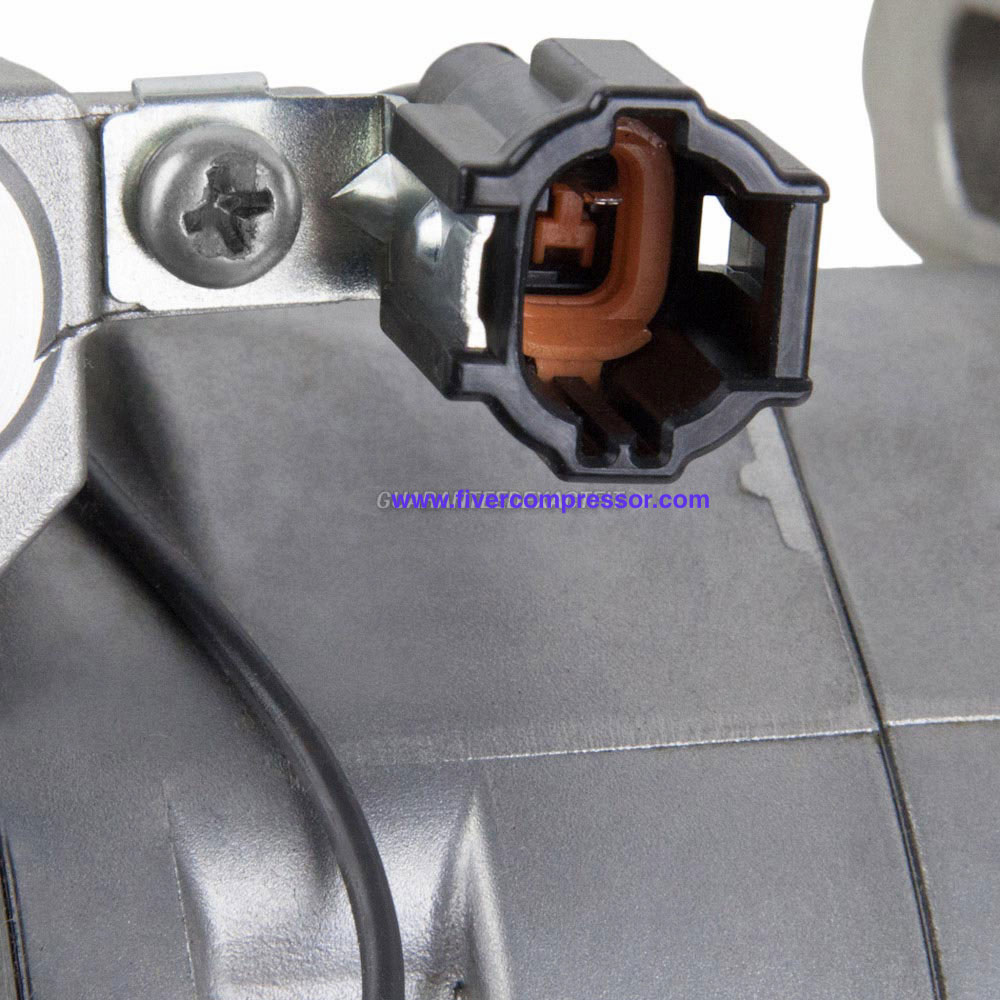

| [A/C Compressor] - Coil Clock Position | 1 Wire Lead |
| [A/C Compressor] - Coil Voltage | 12 2H |
| [A/C Compressor] - Compatible Refrigerant Oil Type | PAG 46 |
| [A/C Compressor] - Compressor Type | DKS17D |
| [A/C Compressor] - Mounting Type | Tangent Mount |
| [A/C Compressor] - Oil Filled | Yes |
| [A/C Compressor] - Pulley Belt Type | Serpentine |
| [A/C Compressor] - Pulley Groove Quantity | 7 |
| [A/C Compressor] - Refrigerant Type | R134a |
[A/C Compressor] - Terminal Type Pulley Diameter | Pin 110MM |
| Year | Make | Model | Body & Trim | Engine & Transmission |
|---|---|---|---|---|
| 2016-2019 | Nissan | Titan | PRO-4X, Platinum Reserve, S, SL, SV | 5.6L V8 - Gas |
| 2016-2019 | Nissan | Titan XD | PRO-4X, Platinum Reserve, S, SL, S V | 5.6L V8 - Gas |
Alternate/OEM Part Number(s): 926001LA0A, 926001LA0B, 926001LA0C, 926001LA0D, 926001LA1D, 926001LA2A, 926001LA2B, 926001LA2C, 926001LA2D, 926001LA3D, 926007J00A, 926007S000, 926009FE0A, 926009FE0B, 926009FE0D, 926009FE1D, 926009FU3A, 92600EZ30A, 92600EZ30B, 92600EZ30C, 92600ZJ00A, 92600ZJ00B, 92600ZL10B, 92600ZV00A, 92600ZV00B
§ 05
OE 92600-02N70, 92610-02N61, 92600-02N60
OE 92600-06F05, 40630-45010
OE 92600-5AA0A, 926005AA0A, 92600-9UA0A
OE 92600-1CB0A, 92600-1CB0B, 926001CA1D
