Mazda A/C compressor

Type DKS17DS DKS17DS Type 6 Grooves MAZDA A/C Compressor Z0005770 GS3L61450D for Mazda 6 2.5L 2009-2013 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

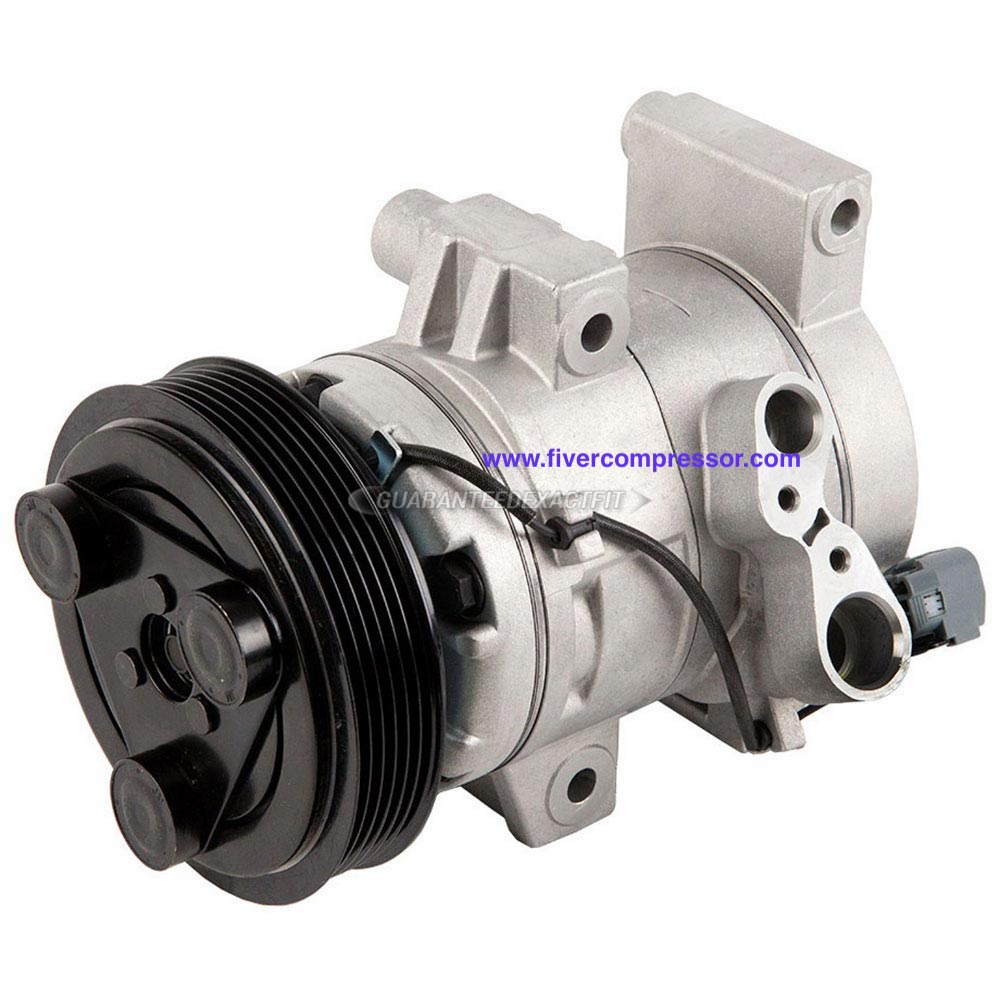

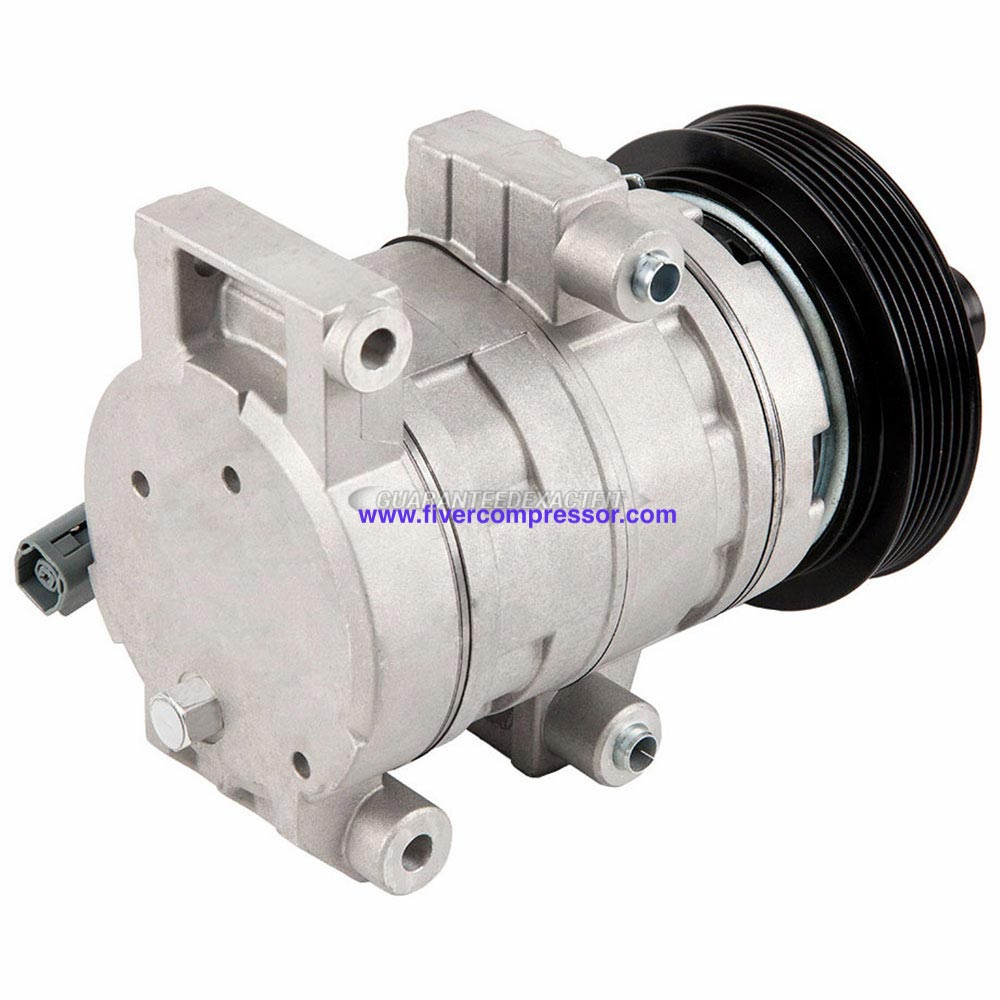

Mazda DKS17DS A/C compressor

DKS17DS Type 6 Grooves MAZDA A/C Compressor Z0005770 GS3L61450D for Mazda 6 2.5L 2009-2013

OE / Part number
Z0005770, GS3L61450D, GS3L61450E, 9M8119D629AE

Auto AC Compressor for Mazda 6 2009-2013; AC Compressor Cooler; Automotive A/C Compressor Manufacturer

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeDKS17DS
Pulley Grooves6PK

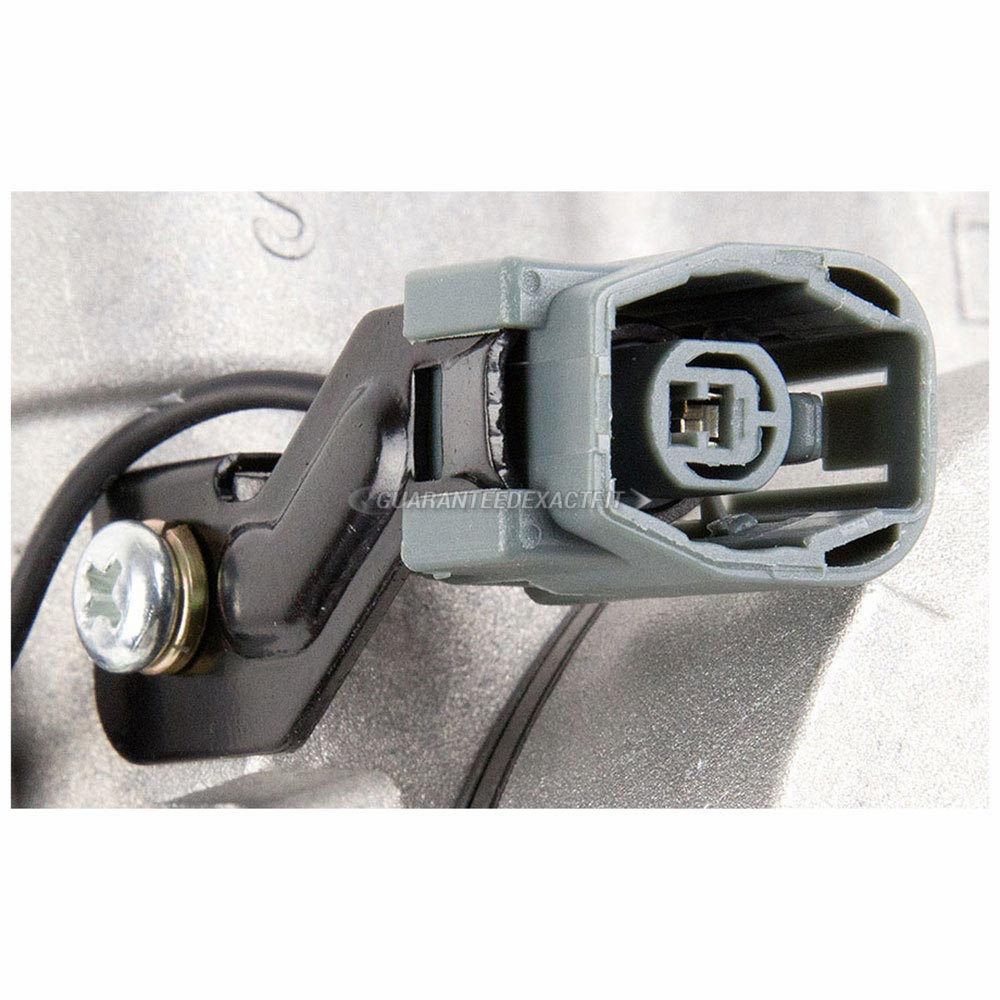

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeDKS17DS
Pulley Grooves6PK
Coil Voltage12V
OE / Part numberZ0005770, GS3L61450D, GS3L61450E, 9M8119D629AE

§ 04

Product details

DKS17DS Type 6 Grooves MAZDA A/C Compressor Z0005770 GS3L61450D for Mazda 6 2.5L 2009-2013

Specifications:

Compressor Type: DKS17DS

Pulley Grooves: 6PK

Clutch Diameter: 125MM

Refrigerant: R134a

VEHICLE FITMENT

2009 Mazda 6 2.5L Engine
2010 Mazda 6 2.5L Engine
2011 Mazda 6 2.5L Engine
2012 Mazda 6 2.5L Engine

2012 Mazda 6 2.5L Engine


Alternated OE:  Z0005770, GS3L61450D,GS3L61450E,9M8119D629AE
