COMPRESSOR-COOL 92600-02N70 92610-02N61 92600-02N60 NISSAN URVAN and NISSAN HOMY
OE 92600-02N70, 92610-02N61, 92600-02N60
FIVER AUTOPARTS CO.,LTD
Nissan A/C compressor
6PK · 12V
Auto A/C Compressor for Nissan; Nissan Frontier 2.5L A/C Compressor; 92600EA00C 92600-EA00C
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04

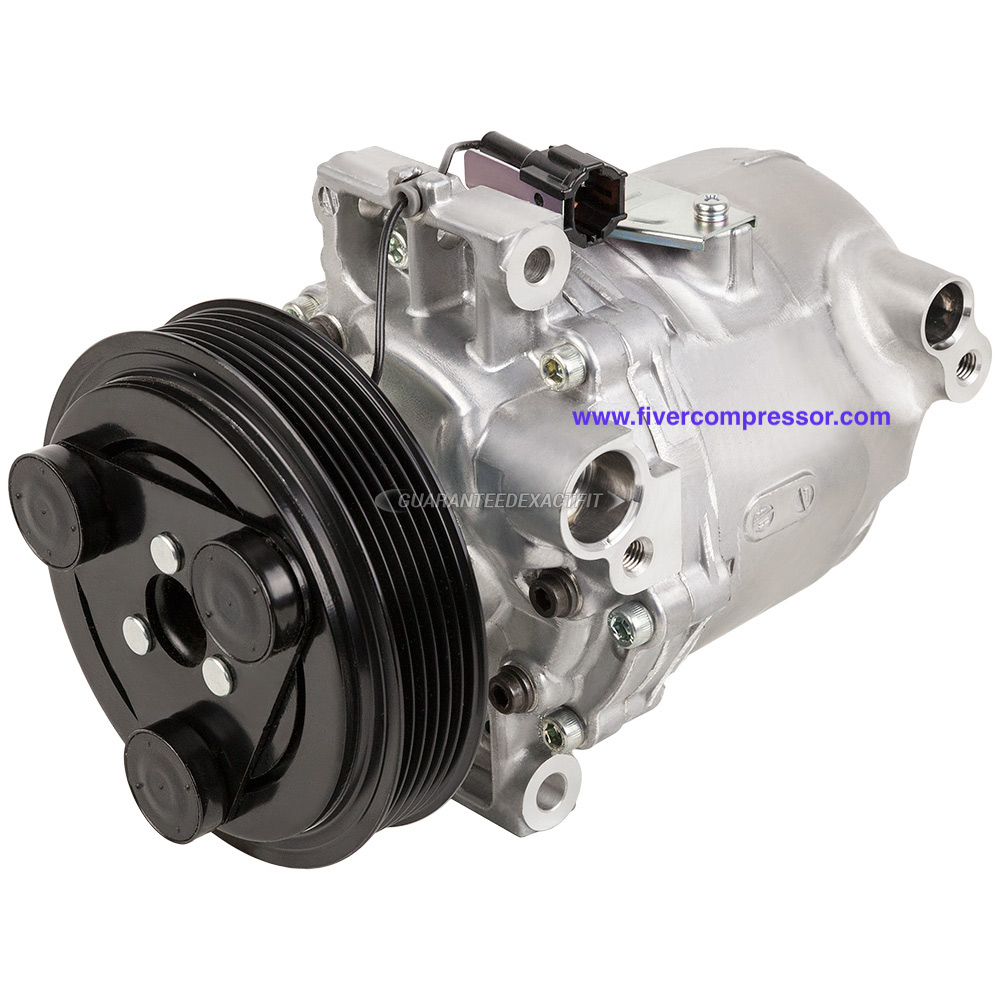

CR14-6 PK-12V Auto A/C Compressor 92600EA00C 92600-EA00C for Nissan Frontier 2.5L 2005-2019 Engine QR25DE L4

| Specifications | |
|---|---|
| [A/C Compressor] - Grooves | 6 |
| [A/C Compressor] - Style | CR14 |
| [A/C Expansion Valve] - Liquid Inlet (MM) | 10 |
| [A/C Expansion Valve] - Suction Outlet (MM) | 18 |
| [A/C Expansion Valve] - Tonnage | 1 |
| [A/C Receiver Drier / Accumulator] - Height (MM) | 161 |
| [A/C Receiver Drier / Accumulator] - Inlet/ Outlet (MM) | 10 |
[A/C Receiver Drier / Accumulator] - Width (MM) Pulley Diameter | 60 125MM |
| Year Make Model | Trim & Engine | Engine |
|---|---|---|
| 2005-2019 Nissan Frontier | SE, SV, XE|4 Cyl 2.5L | QR25DE |
Alternate/OEM Part Number(s): 92600EA000, 92600EA00C, 92600EA01A
§ 05
OE 92600-02N70, 92610-02N61, 92600-02N60
OE 92600-06F05, 40630-45010
OE 92600-5AA0A, 926005AA0A, 92600-9UA0A
OE 92600-1CB0A, 92600-1CB0B, 926001CA1D
