AC Compressor Assy 88310-0R014, 883100R014 for Toyota Camry LE, SE, XLE, XSE 2.5L and RAV4RAV4. 2.5L
OE 88310-0R014, 883100R014
FIVER AUTOPARTS CO.,LTD
Toyota A/C compressor
6PK · 12V
AC Compressor for Toyota Corolla Altis 2010-2013; Toyota Corolla A/C Compressor; Auto AC Compressor For Toyota
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04

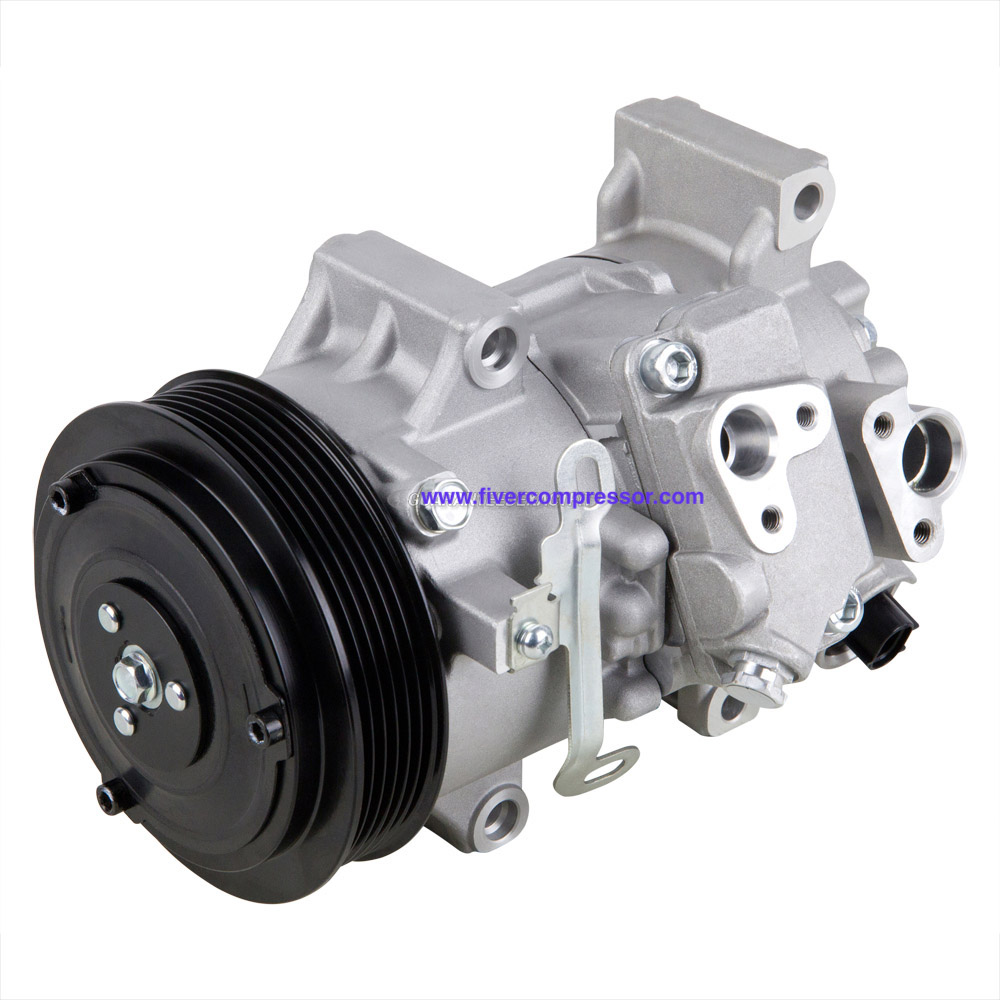

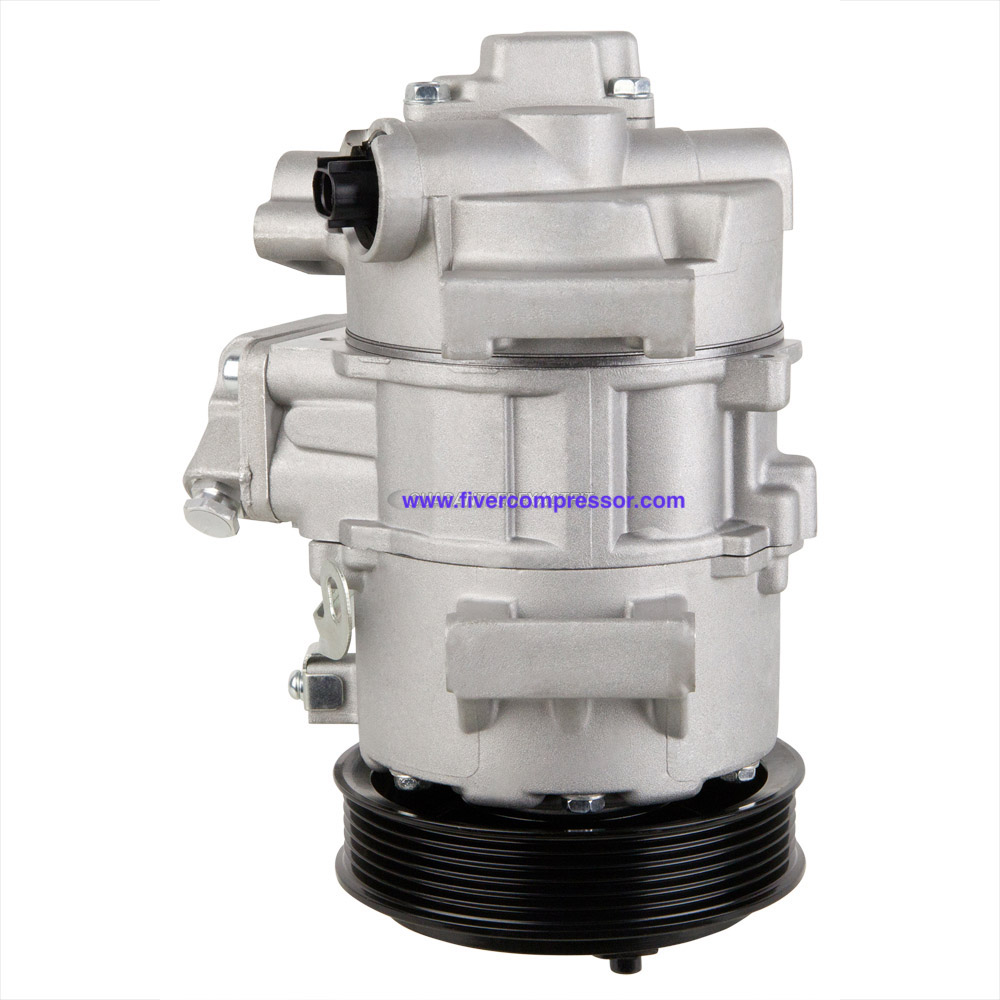

Denso 6SEU14C Auto Air Conditioning Compressor 88310-02731, 8831002731 for Toyota Corolla Altis ZRE141/ZRE142 1.8L 2010-2013 for Toyota Corolla Altis ZRE143 2.0L 2010-2013

| Specifications | |
|---|---|
| Compressor Mount | Direct |
| Control Valve (Y/ N) | Yes |
| Discharge Port (MM) | 15 |
| Gauge Line (MM) | 61 |
| Grooves | 6 |
| Pulley Diameter (MM) | 120 |
| Suction Port (MM) | 18 |
Voltage Compressor Type | 12 6SEU14C |
VEHICLE FITMENT
TOYOTA
COROLLA ALTIS
ZRE141 2010-2013
ZRE142 2010-2014
ZRE143 2010-2014
OE:88310-02731, 8831002731
§ 05
OE 88310-0R014, 883100R014
OE 88310-52720, 8831052720, 88310-0D400
OE 88310-52750, 8831052750
OE 88310-02850, 8831002850
