Toyota A/C compressor

Auto AC Compressor Assy 88310-42220 8831042220 RAV4 VANGUARD
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

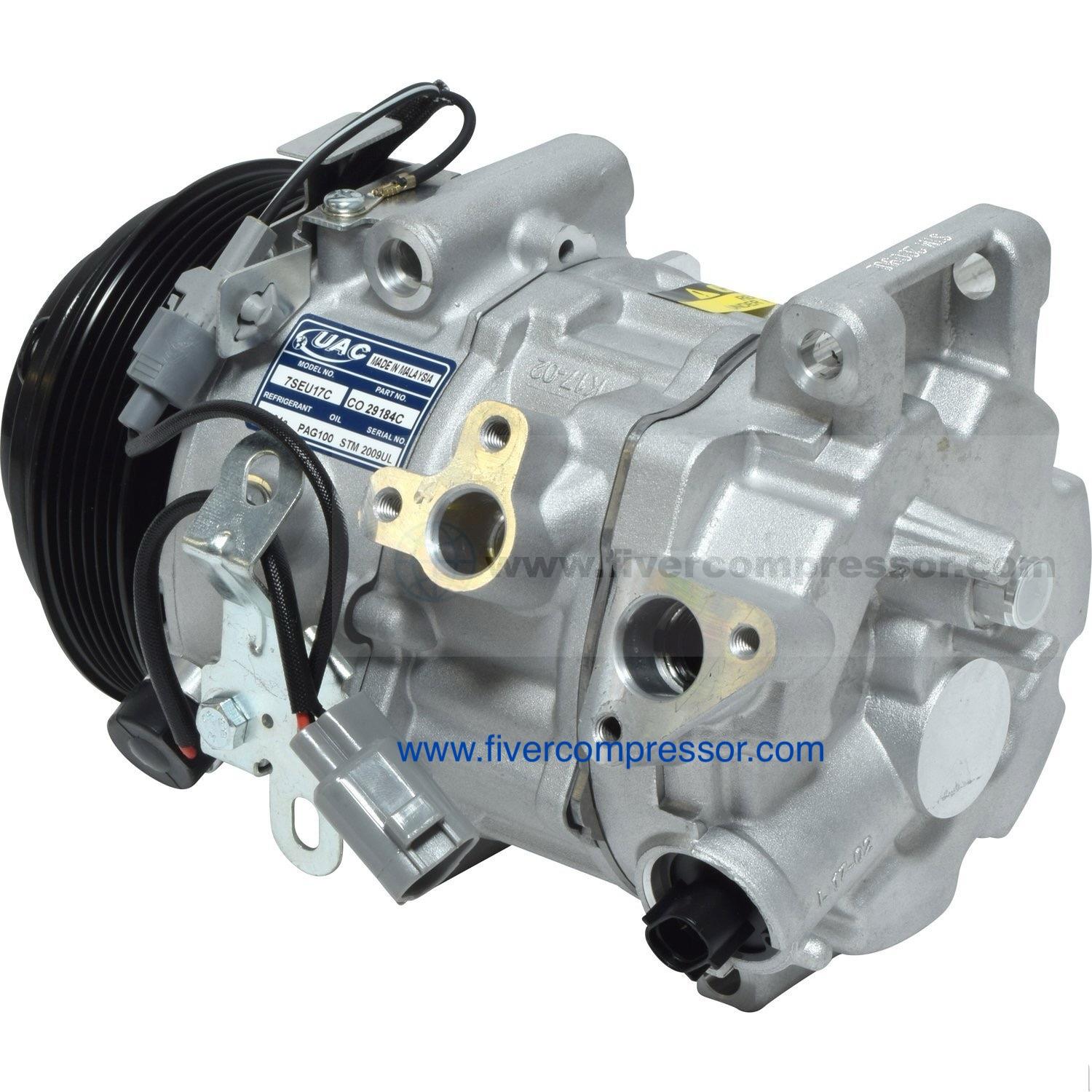

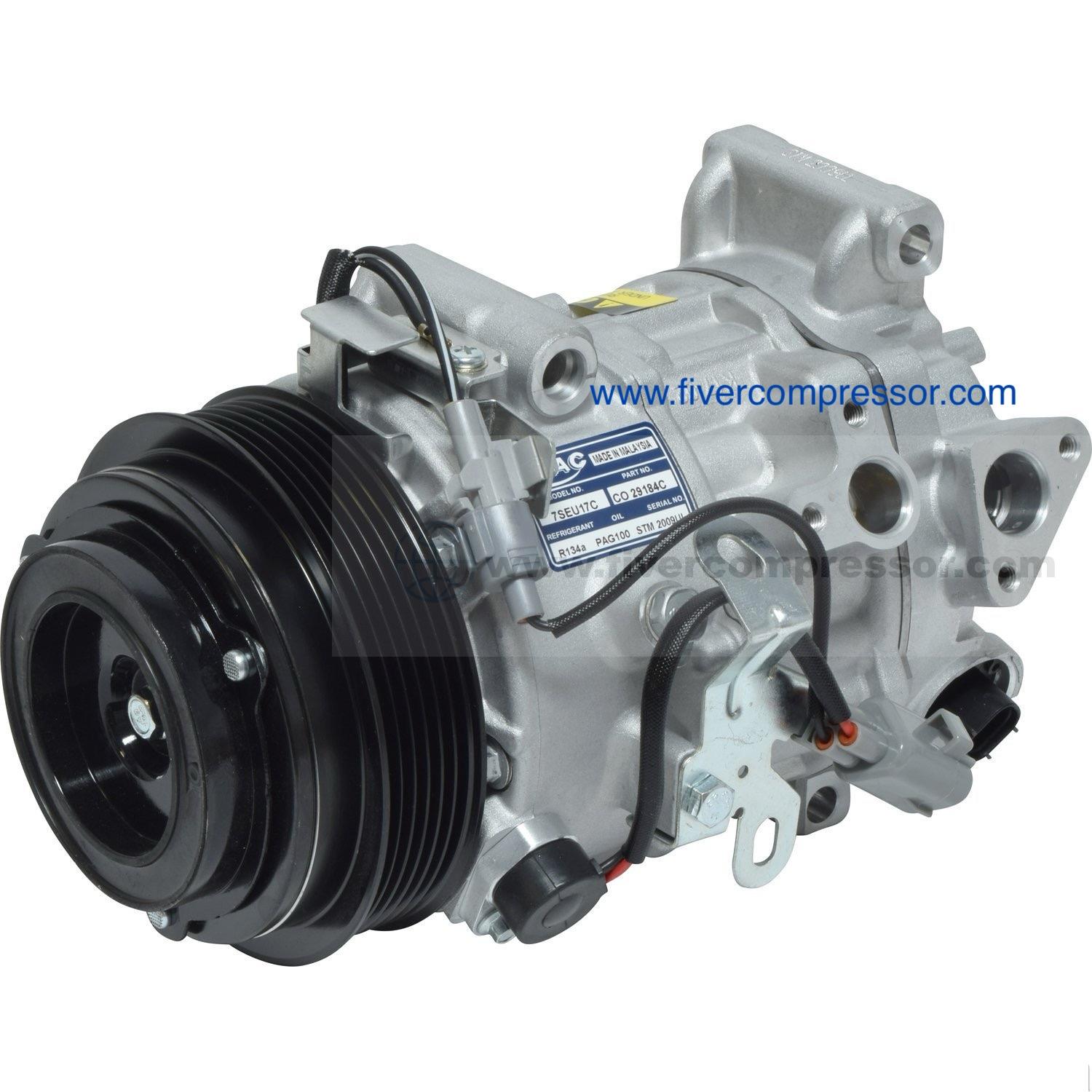

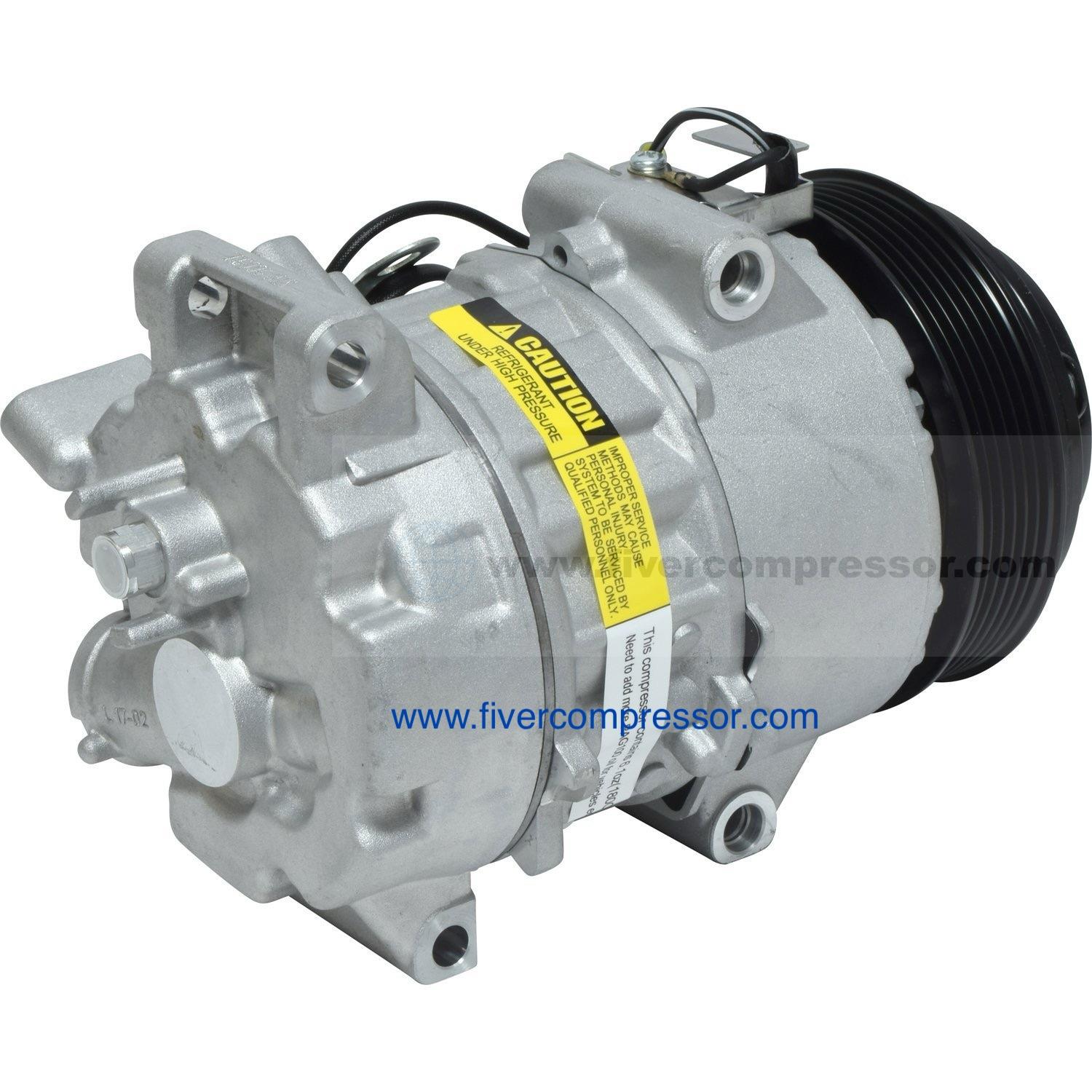

Auto AC Compressor Assy 88310-42220 8831042220 RAV4 VANGUARD

OE / Part number
88310-42220, 8831042220, 883100R040

Brand new Automobile A/C Compressor aftermarket replacement for 88310-42220-8831042220-RAV4-VANGUARD Perfect fit

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelToyota A/C compressor / Auto A/C compressor / RAV4 A/C Compressor / VANGUARD A/C Compressor
OE / Part number88310-42220, 8831042220, 883100R040
ApplicationApplications: RAV4/VANGUARD 2005—2016

§ 03

Product details

Auto AC Compressor Assy 88310-42220 8831042220 RAV4 VANGUARD

OE No.:88310-42220, 8831042220 883100R040

Product Name:Auto AC Compressor Assy
Applications:RAV4/VANGUARD 2005—2016
ACA31 ACA36

Compressor Type: 7SES17C

Pulley Grooves: 6PK

Pulley Diameter: 119MM
