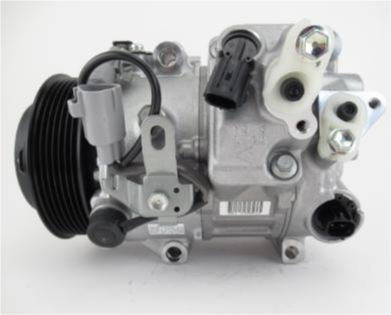

AC Compressor Assy 88310-0R014, 883100R014 for Toyota Camry LE, SE, XLE, XSE 2.5L and RAV4RAV4. 2.5L
OE 88310-0R014, 883100R014
FIVER AUTOPARTS CO.,LTD
Toyota A/C compressor

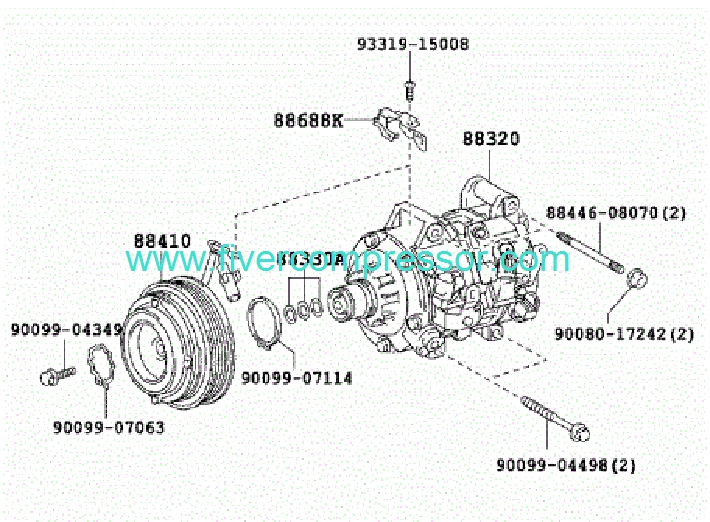

Air conditioning compressor 88320-08080 88320-08150 88320-08070 Toyota Highlander — aftermarket A/C compressor OE 88320-08080 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03


Specifications
TSB19C - 7 PK - 12v
Clutch Diameter 120 mm
2011-2016 Toyota Sienna
2011-2013 Toyota Highlander
2012-2017 Toyota Camry
2013 2018 Toyota Avalon
§ 04
OE 88310-0R014, 883100R014
OE 88310-52720, 8831052720, 88310-0D400
OE 88310-52750, 8831052750
OE 88310-02850, 8831002850
