AC Compressor 8832030730, 883203A450 for Lexus GS350 GRL16, RC300 and Lexus RC350 2014 -2018 — aftermarket A/C compressor OE 8832030730 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03

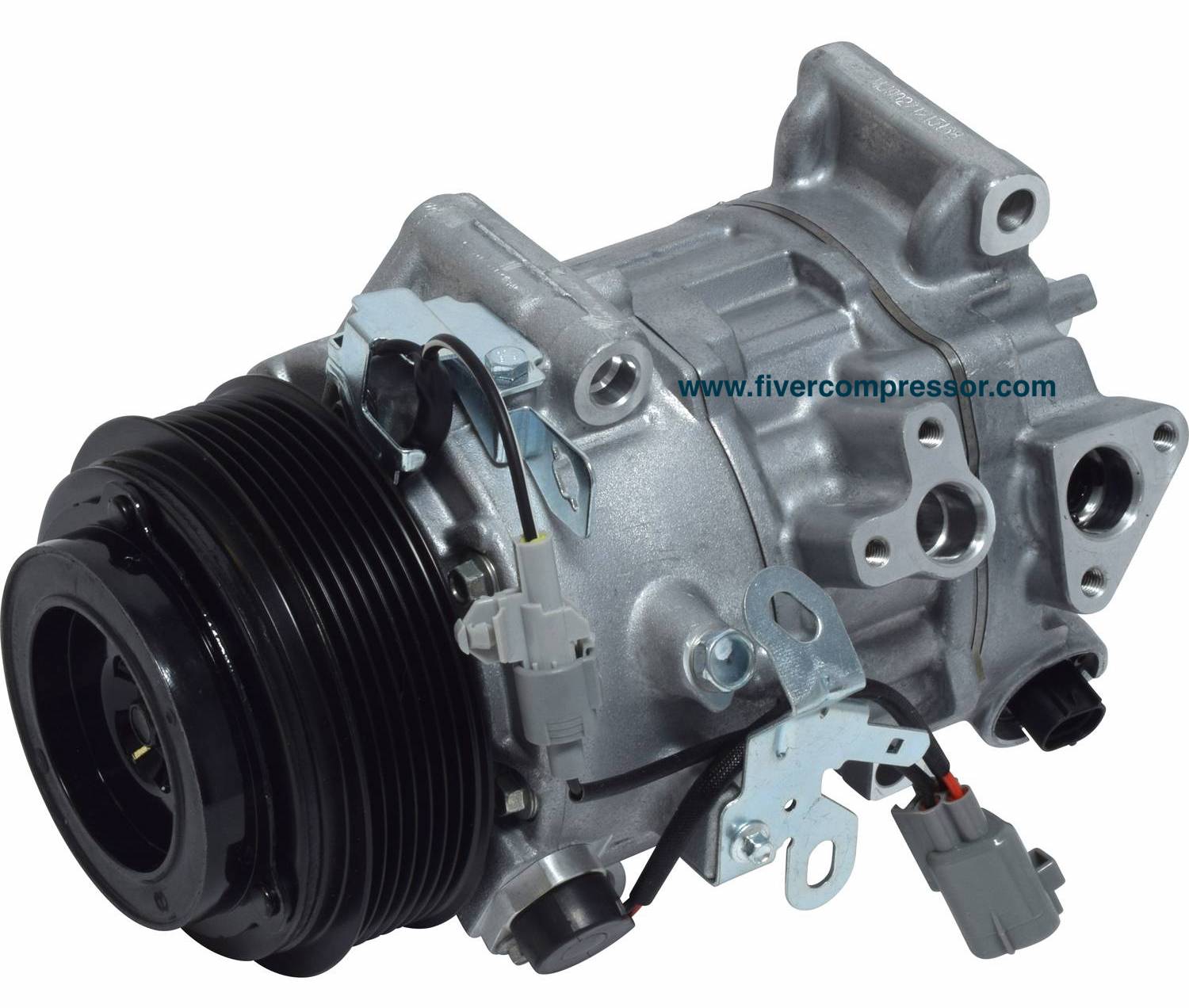

AC Compressor 8832030730, 883203A450 for Lexus GS350 GRL16, RC300 and Lexus RC350 2014 -2018

Applications:
| LEXUS | GS350 GRL16 | 2016-2018 |
| LEXUS | IS250 | 2014-2015 |
| LEXUS | IS300 | 2016-2018 |
| LEXUS | IS350 | 2014-2018 |
| LEXUS | RC300 | 2016-2018 |
| LEXUS | RC350 | 2015-2018 |
Specifications:
| Clutch Included | Yes |
| Clutch Maximum Diameter (IN) | 4.53125 |
| Coil Clock Position | Lead Wire |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | 7SAS17C |
| Distance From Clutch To Mounting Flange (IN) | 1.625 |
| ECV Harness Connector | SE05F, 26892 Female / / SE22M, 26882 Male |
| Mounting Hardware? | Not Included |
| Mounting Type | 3 Tangent One On Rear Head |
| New or Reman | New |
| O-Ring A Number/Desc | 24661 |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | 24681 |
| O-Ring B Quantity | 1 |
| Printed Foot Note | May Require OE Bracket |
| Pulley Belt Type | Serpentine |
| Pulley Groove Quantity | 7 |
| Pulley Lip Diameter (IN) | 4.53125 |
| Pulley Outside Diameter (IN) | 4.53125 |
| Pulley Ridge Diameter (IN) | 4.53125 |
| Refrigerant Type | R134a |
| Terminal Type | Pin |
| Type | Nippondenso |
| Alternate/OEM Part Number(s): 8832030730, 883203A450, 883203A520 |
