FIVER AUTOPARTS CO.,LTD

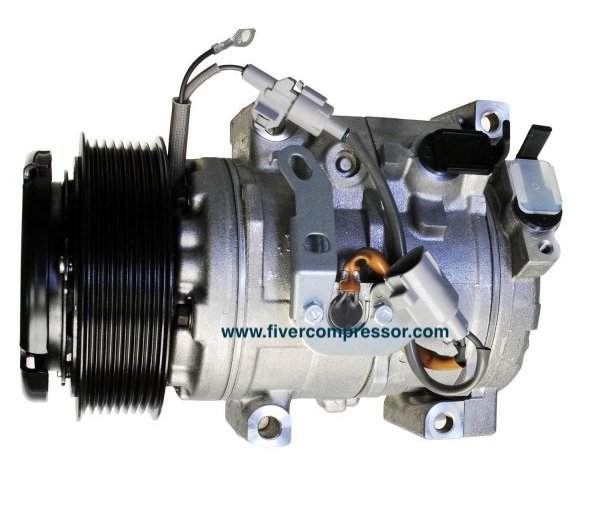

Toyota A/C compressor

AC Compressor 883100G060, 883106A330, 883200C150, 883206A320 for Lexus LX570 5.7L V8, Toyota Land Cruiser VDJ2/UZJ2 4.5L V8, Sequoia…
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

AC Compressor 883100G060, 883106A330, 883200C150, 883206A320 for Lexus LX570 5.7L V8, Toyota Land Cruiser VDJ2/UZJ2 4.5L V8, Sequoia UPK60/UPK65/USK60/USK65 2008-2018

OE / Part number
4471600054, 883100G060, 883106A330, 883200C150, 883206A320

AC Compressor 883100G060, 883106A330, 883200C150, 883206A320 for Lexus LX570 5.7L V8, Toyota Land Cruiser VDJ2/UZJ2 4.5L V8, Sequoia UPK60/UPK65/USK60/USK65 2008-2018 — aftermarket A/C compressor OE 4471600054 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelAC Compressor for Lexus LX570 / air conditioning compressor for Toyota Land Cruiser VDJ2/UZJ2 / A/C Compressor for Toyota Sequoia / Auto Cooler Supplier
OE / Part number4471600054, 883100G060, 883106A330, 883200C150, 883206A320
ApplicationApplications: LEXUS

§ 03

Product details

AC Compressor 883100G060, 883106A330, 883200C150, 883206A320 for Lexus LX570 5.7L V8, Toyota Land Cruiser VDJ2/UZJ2 4.5L V8, Sequoia UPK60/UPK65/USK60/USK65 5.0L V8 2008-2018

Applications:

LEXUS LX570 2008-2018
TOYOTA LAND CRUISER VDJ2/UZJ2 4.6L V8 2008-2018
TOYOTA SEQUOIA UPK60/UPK65/USK60/USK65 2008-2018
Specifications:
Refrigerant Type R134a
Clutch Maximum Diameter 120.0 MM
Compressor Mount Hole Quantity 4
Pulley Belt Type Serpentine PV8
Mounting Type Bolt Tangent
Alternate/OEM Part Number(s): 4471600054, 883100G060, 883106A330, 883200C150, 883206A320
