Toyota A/C compressor

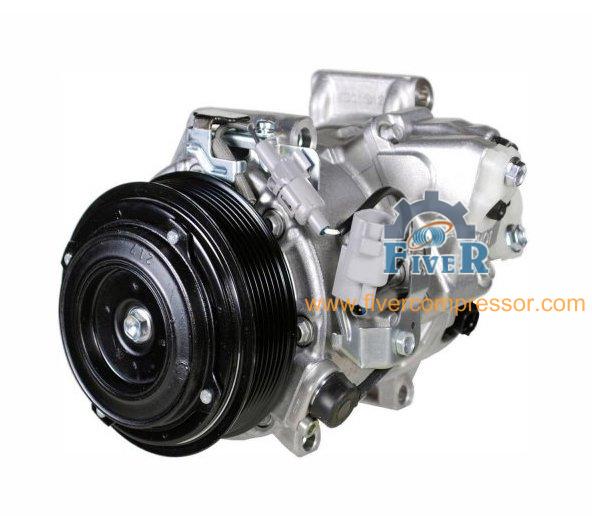

Toyota Sienna A/C Compressor assy 88320-28420 88310-28600/447190-5820 for Toyota VENZA Toyota RAV4 and Lexus ES350
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

Toyota Sienna A/C Compressor assy 88320-28420 88310-28600/447190-5820 for Toyota VENZA Toyota RAV4 and Lexus ES350

OE / Part number
88320-28420, 88310-28600, 447190-5820, 255728, 4471906012, 4471908222, 4710565, 4710619, 8831008050, 8831033260, 8832008060, 883200T010, 8832028420, 8832033210

Toyota Sienna A/C Compressor assy 88320-28420 88310-28600/447190-5820 for Toyota VENZA Toyota RAV4 and Lexus ES350 — aftermarket A/C compressor OE 88320-28420 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelTOYOTA A/C Compressor / VENZA A/C CompressorILUX A/C Compressor / LEXUS ES350 A/C Compressor / A/C Compressor for Toyota Sinenna
OE / Part number88320-28420, 88310-28600, 447190-5820, 255728, 4471906012, 4471908222, 4710565, 4710619, 8831008050, 8831033260, 8832008060, 883200T010, 8832028420, 8832033210
ApplicationToyota Sienna, Lexus GS350, Highlander/Estima/Vellfire/Venza 3.5

§ 03

Product details

Toyota Sienna A/C Compressor assy 88320-28420 88310-28600/447190-5820 for Toyota VENZA Toyota RAV4 and Lexus ES350

Part Name: A/C Compressor assy

Part Number: 88320-28420, 88310-28600, 447190-5820
Application: Toyota Sienna, Lexus GS350,Highlander/Estima/Vellfire/Venza 3.5

GSL25L-PFAQKK | 2006.12-2009.12 | 2GRFE | WG | XLE | ATM | 5D | 7S | CND
GSL20L-PRAEKK | 2006.12-2009.12 | 2GRFE | WG | LE | ATM | 5D | 8S | CND
GSL20L-PRAEKA | 2006.12-2009.12 | 2GRFE | WG | LE | ATM | 5D | 8S | USA
GSL20L-PRADKK | 2006.12-2009.12 | 2GRFE | WG | CE | AT

Specifications
Refrigerant Type R134a
Clutch Maximum Diameter 110.0 mm
Compressor Mount Hole Quantity 4
Pulley Belt Type Serpentine
Mounting Type Bolt Tangent

Alternate/OEM Part Number(s): 255728, 4471906012, 4471908222, 4710565, 4710619, 8831008050, 8831033260, 8832008060, 883200T010, 8832028420, 8832033210

Compressor Info:Item NO. : WX-10027
Car Name : Lexus GS350 Highlander/Estima/Vellfire/Venza 3.5

TYPE : 7SBH17C
Year model : 2004-2009
OEM No : 88310-28600 /88320-28420/447190-5820

Clutch information : 120mm 7PK 12V
Oil type : PAG 46
Oil Quantity : 160ml
