Toyota A/C compressor

Toyota Liteace van wagon A/C Compressor assy 88320-28250 88320-28240 88320-28230
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

Toyota Liteace van wagon A/C Compressor assy 88320-28250 88320-28240 88320-28230

OE / Part number
88320-28250, 88320-28240, 88320-28230, 88320-28220, 88320-28190, 88320-28180, 88320-28170, 88320-28130, 88320-28120

Toyota Liteace van wagon A/C Compressor assy 88320-28250 88320-28240 88320-28230 — aftermarket A/C compressor OE 88320-28250 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

OE / Part number88320-28250, 88320-28240, 88320-28230, 88320-28220, 88320-28190, 88320-28180, 88320-28170, 88320-28130, 88320-28120
ApplicationToyota Liteace van wagon

§ 03

Product details

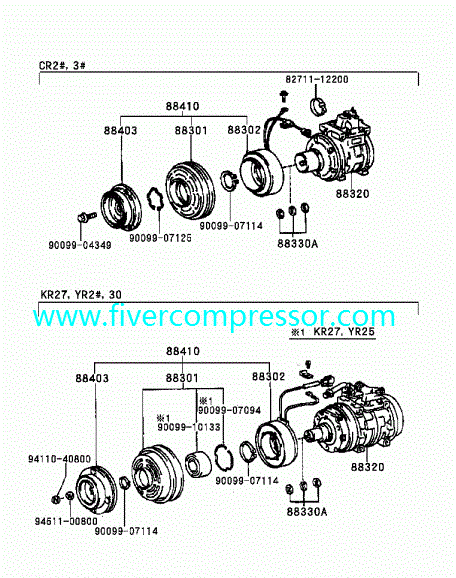

Part Name: A/C Compressor assy
Part Number: 88320-28250 88320-28240 88320-28230 88320-28220 88320-28190 88320-28180 88320-28170 88320-28130 88320-28120
Application: Toyota Liteace van wagon
YR22RG-MRSEQ | 1992.01-1996.10 | 4YEC | STD | MTM | RHD | MRF | 4D | 08S
YR22RG-PRSEQ | 1992.01-1996.10 | 4YEC | STD | ATM | RHD | MRF | 4D | 08S
YR39RV-MR | 1992.01-1996.10 | 3Y | STD | MTM | RHD | SRF | 4D | 05S
YR39RV-MRBEQ | 1992.01-1996.10 | 3YC | STD
