Toyota A/C compressor

Toyota Granvia/Grand hiace A/C Compressor assy 88320-26660 88320-26670 88320-26600
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

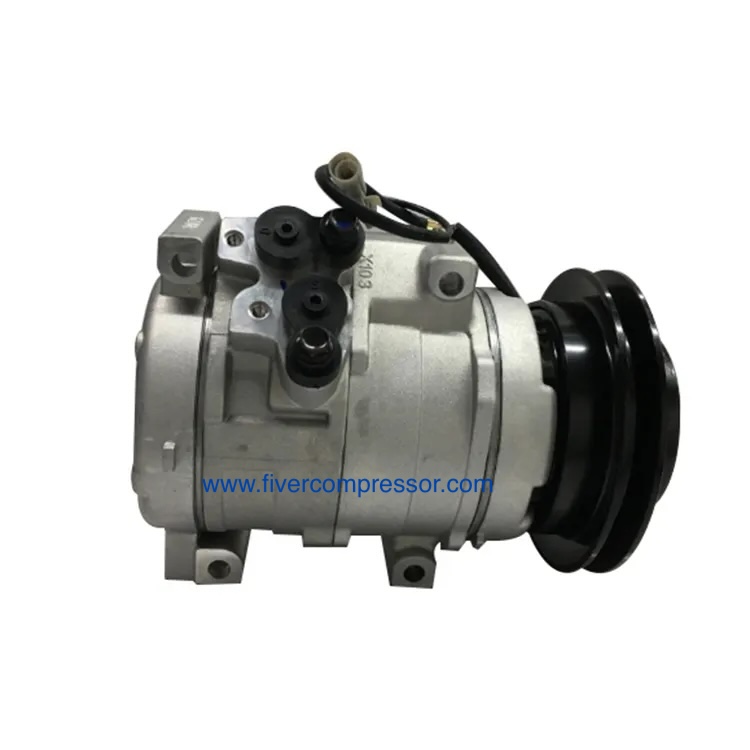

Toyota Granvia/Grand hiace A/C Compressor assy 88320-26660 88320-26670 88320-26600

OE / Part number
88320-26660, 88320-26670, 88320-26600, 447220-3720, 88320-26610, 88320-26590

Toyota Granvia/Grand hiace A/C Compressor assy 88320-26660 88320-26670 88320-26600 — aftermarket A/C compressor OE 88320-26660 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

OE / Part number88320-26660, 88320-26670, 88320-26600, 447220-3720, 88320-26610, 88320-26590
ApplicationToyota Granvia/Grand hiace

§ 03

Product details

Part Name: A/C Compressor assy
Part Number: 88320-26660 88320-26670 88320-26600 88320-26610 88320-26590
Application: Toyota Granvia/Grand hiace

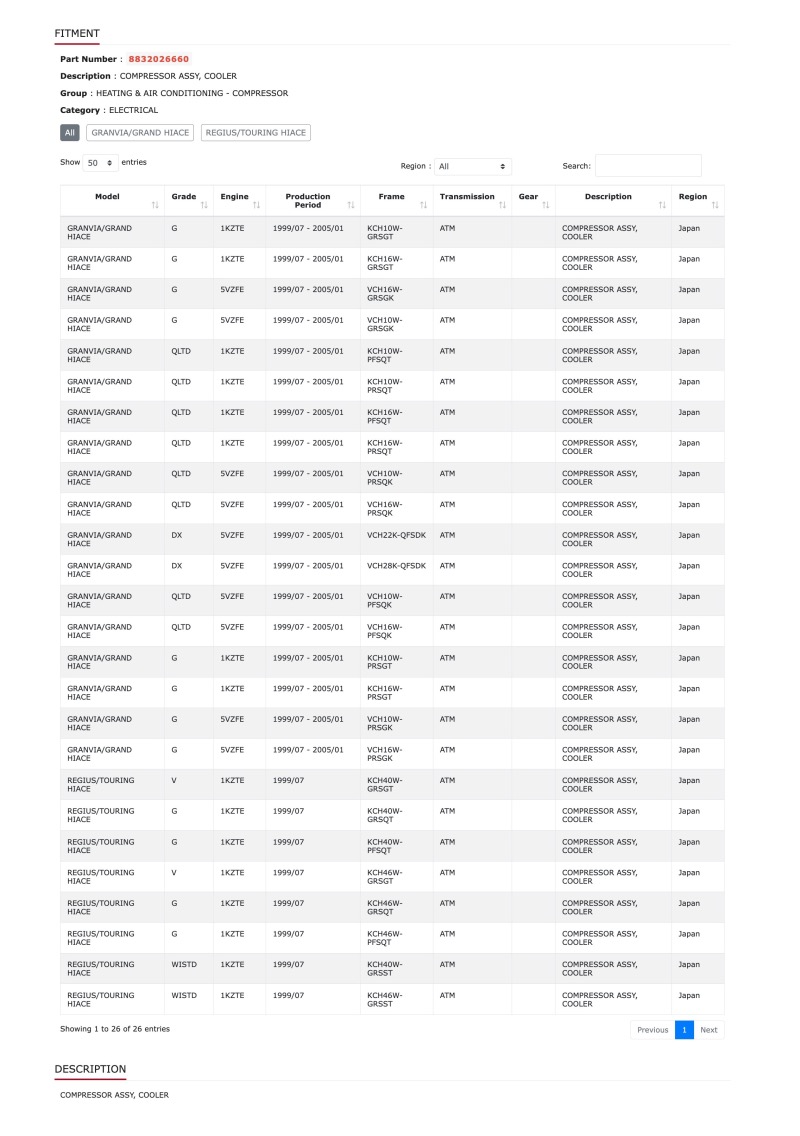

KCH10W-GRSGT | 1995.08-2002.05 | 1KZTE | WG | G | ATM | 08S | 4D | TDE
KCH16W-GRSGT | 1995.10-2002.05 | 1KZTE | WG | G | ATM | 08S | 4D | TDE
VCH10W-PFSQK | 1999.07-2002.05 | 5VZFE | WG | QLTD | ATM | 07S | 5D | EFI

VCH16W-GRSGK | 1997.08-2002.05 | 5VZ
