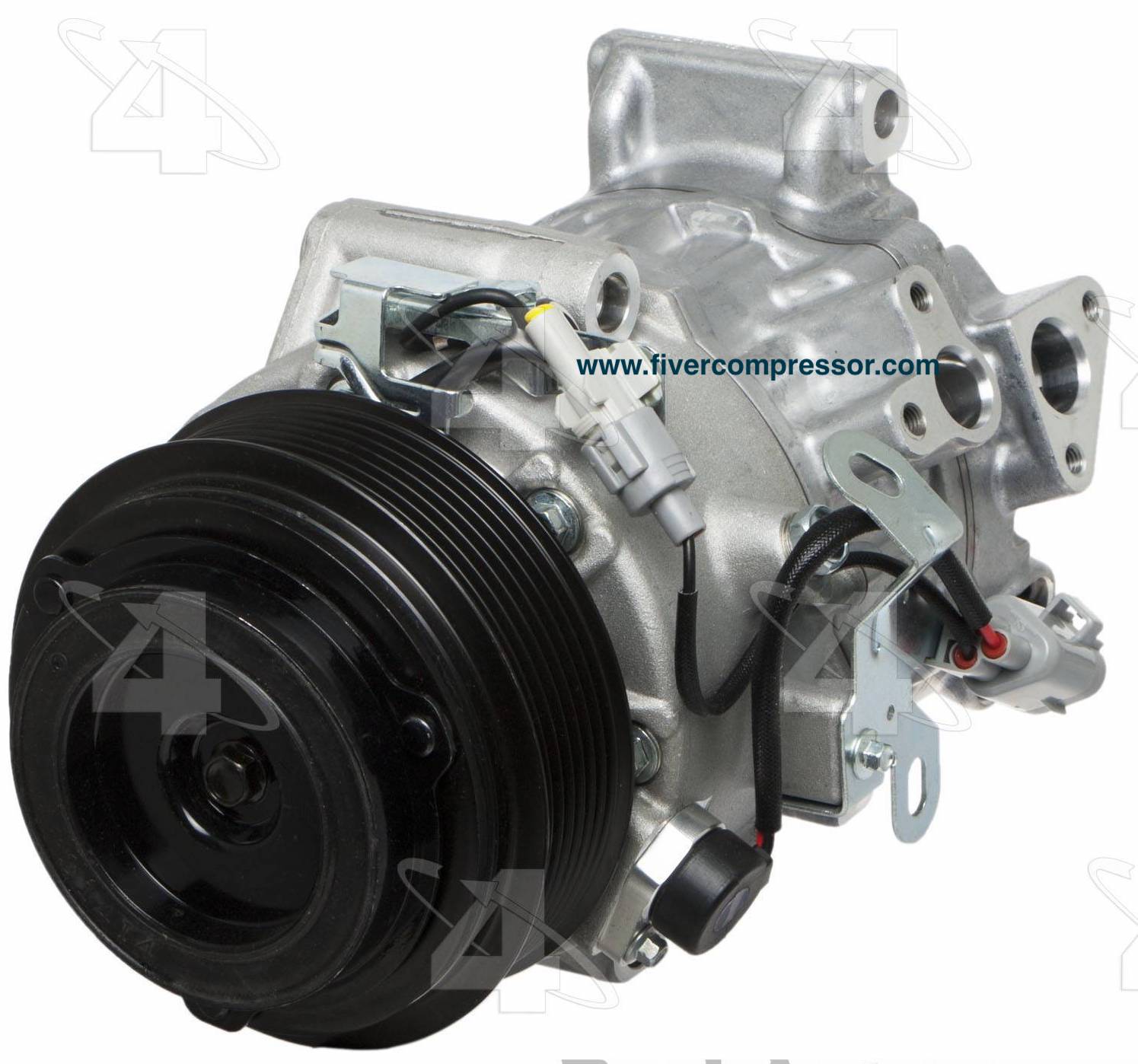

Toyota A/C compressor

A/C Compressor 883200E070, 883203A420, 883203A440, 883203A510, 8832048320 for Lexus RC350 (GSC10) and Lexus IS250(GSE30) and IS350(GSE31)…
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

A/C Compressor 883200E070, 883203A420, 883203A440, 883203A510, 8832048320 for Lexus RC350 (GSC10) and Lexus IS250(GSE30) and IS350(GSE31) 2013-2018,A/C Compressor for Lexus

OE / Part number
883200E070, 883203A420, 883203A440, 883203A510, 8832048320

A/C Compressor 883200E070, 883203A420, 883203A440, 883203A510, 8832048320 for Lexus RC350 (GSC10) and Lexus IS250(GSE30) and IS350(GSE31) 2013-2018,A/C Compressor for Lexus — aftermarket A/C compressor OE 883200E070 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelA/C Compressor fo Lexus RC3530(GSC10) / Air Cooler for Lexus IS350(GSE31) / ac compressor for Lexus IS250(GSE30) / AC Compressor for Lexus GS200T
OE / Part number883200E070, 883203A420, 883203A440, 883203A510, 8832048320
ApplicationApplications: LEXUS

§ 03

Product details

A/C Compressor 883200E070, 883203A420, 883203A440, 883203A510, 8832048320 for Lexus RC350 (GSC10) and Lexus IS250(GSE30) and IS350(GSE31) 2013-2018

Applications:

LEXUS GS200T ARL10 2016-2017
LEXUS GS300 GRL15 2018
LEXUS GS350 GSC10 2016-2018
LEXUS IS200T GSC10 2016-2017
LEXUS IS250 GSE30 2014-2015
LEXUS IS300 2018-2019
LEXUS IS350 GSE31 2014-2018
LEXUS RC200T ASC10 2016-2017
LEXUS RC300 2018
LEXUS RC350 2015-2018
LEXUS RX350 GGL20/GGL25 2016-2020
TOYOTA HIGHLANDER GSU50/GSU55 2014-2015
Specifications:
Clutch Included Yes
Clutch Maximum Diameter (IN) 4.53125
Coil Clock Position Lead Wire
Coil Voltage 12
Compatible Refrigerant Oil Type PAG 46
Compressor Type 7SAS17C
Distance From Clutch To Mounting Flange (IN) 1.625
ECV Harness Connector SE10F, 26984 Female / / SE10M, 26878 Male
Mounting Hardware? Not Included
Mounting Type Tangent Mount
New or Reman New
O-Ring A Number/Desc 24661
O-Ring A Quantity 1
O-Ring B Number/Desc 24681
O-Ring B Quantity 1
Pulley Belt Type Serpentine
Pulley Groove Quantity 7
Pulley Lip Diameter (IN) 4.53125
Pulley Outside Diameter (IN) 4.53125
Pulley Ridge Diameter (IN) 4.53125
Refrigerant Type R134a
Terminal Type Pin
Type Nippondenso
Alternate/OEM Part Number(s): 883200E070, 883203A420, 883203A440, 883203A510, 8832048320
