FIVER AUTOPARTS CO.,LTD

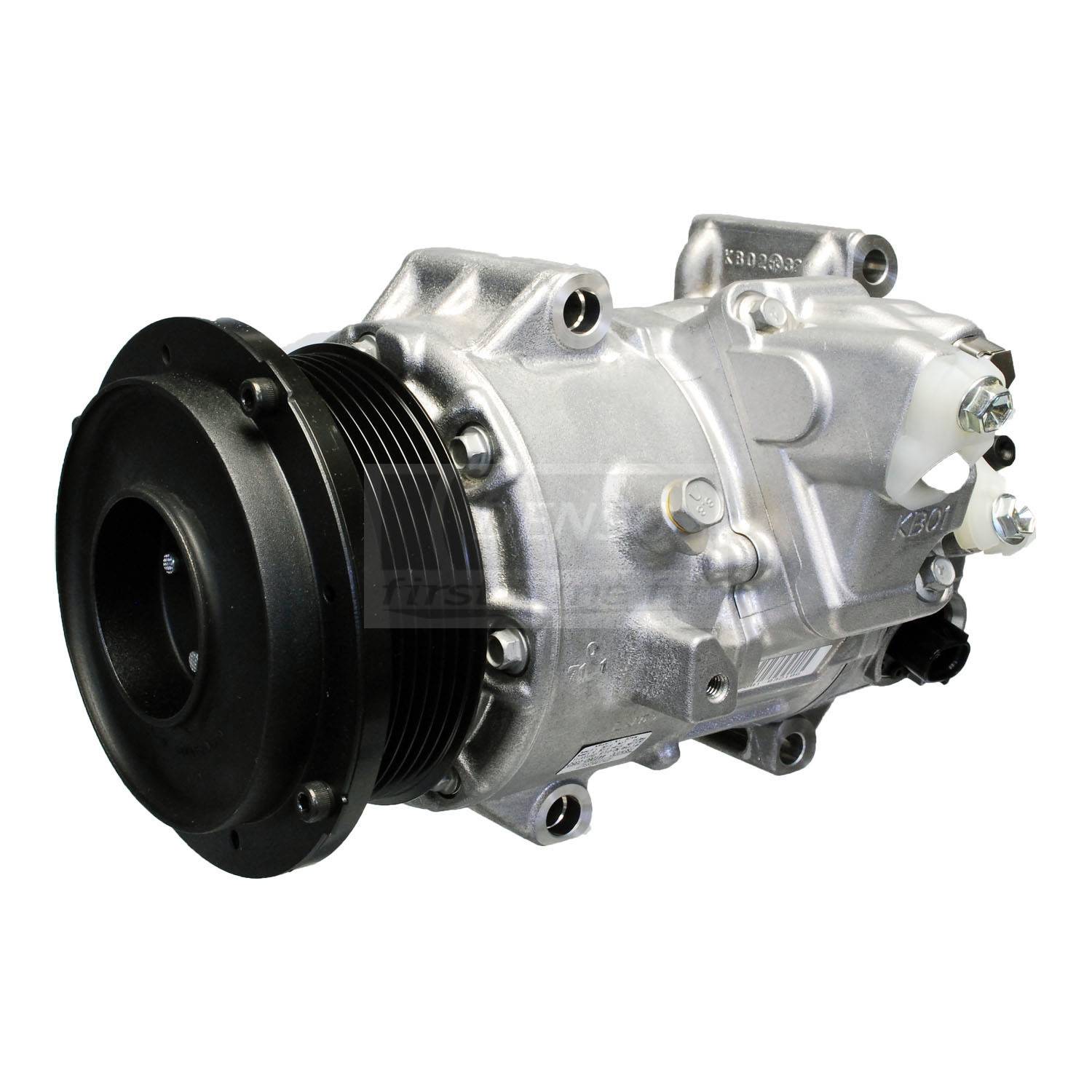

Toyota A/C compressor

88310-0T020,883100T020,8832048170, 8832048220, 8831048240​​ AC Compressor Assy for Toyota Highlandern and Toyota Venza.
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

88310-0T020,883100T020,8832048170, 8832048220, 8831048240​​ AC Compressor Assy for Toyota Highlandern and Toyota Venza.

OE / Part number
88310-0T020, 883100T020, 8832048170, 8832048220, 8831048240, 4471500361, 4471501071, 883100E090, 8831048250

88310-0T020,883100T020 AC Compressor Assy for Toyota Highlandern and Toyota Venza. Every fivercompressor.com AC Compressor and Components Kit has been quality inspected, so you know you're getting the best possible replacement components for your car AC system. It's still a good idea to inspect your AC Compressor and Components Kit when it arrives; this will help you avoid problems with removal

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelToyota ac compressor / highlander ac compressor / venza ac compressor / auto ac compressor
OE / Part number88310-0T020, 883100T020, 8832048170, 8832048220, 8831048240, 4471500361, 4471501071, 883100E090, 8831048250
ApplicationApplications: 2013 Toyota Highlander Base, Plus 2.7L L4 - Gas

§ 03

Product details

Part Name: 88310-0T020, 883100T020 AC Compressor Assy for Toyota Highlandern and Toyota Venza.

Part Number: 88310-0T020, 883100T020, 8832048170, 8832048220,8831048240

Applications:

2013 Toyota Highlander Base, Plus 2.7L L4 - Gas
2012 Toyota Highlander Base, SE 2.7L L4 - Gas
2011 Toyota Highlander Base, SE 2.7L L4 - Gas
2010 Toyota Highlander Base 2.7L L4 - Gas
2015 Toyota Venza LE, XLE 2.7L L4 - Gas
2014 Toyota Venza LE, XLE 2.7L L4 - Gas
2013 Toyota Venza LE, XLE 2.7L L4 - Gas
2012 Toyota Venza LE, XLE 2.7L L4 - Gas
2011 Toyota Venza Base 2.7L L4 - Gas
2010 Toyota Venza Base 2.7L L4 - Gas
2009 Toyota Venza Base 2.7L L4 - Gas

Specifications
Refrigerant Type R134a
Clutch Maximum Diameter 110.0 mm
Compressor Mount Hole Quantity 4
Pulley Belt Type Serpentine
Mounting Type Bolt Tangent
Alternate/OEM Part Number(s): 4471500361, 4471501071, 883100E090, 883100T020, 8831048240, 8831048250
