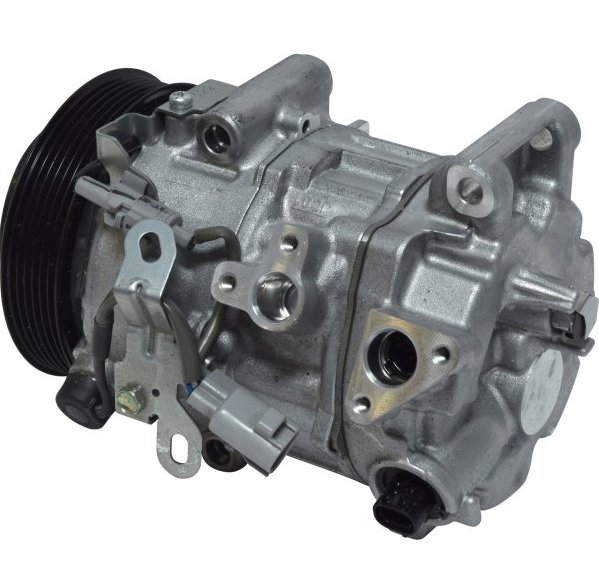

AC Compressor Assy 88310-0R014, 883100R014 for Toyota Camry LE, SE, XLE, XSE 2.5L and RAV4RAV4. 2.5L
OE 88310-0R014, 883100R014
FIVER AUTOPARTS CO.,LTD
Toyota A/C compressor
OE Grade Quality Aftermarket Replacement AC Compressor for Toyota RAV4 2013-2018,
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03
7SAS17C - 6 PK-12V Auto Air Conditioning Compressor 88310-0R050, 88310-0R051, 88320- 42140, 8832048320 for Toyota RAV4 2013-2018

| Specifications | |
|---|---|
| Compressor Mount | Boss |
| Control Valve (Y/ N) | Y |
| Diode (Y/ N) | N |
| Discharge Port (MM) | 15.5 |
| Gauge Line (MM) | 61.3 |
| Grooves | 6 |
| Pulley Diameter (MM) | 120 |
| Suction Port (MM) | 18 |
| Voltage | 12 |
| TOYOTA | RAV4 | 2013-2018 |
| Alternate/OEM Part Number(s): 8832042140 |
§ 04
OE 88310-0R014, 883100R014
OE 88310-52720, 8831052720, 88310-0D400
OE 88310-52750, 8831052750
OE 88310-02850, 8831002850
