Toyota A/C compressor

Type 6SEU16C 6SEU16C Auto AC Compressor 255540, 275730, 4471501410, 4710628, 8831006390, 8831033290, 8832033200 for Toyota Camry and Toyota Avalon 2006…
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

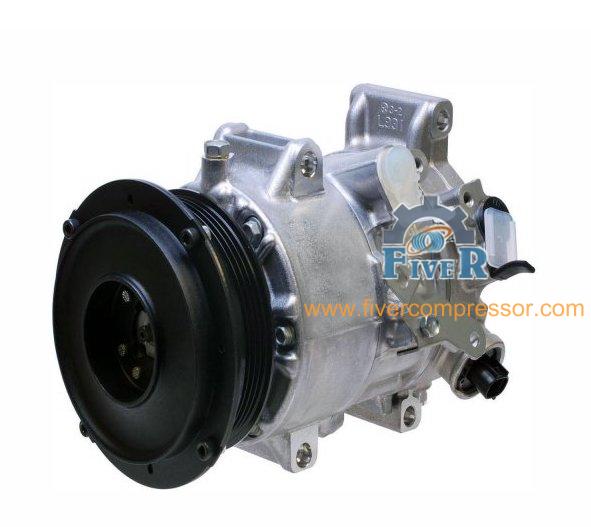

Toyota 6SEU16C A/C compressor

6SEU16C Auto AC Compressor 255540, 275730, 4471501410, 4710628, 8831006390, 8831033290, 8832033200 for Toyota Camry and Toyota Avalon 2006 -2012

OE / Part number
255540, 275730, 4471501410, 4710628, 8831006390, 8831033290, 8832033200

This Compressor is a aftermarket replacement for ac compressors OE: 255540, 275730, 4471501410, 4710628, 8831006390, 8831033290, 8832033200 applied to Toyota Camry 2007-2011 and Toyota Avalon 2006 -2012

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type6SEU16C
Clutch diameter110mm

Clutch and fitment

modelCompressor for Toyota Camry 2007 - 2011 / Toyota Avalon 2006 - 2012 AC Compressor

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type6SEU16C
Clutch diameter110mm
modelCompressor for Toyota Camry 2007 - 2011 / Toyota Avalon 2006 - 2012 AC Compressor
OE / Part number255540, 275730, 4471501410, 4710628, 8831006390, 8831033290, 8832033200
ApplicationApplications: TOYOTA

§ 04

Product details

6SEU16C Auto AC Compressor 255540, 275730, 4471501410, 4710628, 8831006390, 8831033290, 8832033200 for Toyota Camry and Toyota Avalon 2006 -2012


DENSO 4711631 Specifications
Refrigerant Type R134a
Clutch Maximum Diameter 110.0 mm
Compressor Mount Hole Quantity 4
Pulley Belt Type Serpentine
Mounting Type Bolt Tangent

Applications:

TOYOTA AVALON 2006-2012
TOYOTA CAMRY 2007-2011

Alternate/OEM Part Number(s): 255540, 275730, 4471501410, 4710628, 8831006390, 8831033290, 8832033200
