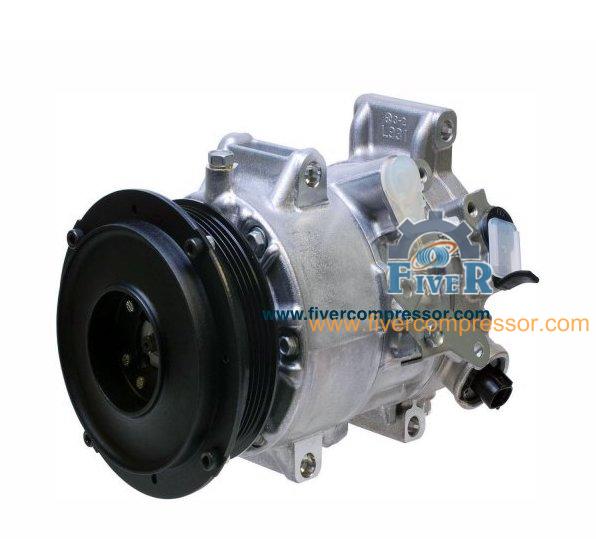

AC Compressor Assy 88310-0R014, 883100R014 for Toyota Camry LE, SE, XLE, XSE 2.5L and RAV4RAV4. 2.5L
OE 88310-0R014, 883100R014
FIVER AUTOPARTS CO.,LTD
Toyota A/C compressor
This Compressor is a OE equivalent replacement for OE:8831007060, 8832007110, 8832033200, 883203320084 is apply to Toyota Camry Toyota Avalon and Toyota RAV4
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03
6SBU16C AC Compressor 8831007060, 8832007110, 8832033200, 883203320084 for Toyota Camry 2007 - 2011 Toyota Avalon 2005-2011 and Toyota RAV4 2006 - 2008

| Specifications | |
|---|---|
| Refrigerant Type | R134a |
| Clutch Maximum Diameter | 110.0 mm |
| Compressor Mount Hole Quantity | 4 |
| Pulley Belt Type | Serpentine |
| Mounting Type | Bolt Tangent |
| TOYOTA | AVALON | 2005-2011 |
| TOYOTA | CAMRY | 2007-2011 |
| TOYOTA | RAV4. | 2006-2008 |
Alternate/OEM Part Number(s): 255540, 275730, 4471501410, 4710628, 8831006390, 8831033290, 8832033200,8831007060, 8832007110, 8832033200, 883203320084
§ 04
OE 88310-0R014, 883100R014
OE 88310-52720, 8831052720, 88310-0D400
OE 88310-52750, 8831052750
OE 88310-02850, 8831002850
