Toyota A/C compressor

Type 5SE09C 5SE09C PV6 A/C Compressor 447180-5940, 447220-8465,88310-0D070, 88310-0D140 for Toyota YARIS/ ECHO/ VIOS/ LIMO Frame SCP12 ENGINE 2SZFE… PV6 · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

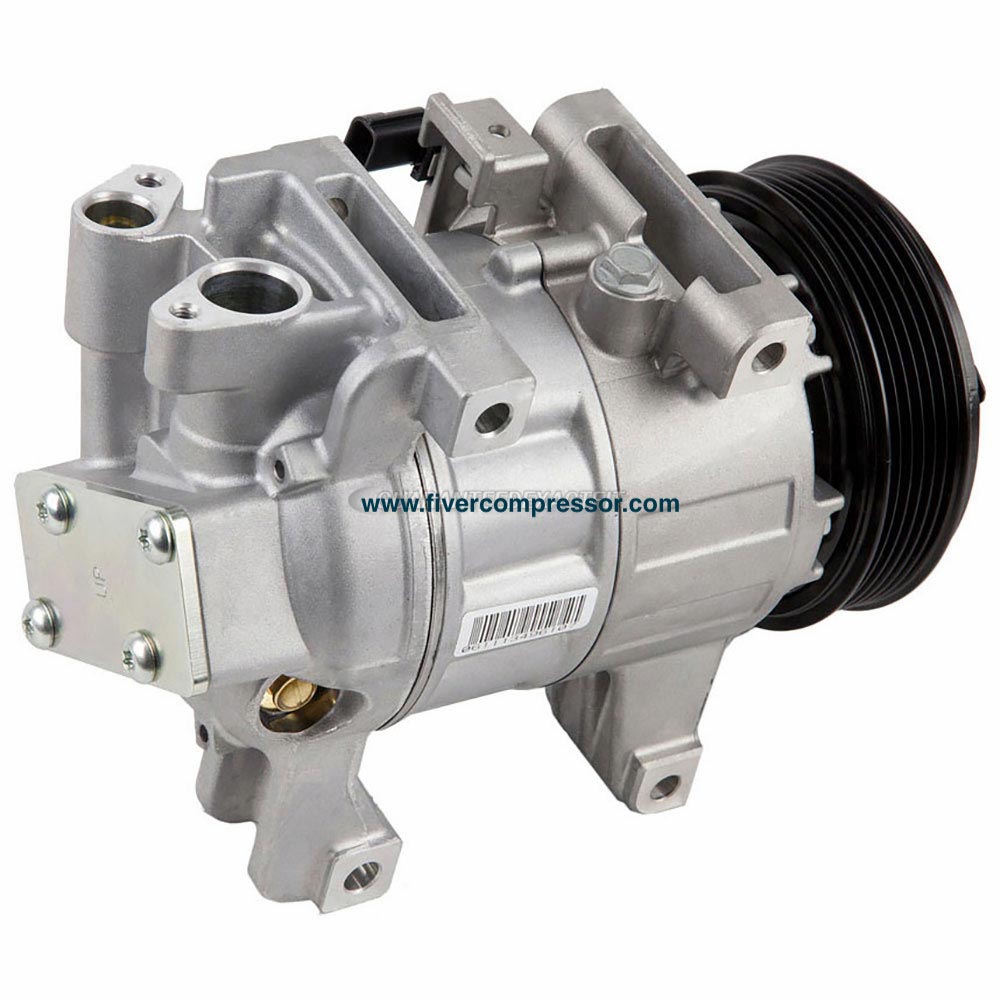

Toyota 5SE09C A/C compressor

5SE09C PV6 A/C Compressor 447180-5940, 447220-8465,88310-0D070, 88310-0D140 for Toyota YARIS/ ECHO/ VIOS/ LIMO Frame SCP12 ENGINE 2SZFE 2002-2005

OE / Part number
447180-5940, 447220-8465, 88310-0D070, 88310-0D140, 88310-0D141, 883100D070, 883100D071, 883100D140, 883100D141, 8831052201, 88310-0D071, 88310-52201, 0D070, 0D071, 0D140, 0D141

5SE09C PV6 A/C Compressor 447180-5940, 447220-8465,88310-0D070, 88310-0D140 for Toyota YARIS/ ECHO/ VIOS/ LIMO Frame SCP12 ENGINE 2SZFE 2002-2005 — aftermarket A/C compressor OE 447180-5940 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type5SE09C
GroovePV6

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type5SE09C
GroovePV6
Coil Voltage12V
OE / Part number447180-5940, 447220-8465, 88310-0D070, 88310-0D140, 88310-0D141, 883100D070, 883100D071, 883100D140, 883100D141, 8831052201, 88310-0D071, 88310-52201, 0D070, 0D071, 0D140, 0D141
ApplicationApplications: TOYOTA

§ 04

Product details

5SE09C PV6 A/C Compressor 447180-5940, 447220-8465,88310-0D070, 88310-0D140 for Toyota YARIS/ ECHO/ VIOS/ LIMO Frame SCP12 ENGINE 2SZFE 2002-2005


Specifications:

Compressor type: 5SE09C

Grooves: 6PK

Pulley Diameter: 120mm

Oil Type:: PAG 46

Refrigerant: R134A


Applications:

TOYOTA

YARIS/ ECHO/ VIOS/ LIMO


SCP12L-CGMGKW | SCP12L-CGPGKW | SCP12L-CHMGKW | SCP12L-CHPGKW | SCP12R-CGMGKW | SCP12R-CHMGKW | SCP12R-CHPGKW | SCP12L-CGMGKW | SCP12L-CGPGKW |

SCP12L-CHMGKW | SCP12L-CHPGKW | SCP12R-CGMGKW | SCP12R-CGPGKW | SCP12R-CHMGKW | SCP12R-CHPGKW | FrameSCP12gradeSOL | ENGINE2SZFE | 05.2002To11.2005 |


SCP12L-CGMNKW | SCP12L-CHMNKW | SCP12R-CGMNKW | SCP12R-CHMNKW | SCP12L-CGMNKW | SCP12L-CHMNKW | SCP12R-CHMNKW | FrameSCP12gradeLUNA | ENGINE2SZFE | 05.2002To11.2005 |


Part No.
883100D070,883100D071,883100D140,883100D141,8831052201,88310-0D070,88310-0D071,88310-0D140,88310-0D141,88310-52201,88310 0D070,88310 0D071,88310 0D140,88310 0D141,88310 52201
Denso
4472208465,4472602034,4472209465,4472209461,4471805940,4472209463,447220-8465,447260-2034,447220-9465,447220-9461,447180-5940,447220-9463
