Toyota A/C compressor

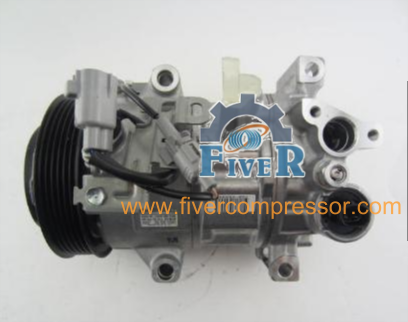

2014-2016 Toyota Corolla Air Conditioning Compressor - Toyota 88320-0Z070/88320-0Z060
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

2014-2016 Toyota Corolla Air Conditioning Compressor - Toyota 88320-0Z070/88320-0Z060

OE / Part number
88320-0Z060, 88320-0Z070, 7513375

This Compressor is a OE equivalent replacement for 2014-2016 Toyota Corolla L, LE, LE Eco, S 1.8L L4. 100% tested quality assured

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

model6SAS14C
OE / Part number88320-0Z060, 88320-0Z070, 7513375
ApplicationModel: 6SAS14C

§ 03

Product details

 Air Conditioning Compressor 88320-0Z070/88320-0Z060 for Toyota Corolla L, LE, LE Eco, S. 1.8L L4. 2014-2016


VEHICLE FITMENT

Make Body & Trim




2016 Toyota CorollaL, LE, LE Eco, S, Special Edition1.8L L4 - Gas
2015 Toyota CorollaL, LE, LE Eco, S1.8L L4 - Gas
2014 Toyota CorollaL, LE, LE Eco, Le Eco Plus, S1.8L L4 - Gas

Specification:

Compressor ID: 6SAS14C

Clutch diameter : mm

Belt-Type: 6PK

 Refrigerant: R134a

 Voltage: 12V

Replacement OE:

16003993-101 16003993-102 16003993101 16003993102 88320 0Z060 88320-0Z060 88320-0Z070 883200Z060 883200Z070 60-03993NC
